HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

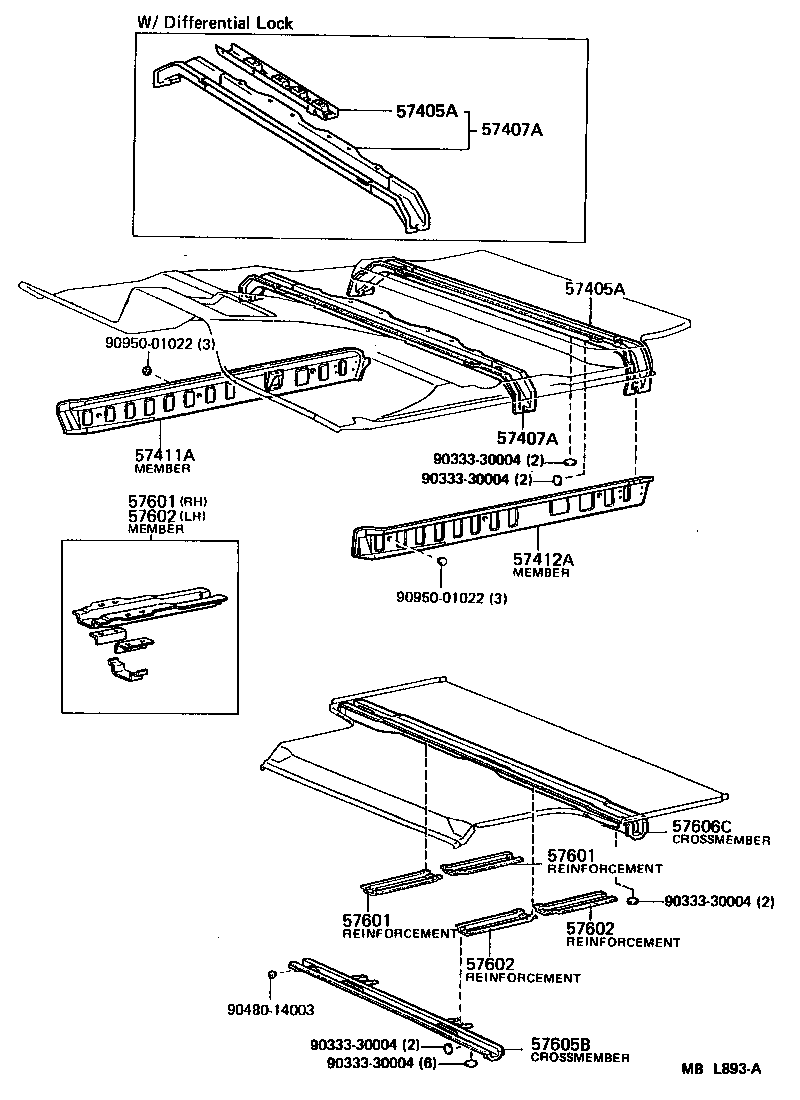

Click highlighted areas on diagram

diagram 57405A 57405A 57407A 57407A 57411A 57412A 57601 57601 57601 57602 57602 57602 57605B 57606C 9033330004 9033330004 9033330004 9033330004 9033330004 9048014003 9095001022 9095001022
Part # Description Qty Price
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-90A07

FJ62,HJ6#

 1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-90A07

FJ62,HJ6#

 1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-90A43

FJ62,HJ6#

 1
57407-90A46

HJ60..STD

W(DEFFERENTIAL LOCK)

 1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-90A43

FJ62,HJ6#

 1
57407-90A46

HJ60..STD

W(DEFFERENTIAL LOCK)

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-90A05

FJ62,HJ6#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-90A05

FJ62,HJ6#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57635-90A03

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 2
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57635-90A03

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 2
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57635-90A03

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 2
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57635-90A03

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 2
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57635-90A03

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 2
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57635-90A03

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 2
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-90A02

FJ62,HJ6#

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-90A09

HJ60..HRF..SOB;FJ62,HJ6#..SRF..(GX,STD)

 1
Common parts
90333-30004
90480-14003
90950-01022
