HJ60LG-MRCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-90A02 |
FJ62,HJ6# |
1 | ||
| 52111-90A04 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(WINCH) |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-90A02 |
FJ62,HJ6# |
1 | ||
| 52111-90A04 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(WINCH) |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-90A00 |
FJ62,HJ6# |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-90A00 |
FJ62,HJ6# |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-90A00 |
FJ62,HJ6# |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-90A00 |
FJ62,HJ6# |
1 | ||
| 52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-90A00 |
HJ60..STD |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-90A00 |
HJ60..STD |
1 | ||
| 52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52140-90A00 |
HJ60..STD |
1 | ||
| 52141A - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-60050 |
FJ62,HJ6# |
1 | ||
| 52142A - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-60040 |
FJ62,HJ6# |
1 | ||
| 52337 - STAY, FRONT BUMPER STEP, RH | ||||
| 52337-90A01 |
HJ60..STD |
1 | ||
| 52338 - STAY, FRONT BUMPER STEP, LH | ||||
| 52338-90A01 |
HJ60..STD |
1 | ||
| 52341 - STEP, FRONT BUMPER, RH | ||||
| 52341-90A02 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(MECHANICAL) |
1 | ||
| 52342 - STEP, FRONT BUMPER, LH | ||||
| 52342-90A02 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(MECHANICAL) |
1 | ||
| Common parts | ||||
| 90112-12041 | ||||
| 90119-08503 | ||||
| 90119-12161 | ||||
| 90179-08146 | ||||
| 90179-12058 | ||||
| 91611-61025 | ||||
| 91619-61225 | ||||
| 91619-61235 | ||||
| 91621-40816 | ||||
| 91651-41016 | ||||
| 91659-41230 | ||||
| 91659-61225 | ||||
| 94110-51000 | ||||
| 94115-51200 | ||||
| 94115-71200 | ||||
(8708- )

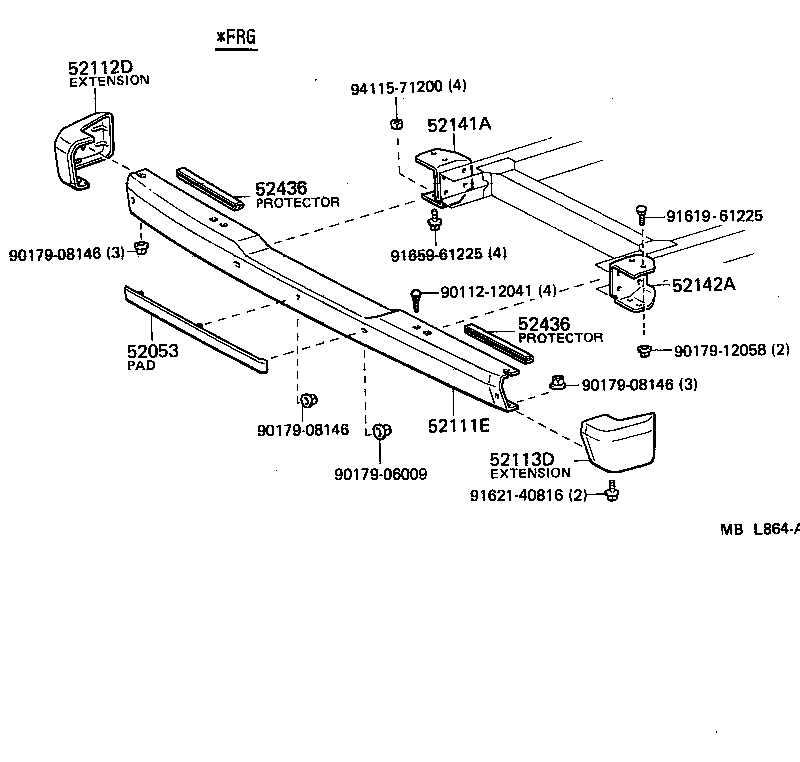

Click highlighted areas on diagram
*FRG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-90A02 |
FJ62,HJ6# |
1 | ||
| 52111-90A04 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(WINCH) |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-90A00 |
FJ62,HJ6# |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-90A00 |
FJ62,HJ6# |
1 | ||
| 52141A - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-60050 |
FJ62,HJ6# |
1 | ||
| 52142A - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-60040 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90112-12041 | ||||
| 90179-06009 | ||||
| 90179-08146 | ||||
| 90179-12058 | ||||
| 91619-61225 | ||||
| 91621-40816 | ||||
| 91659-61225 | ||||
| 94115-71200 | ||||
