HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

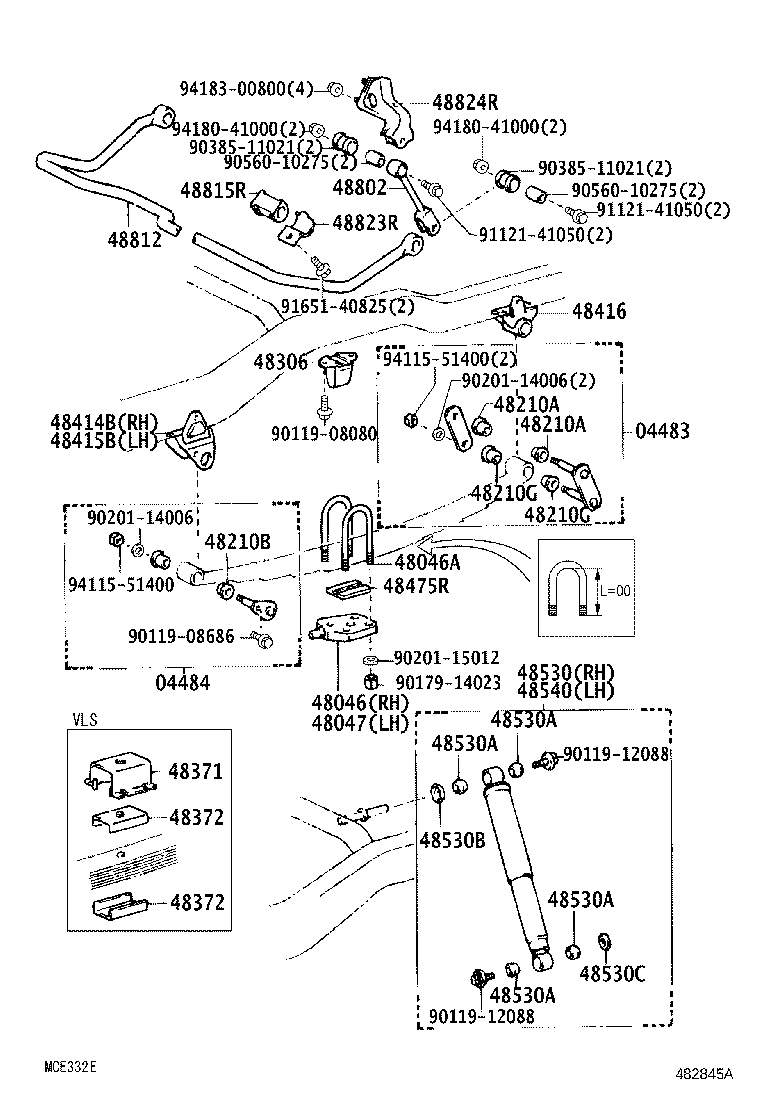

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210G 48210G 48306 48371 48372 48372 48414B 48415B 48416 48475R 48530 48530A 48530A 48530A 48530A 48530B 48530C 48540 48802 48812 48815R 48823R 48824R 9011908080 9011908686 9011912088 9011912088 9017914023 9020114006 9020114006 9020115012 9038511021 9038511021 9056010275 9056010275 9112141050 9112141050 9165140825 9411551400 9411551400 9418041000 9418041000 9418300800
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-60050

FJ62,HJ6#

 2
04484 - PIN KIT, REAR SPRING
04482-60040

FJ62,HJ6#

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-60042

HJ60..STD

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14021

HJ60..STD

L=190

 1
90117-14179

HJ60..STD

L=195

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-60042

HJ60..STD

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90389-18002

FJ62,HJ6#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90389-18002

FJ62,HJ6#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90389-18002

FJ62,HJ6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90389-18002

FJ62,HJ6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90389-18002

FJ62,HJ6#

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-60030

FJ62,HJ6#

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-60042

FJ62,HJ6#

 1
48415B - BRACKET, SPRING, NO.3 LH
48415-60042

FJ62,HJ6#

 1
48416 - BRACKET, SPRING, NO.4
48416-60030

FJ62,HJ6#

 2
48475R - PLATE, DISTANCE(FOR REAR)
48475-60020

HJ60..STD

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-69115

HJ60..STD

MARK 48531-60220

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003

HJ60..STD

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003

HJ60..STD

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003

HJ60..STD

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003

HJ60..STD

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

FJ62,HJ6#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03011

FJ62,HJ6#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48541-69035

HJ60..STD

MARK 48541-60040

 1
Common parts
90119-08080
90119-08686
90119-12088
90179-14023
90201-14006
90201-15012
90385-11021
90560-10275
91121-41050
91651-40825
94115-51400
94180-41000
94183-00800

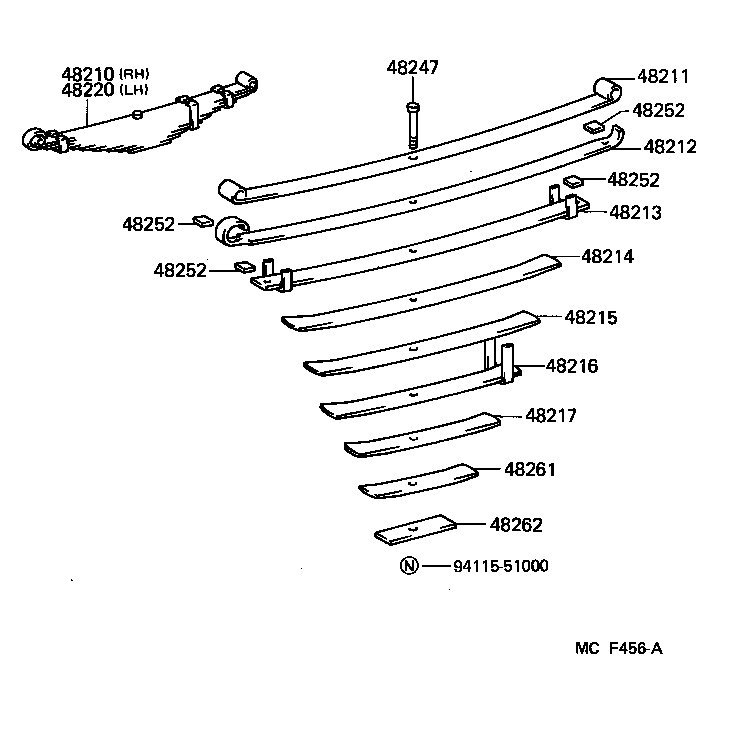

ILLUST NO. 2 OF 2(8708- )STD

Click highlighted areas on diagram

diagram 48210 48211 48212 48213 48214 48215 48216 48217 48220 48247 48252 48252 48252 48252 48261 48262 9411551000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-60441

HJ60..STD

 1
48210-60440

HJ60..STD

 1
48211 - LEAF, REAR SPRING, NO.1
48211-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48211-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48212 - LEAF, REAR SPRING, NO.2
48212-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48212-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48213 - LEAF, REAR SPRING, NO.3
48202-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48202-60441

HJ60..STD

PASSENGER SEAT SIDE

 1
48202-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48214 - LEAF, REAR SPRING, NO.4
48214-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48214-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48214-60441

HJ60..STD

PASSENGER SEAT SIDE

 1
48215 - LEAF, REAR SPRING, NO.5
48215-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48215-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48215-60441

HJ60..STD

PASSENGER SEAT SIDE

 1
48216 - LEAF, REAR SPRING, NO.6
48216-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48216-60441

HJ60..STD

PASSENGER SEAT SIDE

 1
48216-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48217 - LEAF, REAR SPRING, NO.7
48203-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48203-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48203-60441

HJ60..STD

PASSENGER SEAT SIDE

 1
48220 - SPRING ASSY, REAR LH
48210-60520

HJ60..STD

 1
48210-60521

HJ60..STD

 1
48247 - BOLT, REAR SPRING, CENTER
48147-27020

HJ60..STD

 2
48247-60441

HJ60..STD

 2
48252 - SILENCER, REAR SPRING
48252-26070

HJ60..STD

 8
48252 - SILENCER, REAR SPRING
48252-26070

HJ60..STD

 8
48252 - SILENCER, REAR SPRING
48252-26070

HJ60..STD

 8
48252 - SILENCER, REAR SPRING
48252-26070

HJ60..STD

 8
48261 - LEAF, REAR HELPER SPRING, NO.1
48218-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48218-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48218-60441

HJ60..STD

PASSENGER SEAT SIDE

 1
48262 - LEAF, REAR HELPER SPRING, NO.2
48219-60441

HJ60..STD

PASSENGER SEAT SIDE

 1
48219-60520

HJ60..STD

DRIVER'S SEAT SIDE

 1
48219-60440

HJ60..STD

PASSENGER SEAT SIDE

 1
48219-60521

HJ60..STD

DRIVERS SEAT SIDE

 1
Common parts
94115-51000
