HJ60LG-MRCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

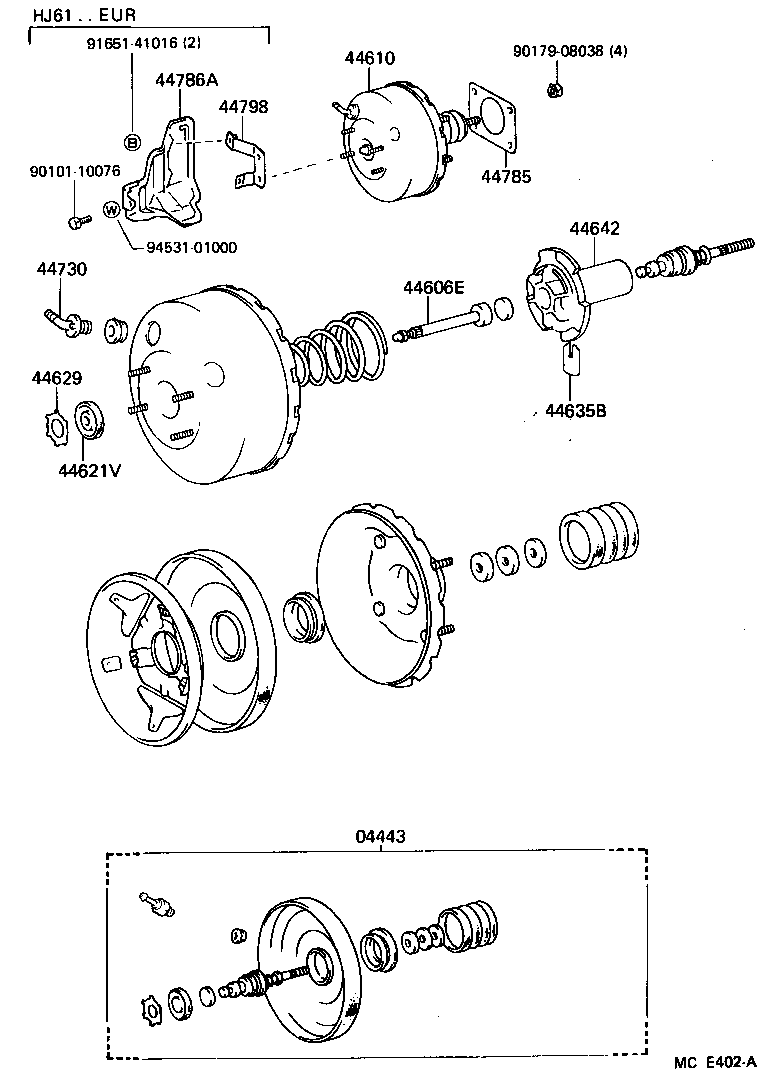

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-60241 |
HJ6# |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
HJ6# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60421 |
HJ6#..LHD |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
HJ6# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
HJ6# |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-28120 |
HJ6# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-60450 |
HJ6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
HJ6#..MTM |
1 | ||
| 44730-60050 |
HJ6#..MTM |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91651-41016 | ||||
| 94531-01000 | ||||
| 99101-10076 | ||||

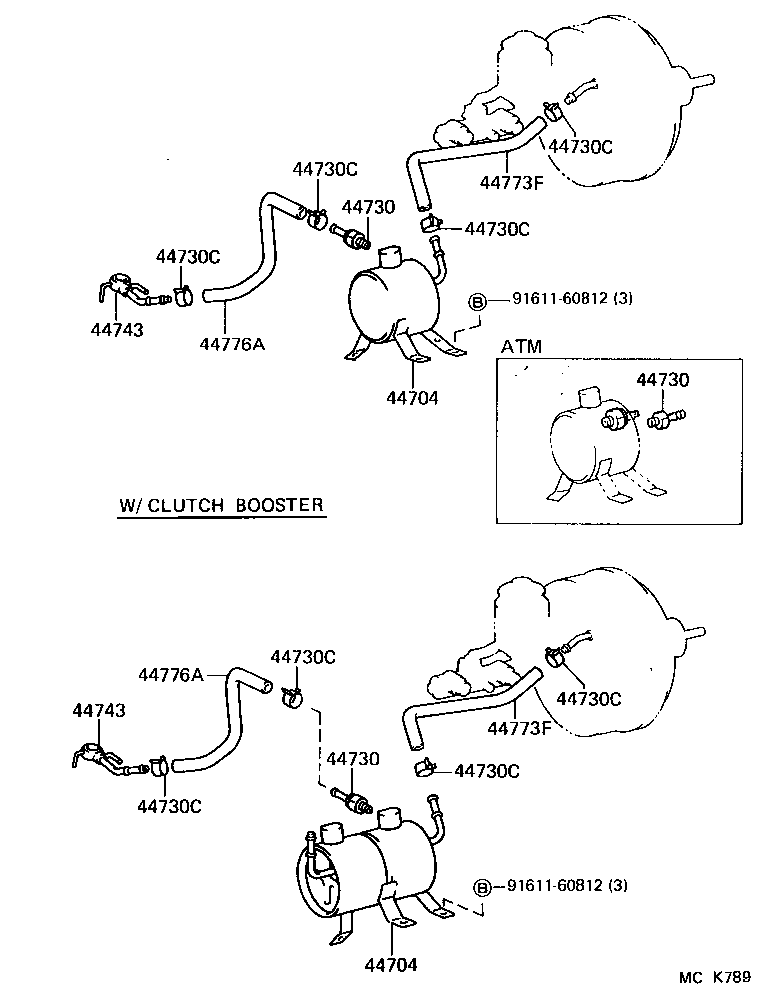

ILLUST NO. 2 OF 2(8708- )HJ6#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-60140 |
HJ6#..LHD..MTM |
1 | ||
| 44704-60130 |
HJ60..SOB W(CLUTCH BOOSTER) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-60140 |
HJ6#..LHD..MTM |
1 | ||
| 44704-60130 |
HJ60..SOB W(CLUTCH BOOSTER) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
HJ6#..MTM |
1 | ||
| 44730-60050 |
HJ6#..MTM |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
HJ6#..MTM |
1 | ||
| 44730-60050 |
HJ6#..MTM |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
HJ6#..MTM |
1 | ||
| 44730-60050 |
HJ6#..MTM |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..LHD |
4 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09115 |
HJ60..SOB;HJ60..RHD W(*ELC) |
1 | ||
| 90405-09116 |
HJ60 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09115 |
HJ60..SOB;HJ60..RHD W(*ELC) |
1 | ||
| 90405-09116 |
HJ60 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44771-60040 |
HJ6#..LHD..MTM |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44771-60040 |
HJ6#..LHD..MTM |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44771-60040 |
HJ6#..LHD |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44771-60040 |
HJ6#..LHD |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
