HJ60LG-MRCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

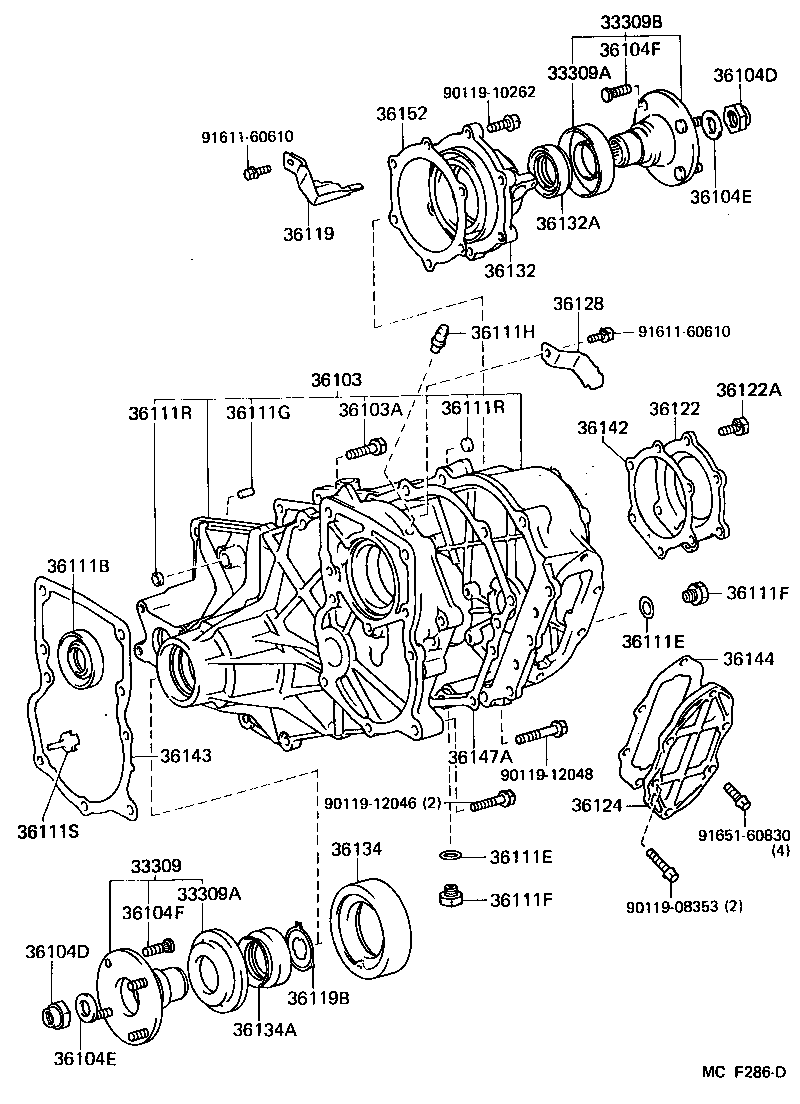

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-60070 |
FJ62,HJ6# |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60010 |
FJ62,HJ6# FR |
1 | ||
| 33325-60021 |
FJ62,HJ6# RR |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60010 |
FJ62,HJ6# FR |
1 | ||
| 33325-60021 |
FJ62,HJ6# RR |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-60041 |
FJ62,HJ6# |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-60140 |
HJ6#..MTM |
1 | ||
| 36103-60150 |
HJ60..STD W(*ELC) |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 91651-61030 |
FJ62,HJ6# *10-1.25PX30-30 |
3 | ||
| 91651-61040 |
FJ62,HJ6# *10-1.25PX40-30 |
8 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22005 |
FJ62,HJ6# |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22005 |
FJ62,HJ6# |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-22005 |
FJ62,HJ6# |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-22005 |
FJ62,HJ6# |
2 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-11124 |
FJ62,HJ6# |
8 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-11124 |
FJ62,HJ6# |
8 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
FJ62,HJ6# |
1 | ||
| 90311-48012 |
HJ6#..MTM |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FJ62,HJ6# |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FJ62,HJ6# |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18057 |
FJ62,HJ6# DRAIN PLUG |
1 | ||
| 90341-18006 |
FJ62,HJ6# FILLER PLUG |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18057 |
FJ62,HJ6# DRAIN PLUG |
1 | ||
| 90341-18006 |
FJ62,HJ6# FILLER PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
FJ62,HJ6# L=24,0D=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03075 |
FJ62,HJ6# |
1 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 96411-11600 |
FJ62,HJ6# |
2 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 96411-11600 |
FJ62,HJ6# |
2 | ||
| 36111S - PIPE, OIL RECEIVER | ||||
| 33124-36010 |
HJ6#..MTM |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-60010 |
FJ62,HJ6# |
1 | ||
| 36119B - RECEIVER, TRANSFER OIL, NO.2 | ||||
| 36119-60030 |
FJ62,HJ6# |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-60040 |
FJ62,HJ6# |
1 | ||
| 36122A - BOLT (FOR TRANSFER CASE)COVER NO.2 | ||||
| 91611-61020 |
FJ62,HJ6# |
6 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 36124-60020 |
FJ62,HJ6# |
1 | ||
| 36128 - DEFLECTOR, BREATHER OIL | ||||
| 36128-60021 |
FJ62,HJ6# |
1 | ||
| 36132 - RETAINER, OUTPUT SHAFT BEARING, REAR NO.1 | ||||
| 36132-60020 |
FJ62,HJ6# |
1 | ||
| 36132A - SEAL, OIL (FOR OUTPUT SHAFT RETAINER) | ||||
| 90311-48010 |
FJ62,HJ6# |
1 | ||
| 36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT | ||||
| 36134-60020 |
FJ62,HJ6# |
1 | ||
| 36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER) | ||||
| 90311-48009 |
FJ62,HJ6# |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36142-60030 |
FJ62,HJ6# |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 33142-60030 |
HJ6#..MTM |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 36144-60020 |
FJ62,HJ6# |
1 | ||
| 36147A - GASKET, TRANSFER CASE | ||||
| 36143-60020 |
FJ62,HJ6# |
1 | ||
| 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER | ||||
| 36152-60030 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90119-08353 | ||||
| 90119-10262 | ||||
| 90119-12046 | ||||
| 90119-12048 | ||||
| 91611-60610 | ||||
| 91651-60830 | ||||
