HJ60LG-MRCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8708- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04318 - BOOSTER KIT, CLUTCH | ||||
| 04318-60030 |
HJ6#..MTM |
1 | ||
| 31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER | ||||
| 31440-60050 |
HJ6#..LHD..MTM |
1 | ||
| 31440E - SEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER) | ||||
| 44621-28120 |
HJ6#..MTM |
1 | ||
| 31440G - RING, E(FOR CLUTCH BOOSTER AIR VALVE) | ||||
| 96160-01000 |
HJ6#..MTM |
1 | ||
| 31440M - ROD SUB-ASSY, CLUTCH BOOSTER PISTON | ||||
| 44606-12520 |
HJ6#..MTM |
1 | ||
| 31440Q - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-14010 |
HJ6#..MTM W(CLUTCH BOOSTER) |
1 | ||
| 31440R - RING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE) | ||||
| 44628-28120 |
HJ6#..MTM |
1 | ||
| 31440S - KEY, VALVE STOPPER(FOR CLUTCH BOOSTER) | ||||
| 44635-12480 |
HJ6#..MTM |
1 | ||
| 31440T - PISTON, BOOSTER(FOR CLUTCH BOOSTER) | ||||
| 44642-87502 |
HJ6#..MTM |
1 | ||
| 31440U - ROD, VALVE OPERATING(FOR CLUTCH BOOSTER) | ||||
| 44646-60050 |
HJ6#..MTM |
1 | ||
| 31449 - COVER, CLUTCH BOOSTER PISTON | ||||
| 31449-60010 |
HJ6#..MTM |
1 | ||
| 31458 - BOOT, CLUTCH BOOSTER PISTON COVER | ||||
| 31458-60010 |
HJ6#..MTM |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||

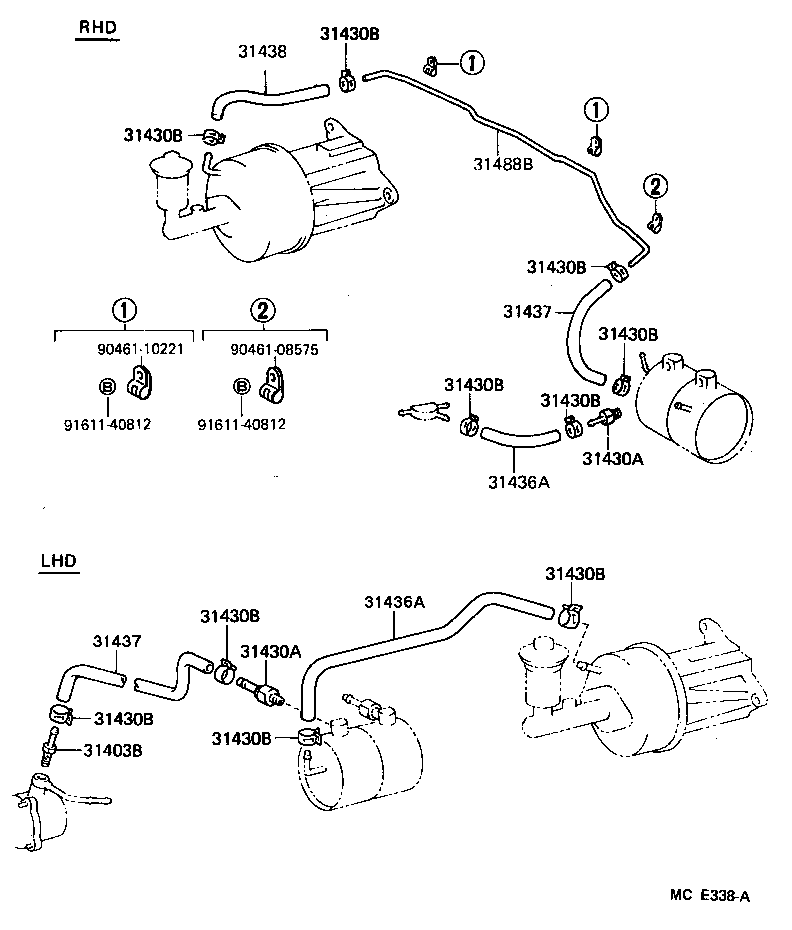

ILLUST NO. 2 OF 2(8708- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31403B - UNION(FOR VACUUM PUMP) | ||||
| 90404-09008 |
HJ6#..LHD..MTM |
1 | ||
| 31430A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM) | ||||
| 44730-60040 |
HJ6#..MTM |
1 | ||
| 44730-60050 |
HJ60..SOB;HJ60..RHD |
1 | ||
| 31430A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM) | ||||
| 44730-60040 |
HJ6#..MTM |
1 | ||
| 44730-60050 |
HJ60..SOB;HJ60..RHD |
1 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
HJ6#..LHD..MTM |
4 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31438-60010 |
HJ6#..LHD..MTM |
1 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31438-60010 |
HJ6#..LHD..MTM |
1 | ||
| 31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31437-60100 |
HJ6#..LHD..MTM |
1 | ||
| 31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31437-60100 |
HJ6#..LHD..MTM |
1 | ||
| Common parts | ||||
| 90461-08575 | ||||
| 90461-10221 | ||||
| 91611-40812 | ||||
