Toyota Land cruiser HJ60 CLUTCH MASTER CYLINDER

Manufacturers Home
Toyota
EU
LAND CRUISER
HJ60LG-MRCW (1987)
3103 - CLUTCH MASTER CYLINDER

HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990

Engine 2H

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

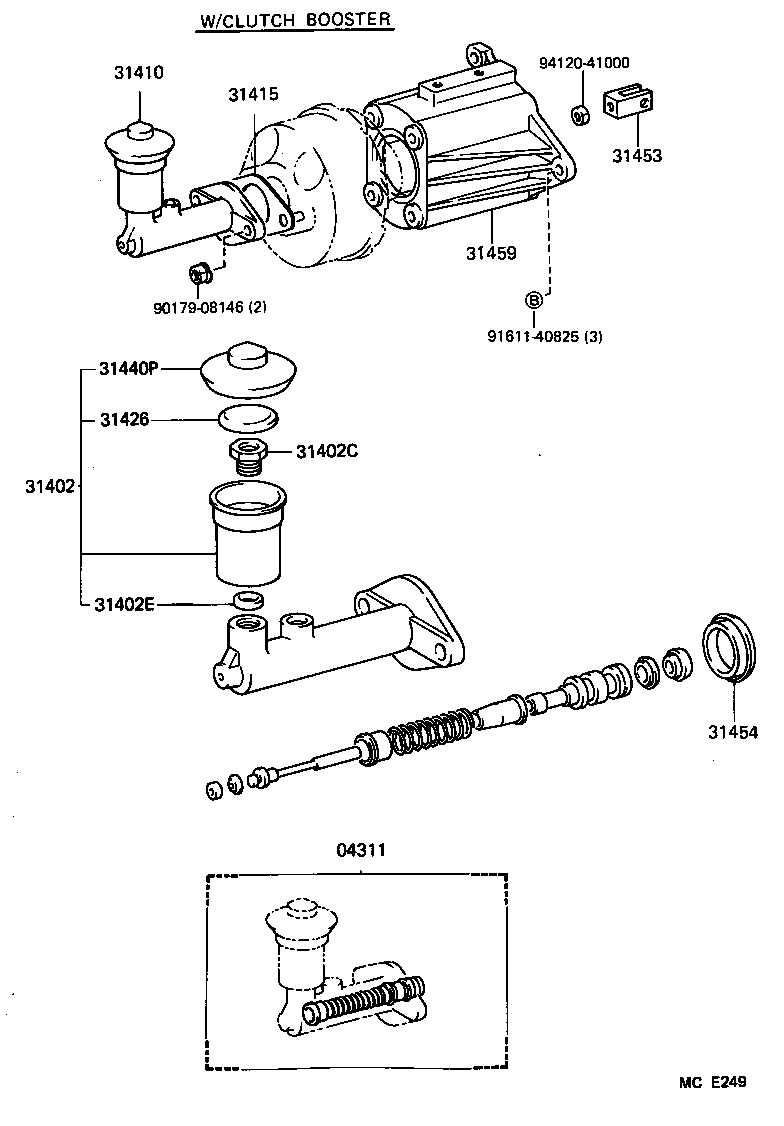

(8708- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60051	HJ6#..MTM	02/1988 - 01/1990	1
04311-60042	HJ6#..MTM W(CLUTCH BOOSTER)	02/1988 - 01/1990	1
04311-60050	HJ6#..MTM	08/1987 - 02/1988	1
04311-60041	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 02/1988	1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-20010	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 01/1990	1
31402-30030	HJ6#..MTM	08/1987 - 01/1990	1
31402C - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-20010	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 01/1990	1
47231-30010	HJ6#..MTM	08/1987 - 01/1990	1
31402E - RING(FOR CLUTCH MASTER CYLINDER RESERVOIR)
90562-18151	HJ6#..MTM	08/1987 - 01/1990	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-60021	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 10/1987	1
31410-60281	HJ6#..MTM	10/1987 - 05/1988	1
31410-60280	HJ6#..MTM	08/1987 - 10/1987	1
31401-60022	HJ6#..MTM W(CLUTCH BOOSTER)	10/1987 - 01/1990	1
31410-60282	HJ6#..MTM	05/1988 - 01/1990	1
31415 - GASKET, CLUTCH MASTER CYLINDER
47275-14010	HJ6#..MTM	08/1987 - 01/1990	1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011	HJ6#..MTM	08/1987 - 01/1990	1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040	HJ6#..MTM	08/1987 - 01/1990	1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-35010	HJ6#..MTM	08/1987 - 01/1990	1
31454 - BOOT, CLUTCH MASTER CYLINDER
47265-20050	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 01/1990	1
31454-30030	HJ6#..MTM	08/1987 - 01/1990	1
31459 - BRACKET, CLUTCH MASTER CYLINDER
31459-60020	HJ6#..LHD..MTM	08/1987 - 01/1990	1
Common parts
90179-08146
91611-40825
94120-41000

(8708- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60051	HJ6#..MTM	02/1988 - 01/1990	1
04311-60042	HJ6#..MTM W(CLUTCH BOOSTER)	02/1988 - 01/1990	1
04311-60050	HJ6#..MTM	08/1987 - 02/1988	1
04311-60041	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 02/1988	1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-20010	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 01/1990	1
31402-30030	HJ6#..MTM	08/1987 - 01/1990	1
31402C - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-20010	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 01/1990	1
47231-30010	HJ6#..MTM	08/1987 - 01/1990	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-60021	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 10/1987	1
31410-60281	HJ6#..MTM	10/1987 - 05/1988	1
31410-60280	HJ6#..MTM	08/1987 - 10/1987	1
31401-60022	HJ6#..MTM W(CLUTCH BOOSTER)	10/1987 - 01/1990	1
31410-60282	HJ6#..MTM	05/1988 - 01/1990	1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
90116-08022	HJ6#..MTM	08/1987 - 01/1990	1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011	HJ6#..MTM	08/1987 - 01/1990	1
31431A - WASHER, RESERVOIR SET BOLT
47232-30010	HJ6#..MTM	08/1987 - 01/1990	1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040	HJ6#..MTM	08/1987 - 01/1990	1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-60050	HJ6#..MTM	08/1987 - 01/1990	1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-35010	HJ6#..MTM	08/1987 - 01/1990	1
31454 - BOOT, CLUTCH MASTER CYLINDER
47265-20050	HJ6#..MTM W(CLUTCH BOOSTER)	08/1987 - 01/1990	1
31454-30030	HJ6#..MTM	08/1987 - 01/1990	1
Common parts
90179-08038
94120-40800
94613-10800

HJ60LG-MRCW (1987)

(8708- )MTM

(8708- )MTM
