HJ60LG-MNZW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LHD..MTM..LUB..GX

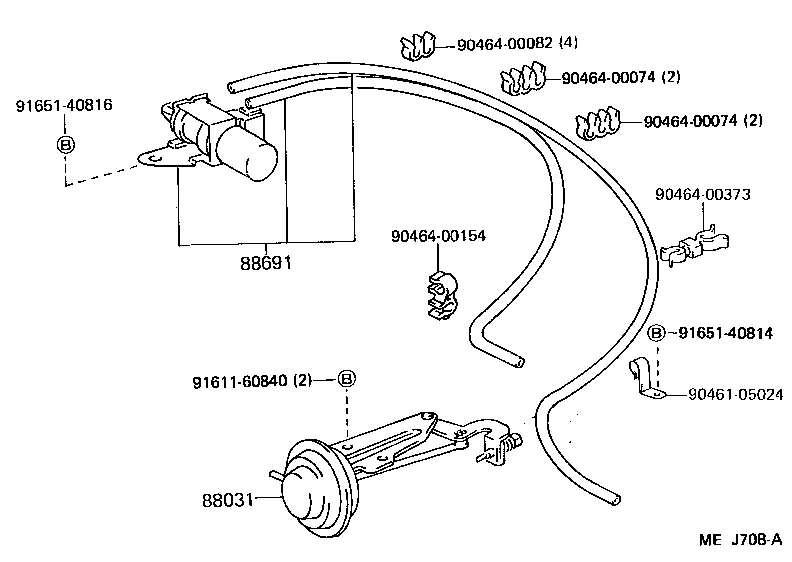

Click highlighted areas on diagram

diagram 88031 88691 9046105024 9046400074 9046400074 9046400082 9046400154 9046400373 9161160840 9165140814 9165140816
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-60030

HJ60..LHD..MTM..LUB

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-90A05

HJ60..HRF..LUB

CANARY ISLAND SPEC

 1
88690-90A09

HJ60..HRF..LUB

CANARY ISLAND SPEC & W(ONE TUCH 2-4 SELECTOR)

 1
Common parts
90461-05024
90464-00074
90464-00082
90464-00154
90464-00373
91611-60840
91651-40814
91651-40816
