HJ60LG-MNZW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

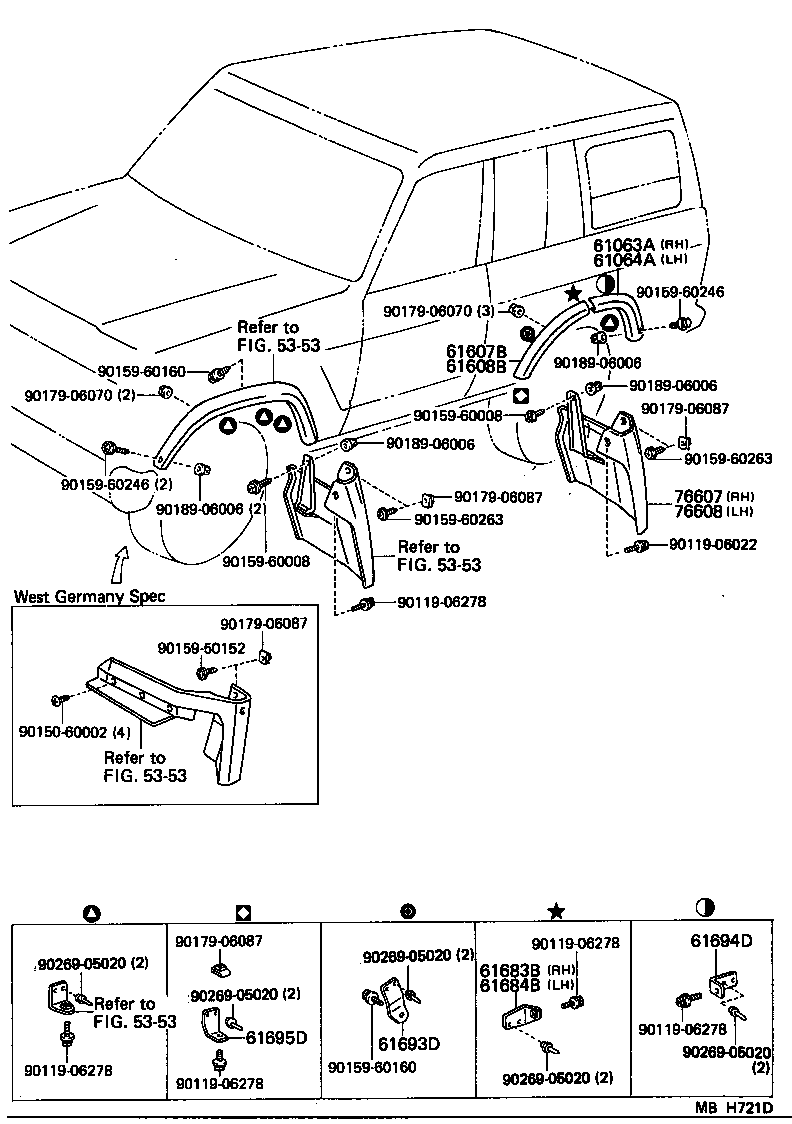

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 5353 5353 5353 5353 61063A 61064A 61607B 61608B 61683B 61684B 61693D 61694D 61695D 76607 76608 9011906022 9011906278 9011906278 9011906278 9011906278 9011906278 9015060002 9015950152 9015960008 9015960008 9015960160 9015960160 9015960246 9015960246 9015960263 9015960263 9017906070 9017906070 9017906087 9017906087 9017906087 9017906087 9018906006 9018906006 9018906006 9018906006 9026905020 9026905020 9026905020 9026905020 9026905020
Part # Description Qty Price
61063A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH
61063-90A00

HJ6#..LHD..(GX,VX)

 1
61064A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH
61064-90A00

HJ6#..LHD..(GX,VX)

 1
61607B - EXTENSION SUB-ASSY, REAR WHEEL OPENING, RH
61607-90A08

HJ6#..LHD..(GX,VX)

 1
61608B - EXTENSION SUB-ASSY, REAR WHEEL OPENING, LH
61608-90A04

HJ6#..LHD..(GX,VX)

 1
61683B - BRACKET, REAR WHEEL OPENING, NO.1 RH
61683-90A01

HJ6#..LHD..(GX,VX)

 1
61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH
61684-90A01

HJ6#..LHD..(GX,VX)

 1
61693D - BRACKET, REAR WHEEL OPENING, NO.1
61693-90A00

HJ6#..LHD..(GX,VX)

 2
61694D - BRACKET, REAR WHEEL OPENING, NO.2
61694-90A00

HJ6#..LHD..(GX,VX)

 2
61695D - BRACKET, REAR WHEEL OPENING, NO.3
61695-90A00

HJ6#..LHD..(GX,VX)

 2
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-69015

HJ60..LHD..MTM..GX

 1
76607-90A01

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-69015

HJ60..LHD..MTM..GX

 1
76608-90A01

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
Common parts
90119-06022
90119-06278
90150-60002
90159-50152
90159-60008
90159-60160
90159-60246
90159-60263
90179-06070
90179-06087
90189-06006
90269-05020
Linked diagrams
5353

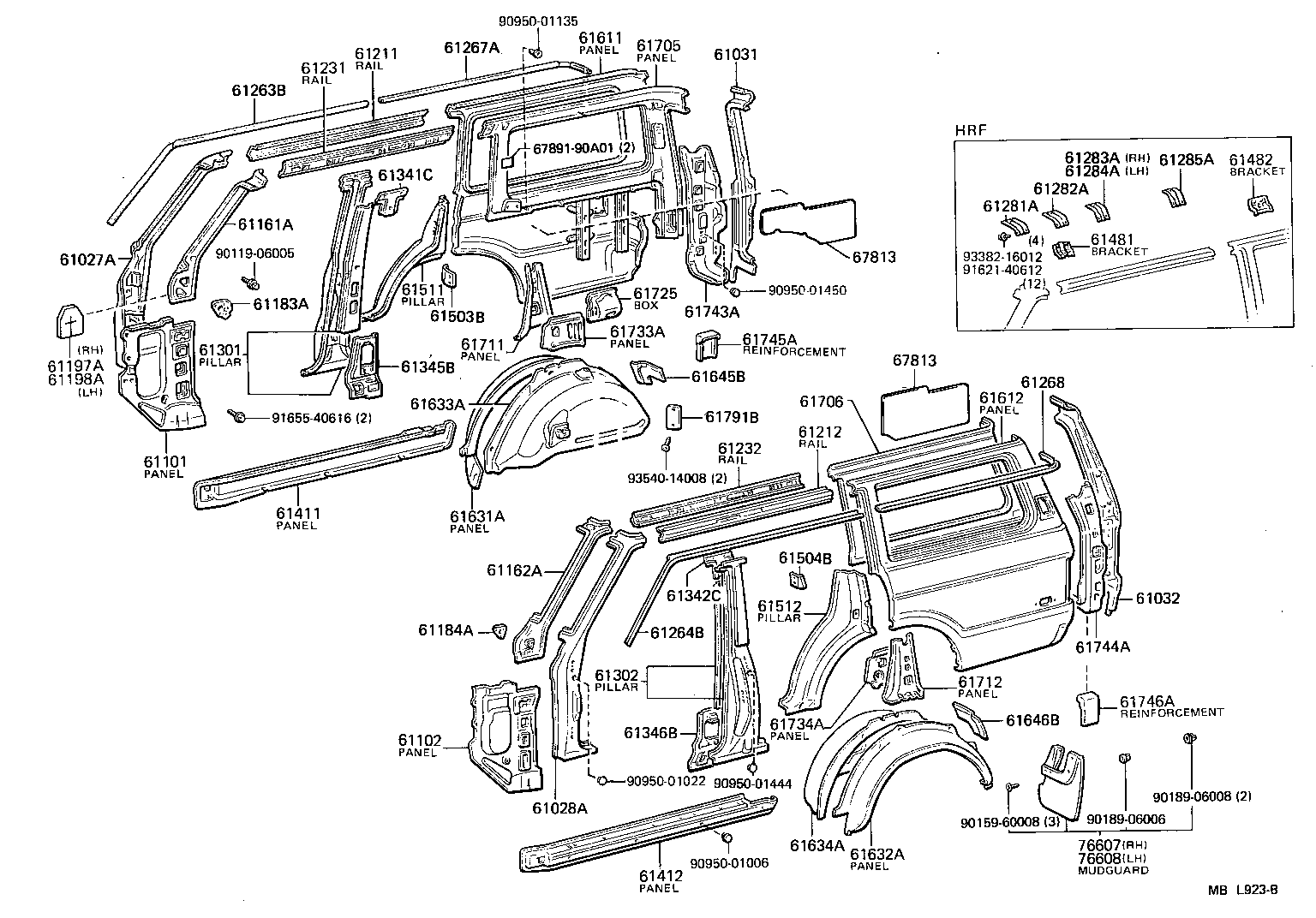

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 61027A 61028A 61031 61032 61101 61102 61161A 61162A 61183A 61184A 61197A 61198A 61211 61212 61231 61232 61263B 61264B 61267A 61268 61281A 61282A 61283A 61284A 61285A 61301 61302 61341C 61342C 61345B 61346B 61411 61412 61481 61482 61503B 61504B 61511 61512 61611 61612 61631A 61632A 61633A 61634A 61645B 61646B 61705 61706 61711 61712 61725 61733A 61734A 61743A 61744A 61745A 61746A 61791B 67813 67813 6789190A01 76607 76608 9011906005 9015960008 9018906006 9018906008 9095001006 9095001022 9095001135 9095001444 9095001450 9162140612 9165540616 9338216012 9354014008
Part # Description Qty Price
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-90A04

FJ62,HJ6#

 1
61027-90A10

HJ60..HRF

W(SUN ROOF)

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-90A04

FJ62,HJ6#

 1
61028-90A07

HJ60..HRF

W(SUN ROOF)

 1
61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH
61031-90A02

FJ62,HJ6#..LUB

 1
61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH
61032-90A00

FJ62,HJ6#..LUB

 1
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-90A08

FJ62,HJ6#

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-90A07

FJ62,HJ6#

 1
61161A - PILLAR, FRONT BODY, INNER RH
61161-90A03

FJ62,HJ6#

 1
61161-90A03

FJ62,HJ6#..LHD

 1
61162A - PILLAR, FRONT BODY, INNER LH
61162-90A03

FJ62,HJ6#

 1
61183A - BRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61183-90A01

FJ62,HJ6#

 1
61184A - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
61184-90A00

FJ62,HJ6#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-90A01

FJ62,HJ6#

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-90A01

FJ62,HJ6#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-90A03

FJ62,HJ6#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-90A02

FJ62,HJ6#

 1
61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH
61263-90A01

FJ62,HJ6#

 1
61264B - CHANNEL, ROOF DRIP SIDE, FRONT LH
61264-90A01

FJ62,HJ6#

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-90A00

FJ62,HJ6#

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-90A00

FJ62,HJ6#

 1
61281A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61281-90A00

HJ60..HRF

 2
61282A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2
61282-90A00

HJ60..HRF

 2
61283A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61283-90A00

HJ60..HRF..LUB

 1
61284A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61283-90A00

HJ60..HRF..LUB

 1
61285A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4
61285-90A00

HJ60..HRF

 2
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61330-90A04

FJ62,HJ6#

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61340-90A05

FJ62,HJ6#

 1
61341C - PILLAR, CENTER BODY, INNER UPPER RH
61341-90A00

FJ62,HJ6#

 1
61342C - PILLAR, CENTER BODY, INNER UPPER LH
61342-90A00

FJ62,HJ6#

 1
61345B - PILLAR, CENTER BODY, INNER LOWER RH
61345-90A00

FJ62,HJ6#

 1
61346B - PILLAR, CENTER BODY, INNER LOWER LH
61346-90A00

FJ62,HJ6#

 1
61411 - PANEL, ROCKER, OUTER RH
61401-90A06

FJ62,HJ6#

 1
61412 - PANEL, ROCKER, OUTER LH
61402-90A06

FJ62,HJ6#

 1
61481 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.1
61481-90A01

HJ60..HRF

W(SUN ROOF)

 4
61481-90A00

HJ60..HRF

 1
61482 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.2
61482-90A00

HJ60..HRF

 1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61503-90A00

FJ62,HJ6#

 1
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61504-90A00

FJ62,HJ6#

 1
61511 - PILLAR, QUARTER LOCK, RH
61511-90A01

FJ62,HJ6#

 1
61512 - PILLAR, QUARTER LOCK, LH
61512-90A01

FJ62,HJ6#

 1
61611 - PANEL, QUARTER, RH
61611-90A15

FJ62,HJ6#

 1
61611-90A18

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
61612 - PANEL, QUARTER, LH
61612-90A12

FJ62,HJ6#

 1
61612-90A15

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-90A05

HJ60..HRF

W(SUN ROOF)

 1
61631-90A03

FJ62,HJ6#

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-90A03

FJ62,HJ6#

 1
61632-90A05

HJ60..HRF

W(SUN ROOF)

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-90A07

HJ60..HRF..LUB

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-90A03

HJ60..HRF..LUB

 1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-90A00

FJ62,HJ6#

 1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-90A00

FJ62,HJ6#

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-90A33

HJ60..HRF..LUB

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-90A70

HJ60..HRF..LUB

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-90A01

FJ62,HJ6#

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-90A01

FJ62,HJ6#

 1
61725 - BOX, FUEL INLET
61709-90A02

HJ6#..LHD..(GX,VX)

W(FUEL LID OPENER)

 1
61709-90A01

FJ62,HJ6#

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-90A03

HJ61..VX;HJ60..HRF

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-90A01

HJ61..VX;HJ60..HRF;FJ62..LUB

 1
61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH
61743-90A02

FJ62,HJ6#..LUB

 1
61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH
61034-90A00

FJ62,HJ6#..LUB

 1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-90A01

FJ62,HJ6#

 1
61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61746-90A01

FJ62,HJ6#

 1
61791B - COVER, ROOF SIDE INNER SERVICE HOLE
61791-90B01

FJ62,HJ6#

 2
67813 - PAD, QUARTER PANEL SILENCER
67813-90A00

FJ62,HJ6#

RH

 1
67814-90A00

FJ62,HJ6#

LH

 1
67813 - PAD, QUARTER PANEL SILENCER
67813-90A00

FJ62,HJ6#

RH

 1
67814-90A00

FJ62,HJ6#

LH

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-69015

HJ60..LHD..MTM..GX

 1
76607-90A01

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-69015

HJ60..LHD..MTM..GX

 1
76608-90A01

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
Common parts
67891-90A01
90119-06005
90159-60008
90189-06006
90189-06008
90950-01006
90950-01022
90950-01135
90950-01444
90950-01450
91621-40612
91655-40616
93382-16012
93540-14008
