HJ60LG-MNZW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LHD

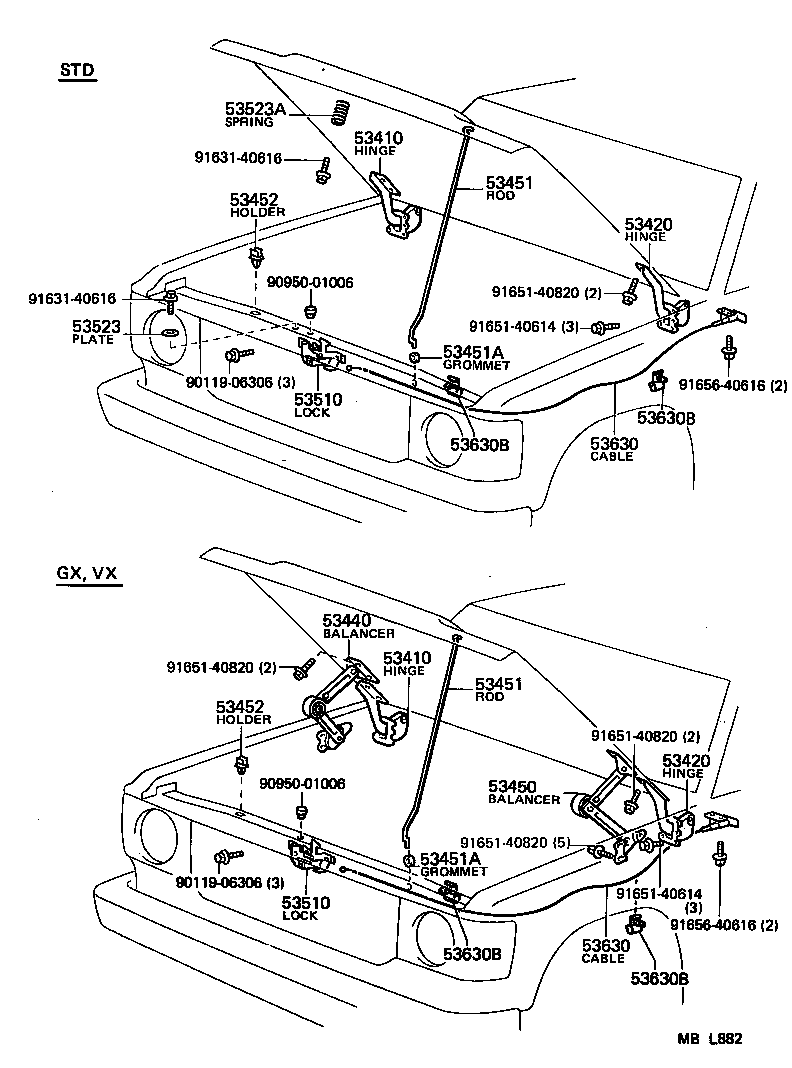

Click highlighted areas on diagram

diagram 53410 53410 53420 53420 53440 53450 53451 53451 53451A 53451A 53452 53452 53510 53510 53523 53523A 53630 53630 53630B 53630B 53630B 53630B 9011906306 9011906306 9095001006 9095001006 9163140616 9163140616 9165140614 9165140614 9165140820 9165140820 9165140820 9165140820 9165640616 9165640616
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-90A01

HJ6#;FJ62..SOB

 1
53410 - HINGE ASSY, HOOD, RH
53410-90A01

HJ6#;FJ62..SOB

 1
53420 - HINGE ASSY, HOOD, LH
53420-90A01

HJ6#;FJ62..SOB

 1
53420 - HINGE ASSY, HOOD, LH
53420-90A01

HJ6#;FJ62..SOB

 1
53440 - BALANCER ASSY, HOOD, RH
53440-90A00

FJ62..SOB;HJ6#..GX,VX

 1
53450 - BALANCER ASSY, HOOD, LH
53450-90A00

FJ62..SOB;HJ6#..GX,VX

 1
53451 - ROD, HOOD SUPPORT
53451-90A00

FJ62,HJ6#

 1
53451 - ROD, HOOD SUPPORT
53451-90A00

FJ62,HJ6#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15002

FJ62,HJ6#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15002

FJ62,HJ6#

 1
53452 - HOLDER, HOOD STAY
53452-90351

FJ62,HJ6#

 1
53452 - HOLDER, HOOD STAY
53452-90351

FJ62,HJ6#

 1
53510 - LOCK ASSY, HOOD
53510-90A01

FJ62..SOB;HJ6#..LHD

 1
53510 - LOCK ASSY, HOOD
53510-90A01

FJ62..SOB;HJ6#..LHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-90A01

FJ62..SOB;HJ6#..LHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-90A01

FJ62..SOB;HJ6#..LHD

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

HJ6#;FJ62..SOB

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

HJ6#;FJ62..SOB

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

HJ6#;FJ62..SOB

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

HJ6#;FJ62..SOB

 2
Common parts
90119-06306
90950-01006
91631-40616
91651-40614
91651-40820
91656-40616
