HJ60LG-MNW (1987)
Toyota Land Cruiser

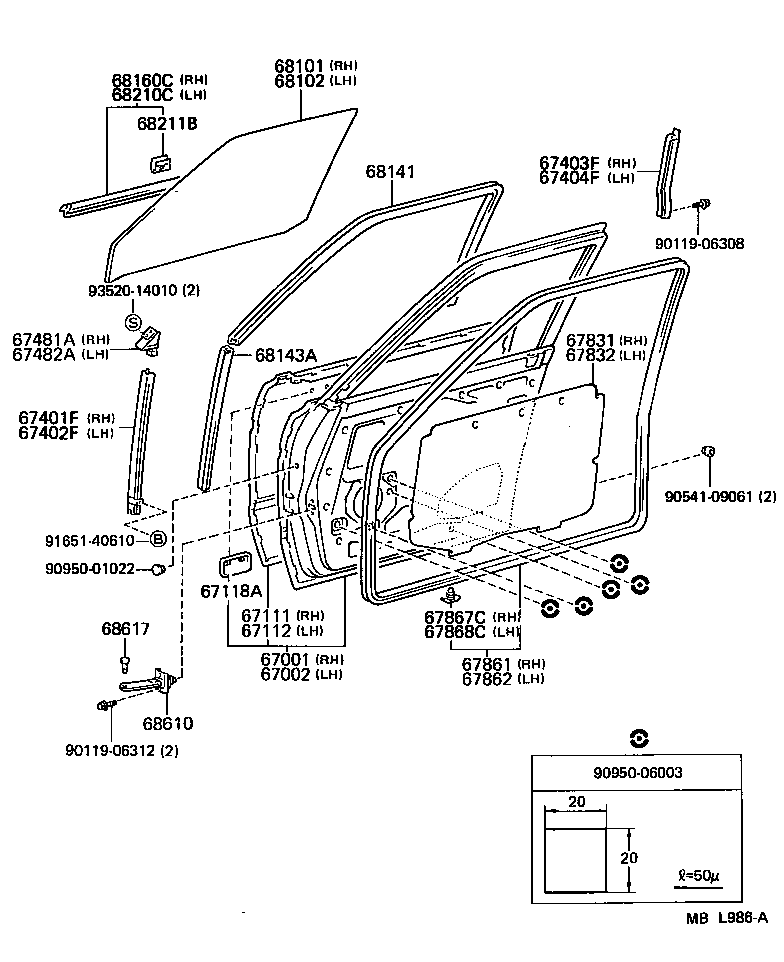

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-90A44 |
FJ62,HJ6# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-90A47 |
FJ62,HJ6# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-90A15 |
FJ62,HJ6# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-90A15 |
FJ62,HJ6# |
1 | ||
| 67118A - RETAINER, OUTER REAR VIEW MIRROR | ||||
| 67118-90A00 |
FJ62,HJ6# |
2 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-90A00 |
FJ62,HJ6# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-90A00 |
FJ62,HJ6# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-90A00 |
FJ62,HJ6# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-90A00 |
FJ62,HJ6# |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67832-90A04 |
FJ62,HJ6# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-90A04 |
FJ62,HJ6# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-90A00 |
FJ62,HJ6# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-90A00 |
FJ62,HJ6# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
FJ62,HJ6# |
22 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
FJ62,HJ6# |
22 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-90A01 |
FJ62,HJ6# *TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-90A01 |
FJ62,HJ6# *TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-90A03 |
FJ62,HJ6# |
2 | ||
| 68143A - RUN, FRONT DOOR GLASS, NO.2 | ||||
| 68143-90A01 |
FJ62,HJ6# |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-22010 |
HJ6#;FJ62..SOB |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90A01 |
HJ6#;FJ62..SOB |
2 | ||
| Common parts | ||||
| 90119-06308 | ||||
| 90119-06312 | ||||
| 90541-09061 | ||||
| 90950-01022 | ||||
| 90950-06003 | ||||
| 91651-40610 | ||||
| 93520-14010 | ||||

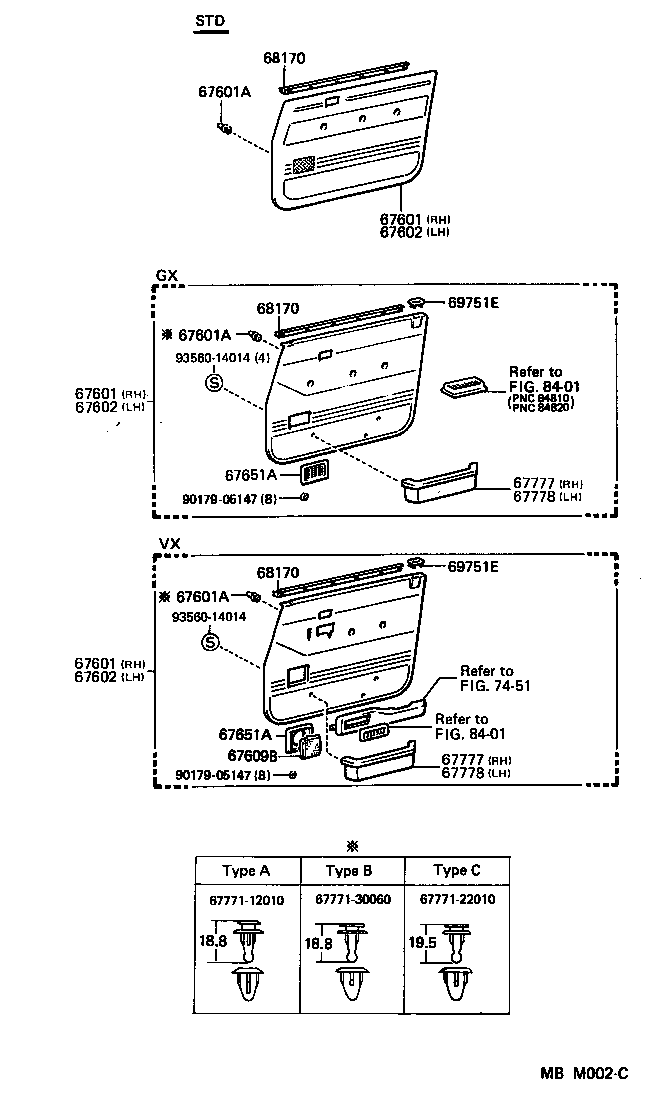

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90G0103 |
HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0403 |
HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0506 |
HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0106 |
HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0406 |
HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0503 |
HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4203 |
FJ62,HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0706 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0703 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4903 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4703 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4706 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G4206 |
FJ62,HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G3903 |
FJ62,HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G3906 |
FJ62,HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G4906 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90G0103 |
HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0403 |
HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0506 |
HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0106 |
HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0406 |
HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0503 |
HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4203 |
FJ62,HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0706 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0703 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4903 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4703 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4706 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G4206 |
FJ62,HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G3903 |
FJ62,HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G3906 |
FJ62,HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G4906 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90G0103 |
HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0403 |
HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0506 |
HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0106 |
HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0406 |
HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0503 |
HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4203 |
FJ62,HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G0706 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G0703 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4903 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4703 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G4706 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G4206 |
FJ62,HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G3903 |
FJ62,HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67610-90G3906 |
FJ62,HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67610-90G4906 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
HJ6#..LHD..GX W(*SPG) |
22 | ||
| 67771-30060 |
FJ62,HJ6#..LHD..GX |
22 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
HJ6#..LHD..GX W(*SPG) |
22 | ||
| 67771-30060 |
FJ62,HJ6#..LHD..GX |
22 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
HJ6#..LHD..GX W(*SPG) |
22 | ||
| 67771-30060 |
FJ62,HJ6#..LHD..GX |
22 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-90G0403 |
HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G0406 |
HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G1403 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G0706 |
HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G0703 |
HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G1203 |
HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G3803 |
FJ62,HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G1206 |
HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G1406 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4606 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4103 |
FJ62,HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G4106 |
FJ62,HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4603 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G3806 |
FJ62,HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4806 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4803 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-90G0403 |
HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G0406 |
HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G1403 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G0706 |
HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G0703 |
HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G1203 |
HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G3803 |
FJ62,HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G1206 |
HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G1406 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4606 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4103 |
FJ62,HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G4106 |
FJ62,HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4603 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G3806 |
FJ62,HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4806 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4803 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-90G0403 |
HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G0406 |
HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G1403 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G0706 |
HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G0703 |
HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G1203 |
HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G3803 |
FJ62,HJ6#..LHD..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G1206 |
HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G1406 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4606 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4103 |
FJ62,HJ6#..LHD..GX W(*SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G4106 |
FJ62,HJ6#..LHD..GX W(*SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4603 |
FJ62,HJ6#..LHD..GX W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-90G3806 |
FJ62,HJ6#..LHD..GX SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4806 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SEPIA BROWN,TRIM4# |
1 | ||
| 67620-90G4803 |
HJ6#..LHD..GX W(POWER WINDOW & *SPG),SHADOW GRAY,TRIM1# |
1 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67651-90A0106 |
HJ6#..LHD..(GX,VX) SEPIA BROWN,TRIM4# |
2 | ||
| 67651-90A0103 |
HJ6#..LHD..(GX,VX) SHADOW GRAY,TRIM1# |
2 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67651-90A0106 |
HJ6#..LHD..(GX,VX) SEPIA BROWN,TRIM4# |
2 | ||
| 67651-90A0103 |
HJ6#..LHD..(GX,VX) SHADOW GRAY,TRIM1# |
2 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204023 |
FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67777-2204036 |
FJ62,HJ6#..GX BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204023 |
FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67777-2204036 |
FJ62,HJ6#..GX BROWN,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203023 |
FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67778-2203046 |
FJ62,HJ6#..GX BROWN,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203023 |
FJ62,HJ6#..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67778-2203046 |
FJ62,HJ6#..GX BROWN,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-90A01 |
FJ62,HJ6#..GX,VX |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-90A01 |
FJ62,HJ6#..GX,VX |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-90A01 |
FJ62,HJ6#..GX,VX |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-20040 |
HJ6#..GX,VX |
2 | ||
| 69751-20040 |
FJ62,HJ6#..GX |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-20040 |
HJ6#..GX,VX |
2 | ||
| 69751-20040 |
FJ62,HJ6#..GX |
2 | ||
| Common parts | ||||
| 67771-12010 | ||||
| 67771-22010 | ||||
| 67771-30060 | ||||
| 90179-05147 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
