HJ60LG-MNW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LHD

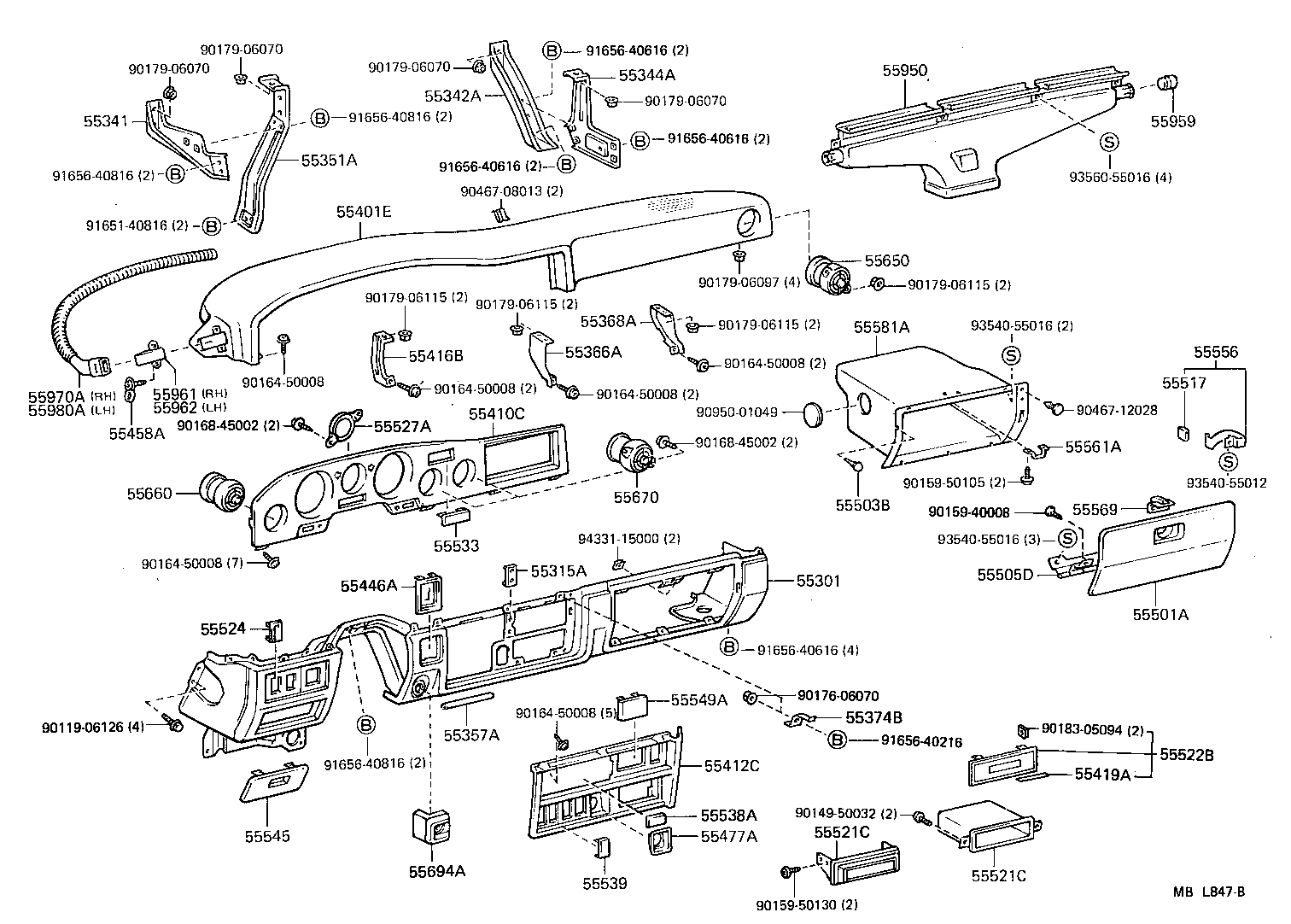

Click highlighted areas on diagram

diagram 55301 55315A 55341 55342A 55344A 55351A 55357A 55366A 55368A 55374B 55401E 55410C 55412C 55416B 55419A 55446A 55458A 55477A 55501A 55503B 55505D 55517 55521C 55521C 55522B 55524 55527A 55533 55538A 55539 55545 55549A 55556 55561A 55569 55581A 55650 55660 55670 55694A 55950 55959 55961 55962 55970A 55980A 9011906126 9014950032 9015940008 9015950105 9015950130 9016450008 9016450008 9016450008 9016450008 9016450008 9016450008 9016845002 9016845002 9017606070 9017906070 9017906070 9017906070 9017906070 9017906097 9017906115 9017906115 9017906115 9017906115 9018305094 9046708013 9046712028 9095001049 9165140816 9165640216 9165640616 9165640616 9165640616 9165640616 9165640816 9165640816 9165640816 9354055012 9354055016 9354055016 9356055016 9433115000
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-90A7705

FJ62,HJ6#..LHD

SEPIA BROWN,TRIM4#

 1
55301-90A7703

FJ62,HJ6#..LHD..(GX,VX)

SHADOW GRAY,TRIM1#

 1
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-90A00

FJ62,HJ6#

 1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55341-90A03

HJ6#..LHD

 1
55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2
55342-90A01

FJ62,HJ6#..LHD

 1
55344A - BRACE, INSTRUMENT PANEL TO COWL, NO.3
55344-90A01

FJ62,HJ6#..LHD

 1
55351A - BRACE, INSTRUMENT PANEL TO FLOOR
55351-90A03

FJ62,HJ6#..LHD

 1
55357A - PROTECTOR, EDGE, NO.1
55357-90A00

FJ62,HJ6#

 1
55366A - BRACKET, RADIO MOUNTING, NO.1
55366-90A02

FJ62,HJ6#

 1
55368A - BRACKET, RADIO MOUNTING, NO.2
55368-90A03

FJ62,HJ6#

 1
55374B - BRACKET, INSTRUMENT PANEL
55374-90A01

FJ62,HJ6#..LHD

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-90A0503

HJ6#..LHD..MTM..(GX,VX)

SHADOW GRAY,TRIM1#

 1
55401-90A0505

HJ6#..LHD..MTM

SEPIA BROWN,TRIM4#

 1
55401-90A0705

HJ6#..LHD..MTM

COLD SPEC,SEPIA BROWN,TRIM4#

 1
55401-90A0703

HJ6#..LHD..MTM..(GX,VX)

COLD SPEC,SHADOW GRAY,TRIM1#

 1
55401-90A0503

FJ62,HJ6#..LHD..(GX,VX)

SHADOW GRAY,TRIM1#

 1
55401-90A0505

FJ62,HJ6#..LHD

SEPIA BROWN,TRIM4#

 1
55401-90A0505

HJ6#..LHD..MTM

SEPIA BROWN,TRIM4#

 1
55401-90A0503

HJ6#..LHD..MTM..(GX,VX)

SHADOW GRAY,TRIM1#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-90G28

FJ62,HJ6#..LHD

W(RADIO)

 1
55410-90G29

FJ62,HJ6#..LHD

 1
55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1
55412-90A1005

FJ62,HJ6#..LHD

SEPIA BROWN,TRIM4#

 1
55412-90A1003

FJ62,HJ6#..LHD..(GX,VX)

SHADOW GRAY,TRIM1#

 1
55416B - BRACKET, INSTRUMENT PAD, NO.2
55416-90A01

FJ62,HJ6#..LHD

 1
55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-14020

FJ62,HJ6#..LHD

 2
55446A - BASE, SWITCH HOLE, NO.1
55446-90A0106

HJ6#..MTM

SEPIA BROWN,TRIM4#

 1
55446-90A0113

HJ6#..MTM..(GX,VX)

SHADOW GRAY,TRIM1#

 1
55446-90A0213

HJ6#..MTM..(GX,VX)

W(ONE TOUCH 2-4 SELECTOR),SHADOW GRAY,TRIM1#

 1
55446-90A0206

HJ6#..MTM

W(ONE TOUCH 2-4 SELECTOR),SEPIA BROWN,TRIM4#

 1
55458A - CAP, INSTRUMENT PANEL SAFETY PAD
55458-90A00

FJ62,HJ6#

 2
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-90A02

HJ6#..GX,VX

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-90A0023

FJ62,HJ6#..GX,VX

SHADOW GRAY,TRIM1#

 1
55501-90A0006

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-03015

FJ62,HJ6#

 2
55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55505-90A00

FJ62,HJ6#

 1
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-14010

FJ62,HJ6#

 1
55521C - COVER, STEREO OPENING
55521-1405001

FJ62,HJ6#..LHD

BLACK,TRIM1#,4#

 1
55521-20120

FJ62,HJ6#..LHD

W(RADIO)

 1
55521-20110

FJ62,HJ6#..LHD

 1
55521C - COVER, STEREO OPENING
55521-1405001

FJ62,HJ6#..LHD

BLACK,TRIM1#,4#

 1
55521-20120

FJ62,HJ6#..LHD

W(RADIO)

 1
55521-20110

FJ62,HJ6#..LHD

 1
55522B - COVER, RADIO TUNER OPENING
55522-20060

FJ62,HJ6#..LHD

 1
55522-32010

FJ62,HJ6#..LHD

W/O(RADIO)

 1
55524 - COVER, SWITCH BACE HOLE
55524-90A00

FJ62,HJ6#..LHD

 1
55533 - COVER, AUTO CLOCK HOLE
55533-90A00

FJ62,HJ6#..GX,STD

 1
55538A - COVER, COOLER SWITCH HOLE
55538-22010

FJ62,HJ6#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

HJ6#

BLACK,TRIM1#,4#

 1
55545 - COVER, FUSE BOX OPENING
55545-90A0103

FJ62,HJ6#..GX,VX

SHADOW GRAY,TRIM1#

 1
55545-90A0106

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
55549A - COVER, REAR COOLER SWITCH HOLE
55549-90A00

FJ62,HJ6#

 1
55556 - ARM, GLOVE COMPARTMENT DOOR CHECK
55556-90A01

FJ62,HJ6#..LHD

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-90A00

FJ62,HJ6#

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-90A0023

FJ62,HJ6#..GX,VX

SHADOW GRAY,TRIM1#

 1
55569-90A0006

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
55581A - COMPARTMENT, GLOVE
55581-90A05

HJ6#..LHD

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-90A02

FJ62,HJ6#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-90A00

FJ62,HJ6#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-90A02

FJ62,HJ6#

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-90A01

HJ6#..LHD

 1
55950-90A03

FJ62,HJ6#..LHD

 1
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-14010

FJ62,HJ61;HJ60..MTM

 2
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-90A0003

HJ6#..MTM..(GX,VX)

GRAY,TRIM1#

 1
55961-90A0016

HJ6#..MTM

SEPIA BROWN,TRIM4#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55961-90A0016

HJ6#..MTM

SEPIA BROWN,TRIM4#

 1
55961-90A0003

HJ6#..MTM..(GX,VX)

GRAY,TRIM1#

 1
55970A - DUCT ASSY, SIDE DEFROSTER, RH
55970-90A00

HJ6#..MTM

 1
55980A - DUCT ASSY, SIDE DEFROSTER, LH
55980-90A00

HJ6#..MTM

 1
Common parts
90119-06126
90149-50032
90159-40008
90159-50105
90159-50130
90164-50008
90168-45002
90176-06070
90179-06070
90179-06097
90179-06115
90183-05094
90467-08013
90467-12028
90950-01049
91651-40816
91656-40216
91656-40616
91656-40816
93540-55012
93540-55016
93560-55016
94331-15000
