HJ60LG-MNCZW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

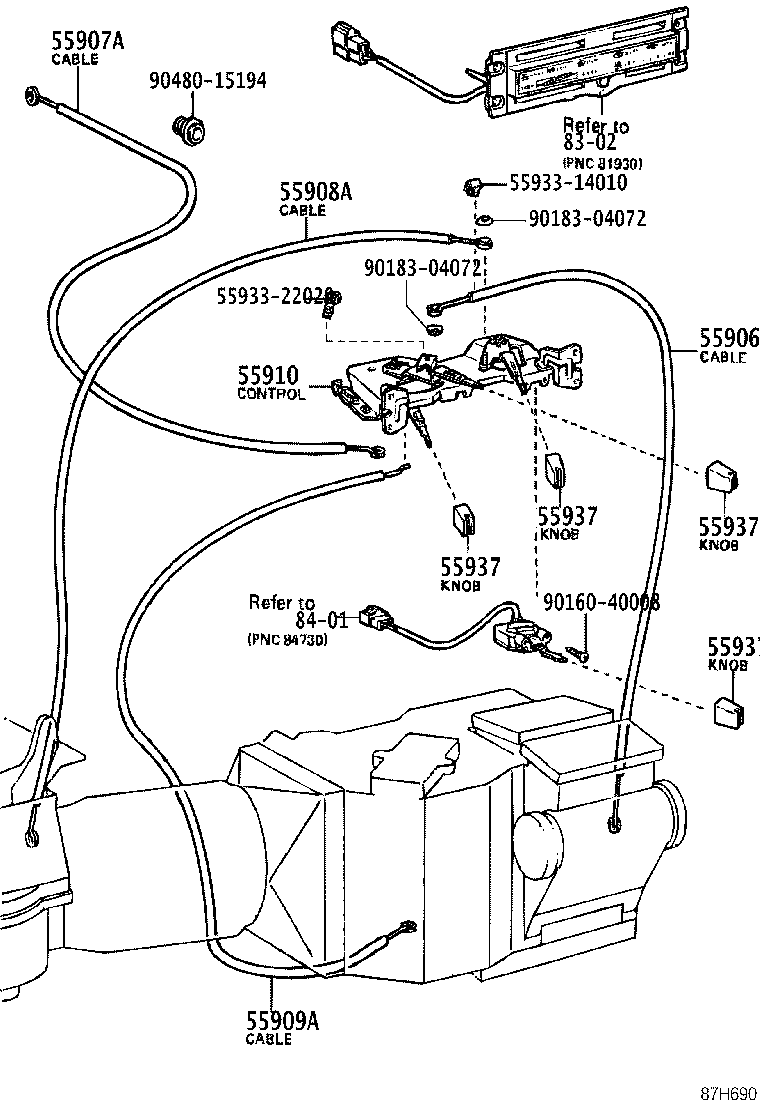

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 5593314010 5593322020 55937 55937 55937 55937 8302 8401 9016040008 9018304072 9018304072 9048015194
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55905-90A00

FJ62,HJ6#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-90A01

FJ62,HJ6#..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-90A00

FJ62,HJ6#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55907-90A00

FJ62,HJ6#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55901-90A01

FJ62,HJ6#..LHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-90A01

FJ62,HJ6#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-90A01

FJ62,HJ6#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-90A01

FJ62,HJ6#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-90A01

FJ62,HJ6#

 4
Common parts
55933-14010
55933-22020
90160-40008
90183-04072
90480-15194
Linked diagrams
8302
8401

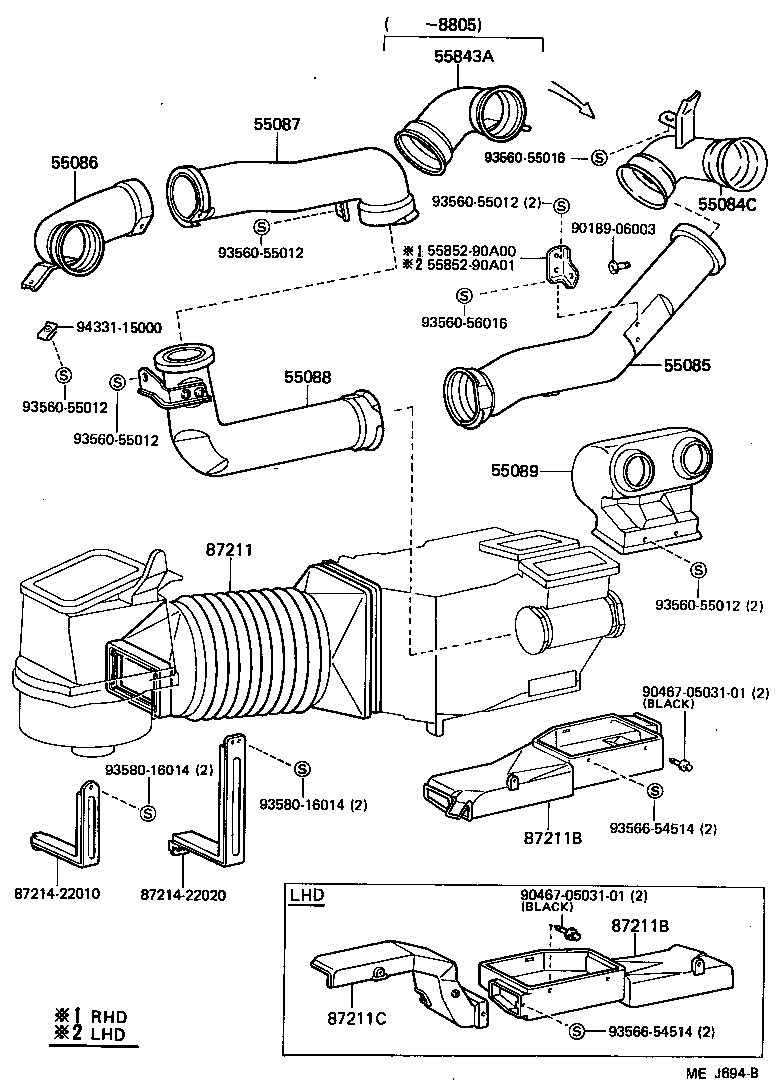

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 55084C 55085 55086 55087 55088 55089 55843A 5585290A00 5585290A01 87211 87211B 87211B 87211C 8721422010 8721422020 9018906003 904670503101 904670503101 9356055012 9356055012 9356055012 9356055012 9356055012 9356055016 9356056016 9356654514 9356654514 9358016014 9358016014 9433115000
Part # Description Qty Price
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-90A03

FJ62,HJ6#..LHD

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-90A01

FJ62,HJ6#..LHD

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-90A01

FJ62,HJ6#..LHD

 1
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-90A01

FJ62,HJ6#..LHD

 1
55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5
55088-90A01

FJ62,HJ6#..LHD

 1
55089 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.6
55089-90A03

FJ62,HJ6#..LHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-90A03

HJ6#..LHD

 1
87211 - DUCT, AIR, NO.1
87211-90A01

FJ62,HJ6#..LHD

 1
87211B - DUCT, AIR, NO.3
87201-90A04

FJ62,HJ6#..LHD

 1
87211B - DUCT, AIR, NO.3
87201-90A04

FJ62,HJ6#..LHD

 1
87211C - DUCT, AIR, NO.4
87201-90A02

FJ62,HJ6#..LHD

 1
Common parts
55852-90A00
55852-90A01
87214-22010
87214-22020
90189-06003
90467-0503101
93560-55012
93560-55016
93560-56016
93566-54514
93580-16014
94331-15000
