HJ60LG-MNCZW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

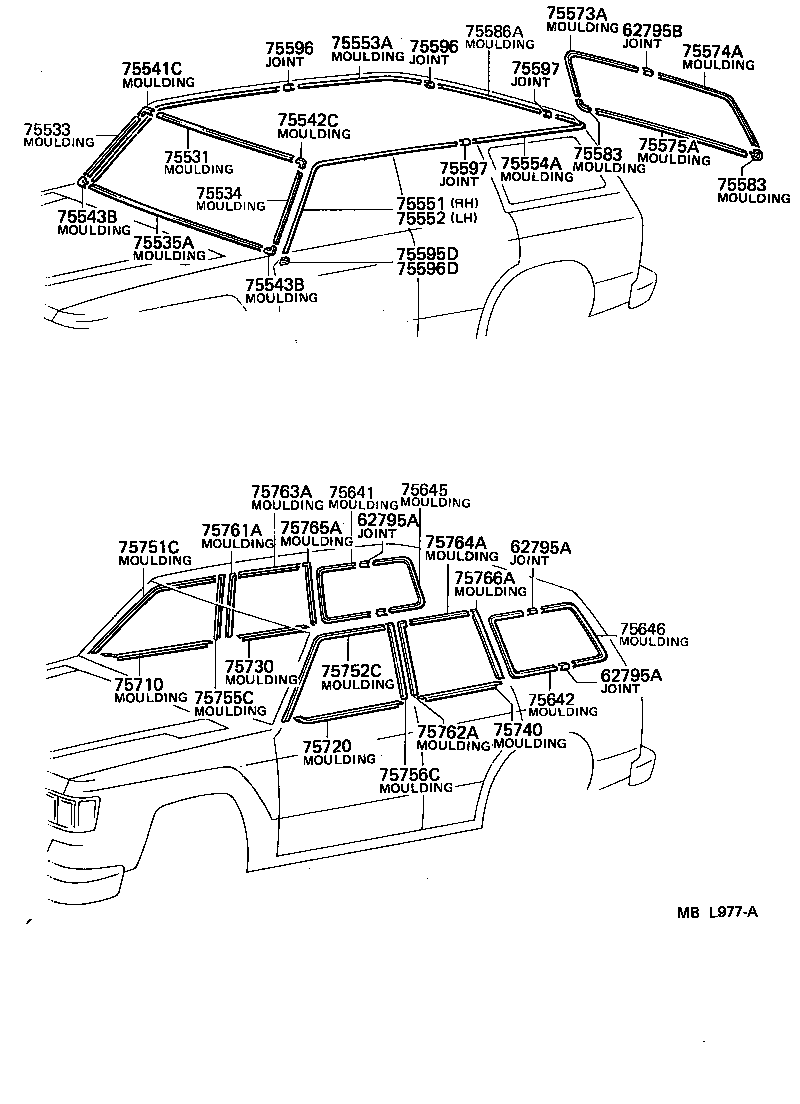

Click highlighted areas on diagram

diagram 62795A 62795A 62795A 62795B 75531 75533 75534 75535A 75541C 75542C 75543B 75543B 75551 75552 75553A 75554A 75573A 75574A 75575A 75583 75583 75586A 75595D 75596 75596 75596D 75597 75597 75641 75642 75645 75646 75710 75720 75730 75740 75751C 75752C 75755C 75756C 75761A 75762A 75763A 75764A 75765A 75766A
Part # Description Qty Price
62795A - COVER, QUARTER WINDOW MOULDING JOINT, RH
62795-90A00

HJ60..SOB..GX;FJ62,HJ6#..SRF..(GX,VX)

 4
62795-90A00

HJ6#..GX,VX

 4
62795A - COVER, QUARTER WINDOW MOULDING JOINT, RH
62795-90A00

HJ60..SOB..GX;FJ62,HJ6#..SRF..(GX,VX)

 4
62795-90A00

HJ6#..GX,VX

 4
62795A - COVER, QUARTER WINDOW MOULDING JOINT, RH
62795-90A00

HJ60..SOB..GX;FJ62,HJ6#..SRF..(GX,VX)

 4
62795-90A00

HJ6#..GX,VX

 4
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-90A00

FJ62,HJ6#..GX,VX

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-90A00

FJ62,HJ6#..GX,VX

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-90A00

FJ62,HJ6#..GX,VX

 1
75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER
75535-90A00

FJ62,HJ6#..GX,VX

 1
75541C - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-90A00

FJ62,HJ6#..GX,VX

 1
75542C - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75541-90A00

FJ62,HJ6#..GX,VX

 1
75543B - COVER, WINDSHIELD MOULDING JOINT, LOWER
75543-90A00

FJ62,HJ6#..GX,VX

 2
75543B - COVER, WINDSHIELD MOULDING JOINT, LOWER
75543-90A00

FJ62,HJ6#..GX,VX

 2
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75505-90A00

FJ62,HJ6#..GX,VX

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75506-90A00

FJ62,HJ6#..GX,VX

 1
75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-90A00

FJ62,HJ6#..GX,VX

 1
75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-90A00

FJ62,HJ6#..GX,VX

 1
75586A - MOULDING, ROOF DRIP, REAR
75586-90A00

FJ62,HJ6#..GX,VX

 1
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-90A00

FJ62,HJ6#..GX,VX

 2
75596 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75596-90A00

FJ62,HJ6#..GX,VX

 2
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-90A00

FJ62,HJ6#..GX,VX

 2
75597 - COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75596-90A00

FJ62,HJ6#..GX,VX

 2
75641 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH
75641-90A00

HJ60..SOB..GX;FJ62,HJ6#..SRF..(GX,VX)

 1
75641-90A00

HJ6#..GX,VX

 1
75642 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH
75642-90A00

HJ60..SOB..GX;FJ62,HJ6#..SRF..(GX,VX)

 1
75642-90A00

HJ6#..GX,VX

 1
75645 - MOULDING, QUARTER WINDOW, OUTSIDE REAR RH
75645-90A00

HJ60..SOB..GX;FJ62,HJ6#..SRF..(GX,VX)

 1
75645-90A00

HJ6#..GX,VX

 1
75646 - MOULDING, QUARTER WINDOW, OUTSIDE REAR LH
75646-90A00

HJ6#..GX,VX

 1
75646-90A00

HJ60..SOB..GX;FJ62,HJ6#..SRF..(GX,VX)

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-90A02

FJ62,HJ6#..GX,VX

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-90A02

FJ62,HJ6#..GX,VX

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-90A01

FJ62,HJ6#..GX,VX

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-90A01

FJ62,HJ6#..GX,VX

 1
75751C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75751-90A00

FJ62,HJ6#..GX,VX

 1
75752C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75752-90A00

FJ62,HJ6#..GX,VX

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-90A00

FJ62,HJ6#..GX,VX

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-90A00

FJ62,HJ6#..GX,VX

 1
75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75761-90A00

FJ62,HJ6#..GX,VX

 1
75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75762-90A00

FJ62,HJ6#..GX,VX

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-90A00

FJ62,HJ6#..GX,VX

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-90A00

FJ62,HJ6#..GX,VX

 1
75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-90A00

FJ62,HJ6#..GX,VX

 1
75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75766-90A00

FJ62,HJ6#..GX,VX

 1
