HJ60LG-MNCZW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

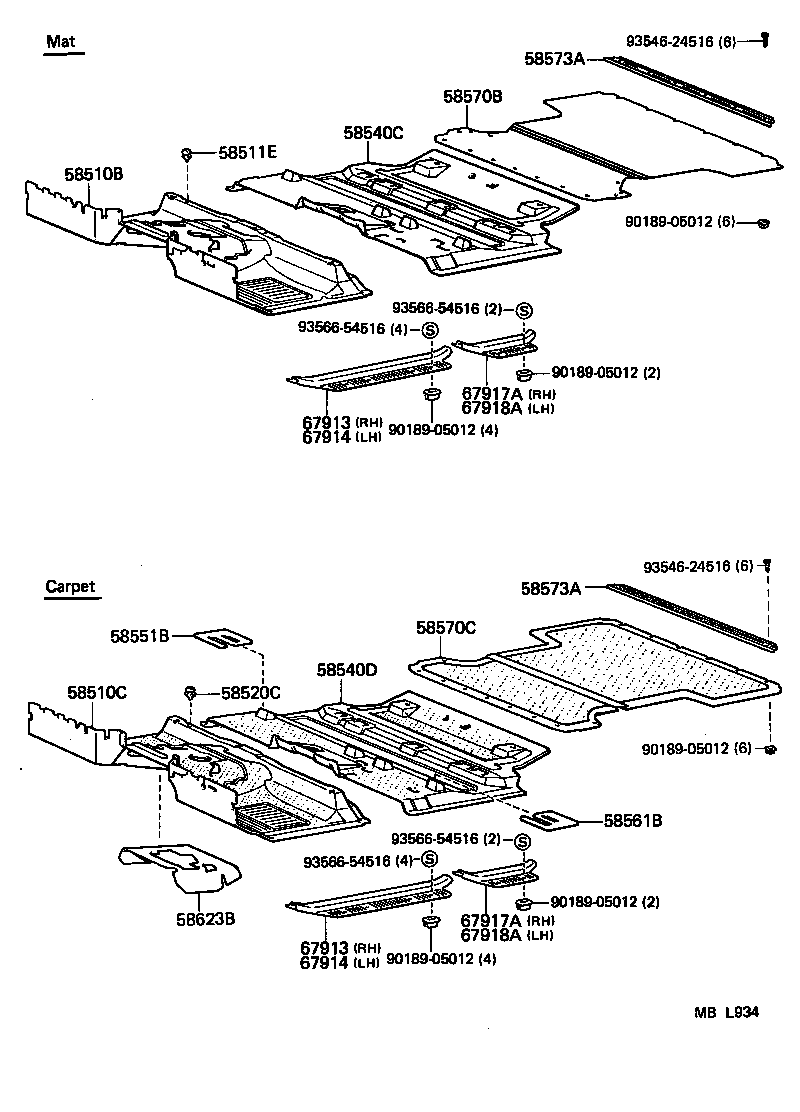

Click highlighted areas on diagram

diagram 58510B 58510C 58511E 58520C 58540C 58540D 58551B 58561B 58570B 58570C 58573A 58573A 58623B 67913 67913 67914 67914 67917A 67917A 67918A 67918A 9018905012 9018905012 9018905012 9018905012 9018905012 9018905012 9354624516 9354624516 9356654516 9356654516 9356654516 9356654516
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-90A7906

HJ60..HRF..SOB

W(PTO),SEPIA BROWN,TRIM4#

 1
58510-90A7706

HJ60..STD;HJ60..HRF..SOB

SEPIA BROWN,TRIM4#

 1
58510-90A7903

HJ60..HRF..SOB

W(PTO),SHADOW GRAY,TRIM1#

 1
58510-90A7703

HJ60..HRF..SOB

SHADOW GRAY,TRIM1#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-1203503

HJ60..HRF..SOB

W(*SUS),SHADOW GRAY,TRIM1#

 4
90467-1203503

HJ60..HRF..SOB

SHADOW GRAY,TRIM1#

 2
90467-1203506

HJ60..HRF..SOB

W(*SUS),SEPIA BROWN,TRIM4#

 4
90467-1203506

HJ60..STD;HJ60..HRF..SOB

SEPIA BROWN,TRIM4#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-1203503

FJ62,HJ6#..GX

W(*SUS),SHADOW GRAY,TRIM1#

 4
90467-1203503

FJ62,HJ6#..GX

SHADOW GRAY,TRIM1#

 2
90467-1203506

FJ62,HJ6#..GX

W(*SUS),SEPIA BROWN,TRIM4#

 4
90467-1203506

FJ62,HJ6#..GX

SEPIA BROWN,TRIM4#

 2
58540C - MAT ASSY, FLOOR, REAR
58540-90A9203

HJ60..HRF..SOB

SHADOW GRAY,TRIM1#

 1
58540-90A9206

HJ60..HRF..SOB

SEPIA BROWN,TRIM4#

 1
58540-90G1603

HJ60..HRF..SOB

W(*SUS),SHADOW GRAY,TRIM1#

 1
58540-90G1606

HJ60..HRF..SOB

W(*SUS),SEPIA BROWN,TRIM4#

 1
58570B - MAT ASSY, REAR FLOOR
58581-90A1306

HJ60..HRF..SOB

SEPIA BROWN,TRIM4#

 1
58581-90A1303

HJ60..HRF..SOB

SHADOW GRAY,TRIM1#

 1
58573A - PLATE, REAR FLOOR MAT SUPPORT
58573-90A00

FJ62,HJ6#

 1
58573A - PLATE, REAR FLOOR MAT SUPPORT
58573-90A00

FJ62,HJ6#

 1
58623B - PAD, FRONT FLOOR SILENCER, CENTER
58623-90A00

HJ60..MTM

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67913-90A0003

FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67913-90A0003

FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67913-90A0003

FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67913-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67913-90A0003

FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67913-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-90A0003

FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67917-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-90A0003

FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67917-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67917-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67917-90A0003

FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67917-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
67917-90A0003

FJ62,HJ6#..GX,VX

GRAY,TRIM1#

 1
Common parts
90189-05012
93546-24516
93566-54516
