HJ60LG-MNCZW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )MTM

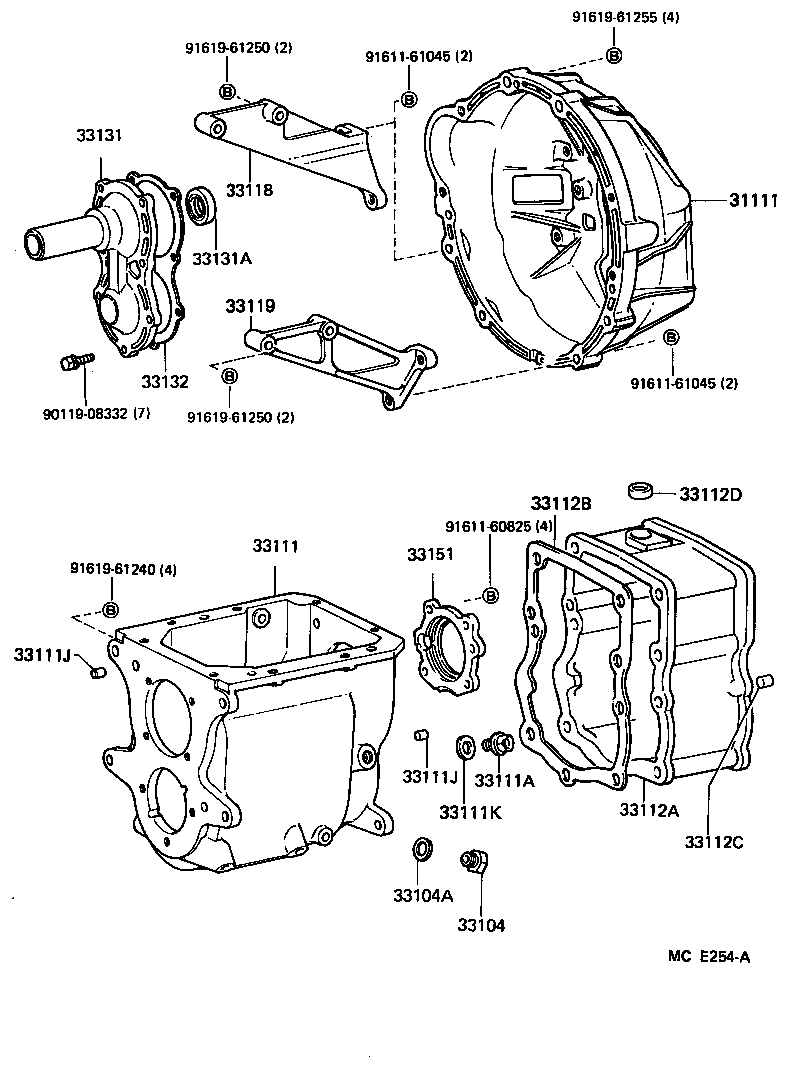

Click highlighted areas on diagram

H55F

diagram 31111 33104 33104A 33111 33111A 33111J 33111J 33111K 33112A 33112B 33112C 33112D 33118 33119 33131 33131A 33132 33151 9011908332 9161160825 9161161045 9161161045 9161961240 9161961250 9161961250 9161961255
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-60170

HJ6#..MTM..(GX,VX)

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

HJ6#..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

HJ6#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-60080

HJ6#..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

HJ6#..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-10214

HJ6#..MTM

L=14,OD=10

 1
90250-12216

HJ6#..MTM

L=14,OD=12

 1
90250-12146

HJ6#..MTM

L=17,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-10214

HJ6#..MTM

L=14,OD=10

 1
90250-12216

HJ6#..MTM

L=14,OD=12

 1
90250-12146

HJ6#..MTM

L=17,OD=12

 2
33111K - GASKET(FOR TRANSMISSION CASE)
90430-18008

HJ6#..MTM

 1
33112A - ADAPTER, TRANSFER
36117-60021

HJ6#..MTM

 1
33112B - GASKET, TRANSFER ADAPTER
33142-60020

HJ6#..MTM

 1
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12216

HJ6#..MTM

 2
33112D - SEAL, OIL(FOR TRANSFER ADAPTER)
90312-17001

HJ6#..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-60010

HJ6#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-60010

HJ6#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-60040

HJ6#..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32013

HJ6#..MTM

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-60020

HJ6#..MTM

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-60010

HJ6#..MTM

 1
Common parts
90119-08332
91611-60825
91611-61045
91619-61240
91619-61250
91619-61255
