HJ60LG-MNCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Aug 1988
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

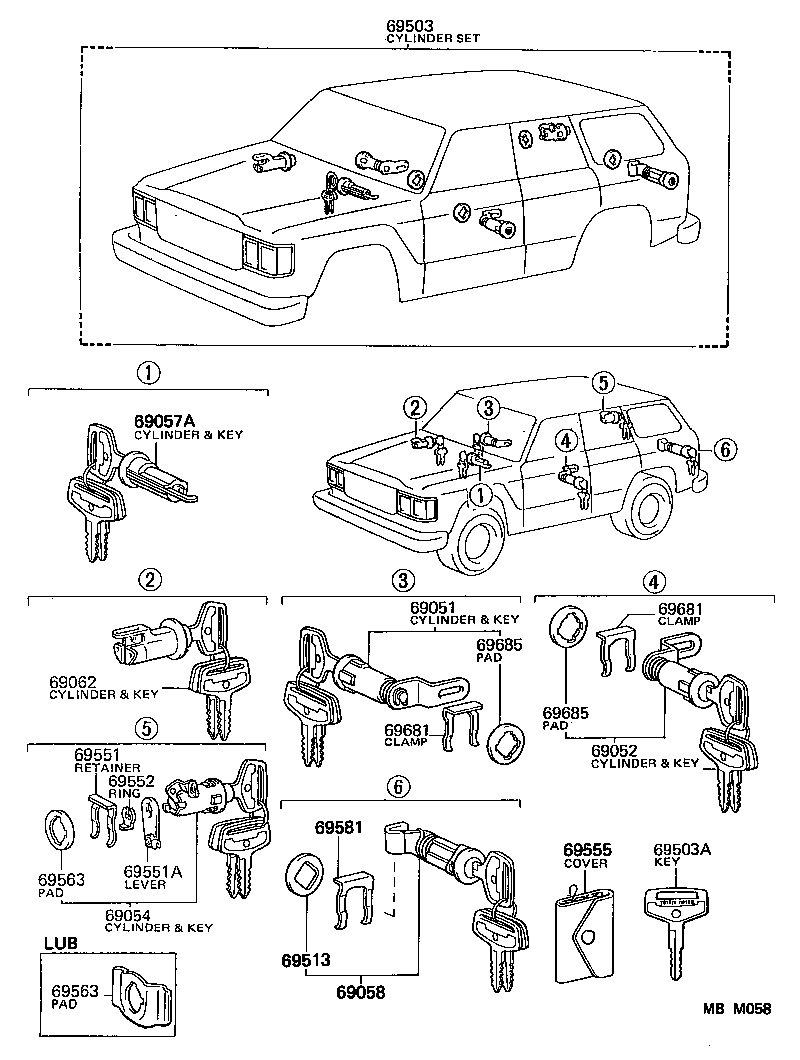

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-90A05 |
FJ62,HJ6# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-90A05 |
FJ62,HJ6# |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-90A10 |
FJ62,HJ6#..SOB..GX |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-95704 |
HJ6# |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-90A05 |
HJ6#;FJ62..SOB |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-90A00 |
HJ6#;FJ62..SOB |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-90A49 |
HJ6#..SOB |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
FJ62,HJ6# MASTER KEY |
1 | ||
| 69513 - PAD, FUEL FILLER LID LOCK CYLINDER | ||||
| 69513-14010 |
FJ62,HJ6# |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
FJ62,HJ6# |
1 | ||
| 69563 - PAD, BACK DOOR LOCK CYLINDER | ||||
| 69513-90A00 |
FJ62,HJ6#..SOB..GX |
1 | ||
| 69563 - PAD, BACK DOOR LOCK CYLINDER | ||||
| 69513-90A00 |
FJ62,HJ6#..SOB..GX |
1 | ||
| 69581 - RETAINER, FUEL FILLER LID CYLINDER | ||||
| 69581-14010 |
FJ62,HJ6# |
1 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
FJ62,HJ6#..SOB |
3 | ||
| 69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE | ||||
| 69681-20040 |
FJ62,HJ6#..SOB |
3 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-90A00 |
FJ62,HJ6# |
2 | ||
| 69513-90A00 |
FJ62,HJ6#..SOB |
3 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-90A00 |
FJ62,HJ6# |
2 | ||
| 69513-90A00 |
FJ62,HJ6#..SOB |
3 | ||
