HJ60LG-MNCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Aug 1988
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

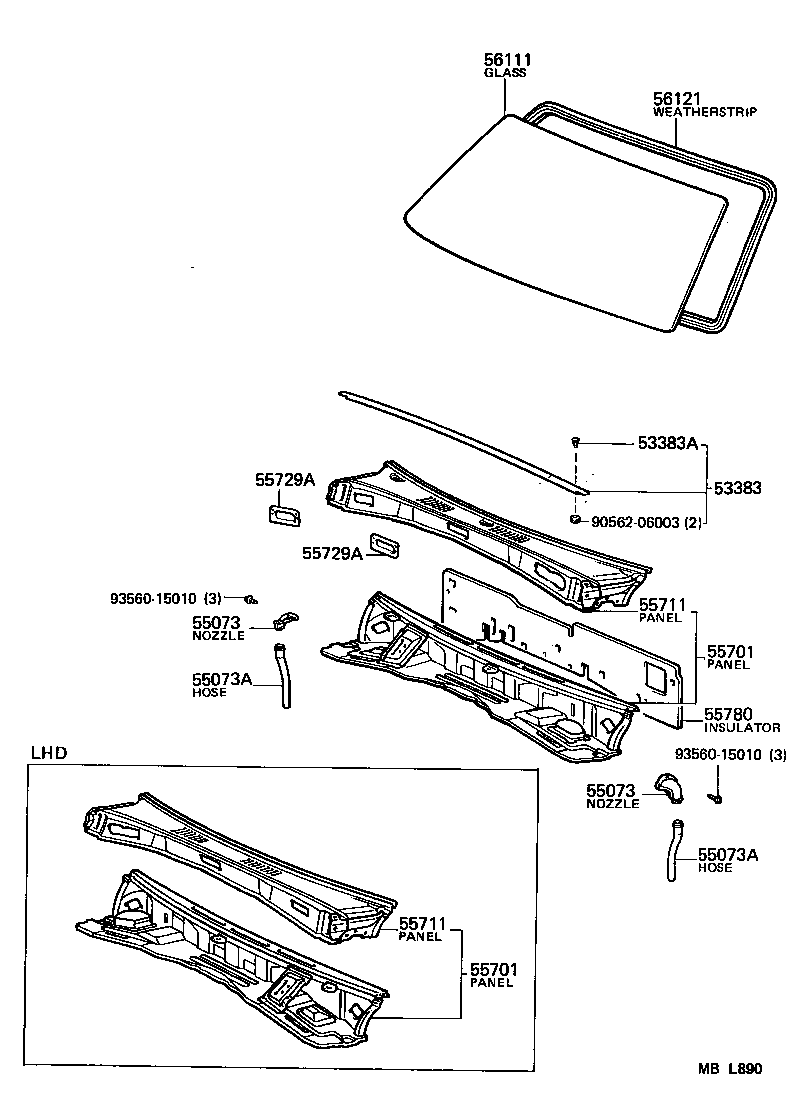

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-90A00 |
FJ62,HJ6# |
1 | ||
| 53383A - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08011 |
HJ6# |
5 | ||
| 55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT | ||||
| 55073-90A00 |
FJ62,HJ6# |
2 | ||
| 55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT | ||||
| 55073-90A00 |
FJ62,HJ6# |
2 | ||
| 55073A - HOSE(FOR EXTRACT NOZZLE) | ||||
| 90910-04012 |
FJ62,HJ6# |
2 | ||
| 55073A - HOSE(FOR EXTRACT NOZZLE) | ||||
| 90910-04012 |
FJ62,HJ6# |
2 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-90G15 |
FJ62,HJ6# |
1 | ||
| 55700-90G17 |
HJ61..VX;HJ6#..SOB W(CLUTCH BOOSTER) |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-90G15 |
FJ62,HJ6# |
1 | ||
| 55700-90G17 |
HJ61..VX;HJ6#..SOB W(CLUTCH BOOSTER) |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-90A35 |
FJ62,HJ6#..LHD |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-90A35 |
FJ62,HJ6#..LHD |
1 | ||
| 55729A - COVER, COWL PANEL HOLE | ||||
| 55729-90A01 |
FJ62,HJ6# |
2 | ||
| 55729A - COVER, COWL PANEL HOLE | ||||
| 55729-90A01 |
FJ62,HJ6# |
2 | ||
| 55780 - INSULATOR ASSY, COWL TOP | ||||
| 55780-90A01 |
FJ62,HJ6#..LHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-90A02 |
FJ62,HJ6# *TL,T=5.3 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-90A01 |
HJ6#..GX,VX |
1 | ||
| Common parts | ||||
| 90562-06003 | ||||
| 93560-15010 | ||||
