HJ60LG-MNCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Aug 1988
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )12HT,2H

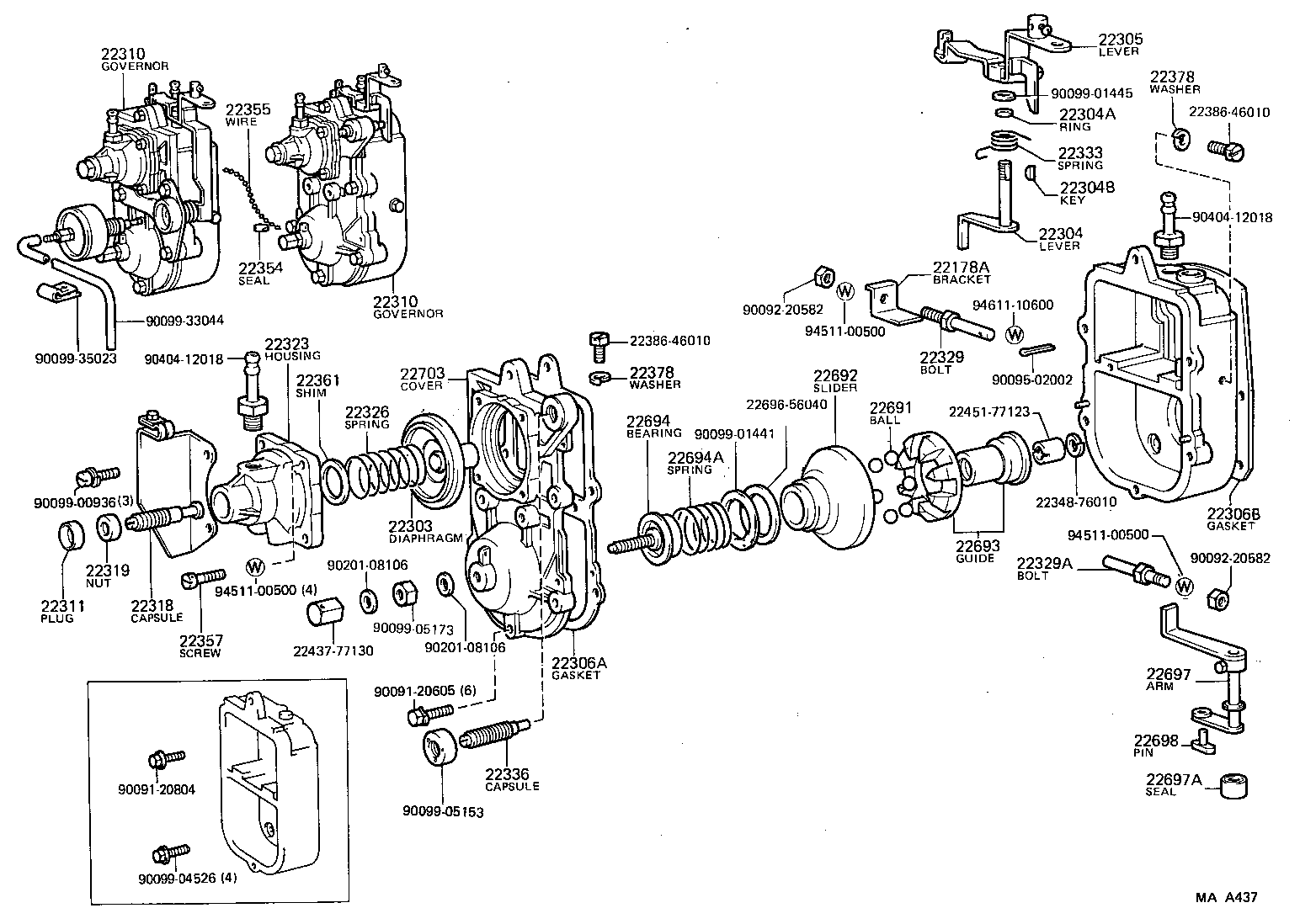

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22178A - BRACKET, DIAPHRAGM CONNECTING | ||||
| 22178-48024 |
2H..HJ60..MTM |
1 | ||
| 22303 - DIAPHRAGM SUB-ASSY, GOVERNOR | ||||
| 22303-47010 |
2H..HJ60..MTM |
1 | ||
| 22304 - LEVER SUB-ASSY, INJECTION PUMP, NO.3 | ||||
| 22408-68010 |
2H..HJ60..MTM |
1 | ||
| 22304A - RING, O(FOR NO.3 LEVER) | ||||
| 96711-19008 |
2H..HJ60..MTM |
1 | ||
| 22304B - KEY(FOR NO.3 LEVER) | ||||
| 90099-13001 |
2H..HJ60..MTM |
1 | ||
| 22305 - LEVER SUB-ASSY, INJECTION PUMP, NO.1 | ||||
| 22308-68020 |
2H..HJ60..MTM |
1 | ||
| 22306A - GASKET(FOR GOVERNOR HOUSING) | ||||
| 22442-77130 |
2H..HJ60..MTM |
1 | ||
| 22306B - GASKET(FOR INJECTION PUMP HOUSING) | ||||
| 22442-77131 |
2H..HJ60..MTM |
1 | ||
| 22310 - GOVERNOR ASSY, INJECTION PUMP | ||||
| 22320-68020 |
2H..HJ60..MTM |
1 | ||
| 22310 - GOVERNOR ASSY, INJECTION PUMP | ||||
| 22320-68020 |
2H..HJ60..MTM |
1 | ||
| 22311 - PLUG, DIAPHRAGM HOUSING SEALING SCREW | ||||
| 22457-58010 |
2H..HJ60..MTM |
1 | ||
| 22318 - CAPSULE, IDLING | ||||
| 22318-48030 |
2H..HJ60..MTM |
1 | ||
| 22319 - NUT, GOVERNOR IDLING SPRING SET | ||||
| 22319-77010 |
2H..HJ60..MTM |
1 | ||
| 22323 - HOUSING, GOVERNOR DIAPHRAGM | ||||
| 22323-58010 |
2H..HJ60..MTM |
1 | ||
| 22326 - SPRING, GOVERNOR MAIN | ||||
| 22326-48030 |
2H..HJ60..MTM |
1 | ||
| 22329 - BOLT, DIAPHRAGM CONNECTING | ||||
| 22329-77021 |
2H..HJ60..MTM |
1 | ||
| 22329A - BOLT, DIAPHRAGM CONNECTING, NO.2 | ||||
| 22329-77130 |
2H..HJ60..MTM |
1 | ||
| 22333 - SPRING, DIAPHRAGM STOP LEVER RETURN | ||||
| 22333-77130 |
2H..HJ60..MTM |
1 | ||
| 22336 - CAPSULE, FULL STOP | ||||
| 22336-68010 |
2H..HJ60..MTM |
1 | ||
| 22354 - SEAL, LEAD | ||||
| 22354-77050 |
2H..HJ60 |
2 | ||
| 22355 - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-36010 |
2H..HJ60 |
2 | ||
| 22357 - SCREW, DIAPHRAGM HOUSING SET | ||||
| 90099-04945 |
2H..HJ60..MTM |
1 | ||
| 22361 - SHIM, MAIN SPRING | ||||
| 22362-76010 |
2H..HJ60..MTM T=2.0 |
2 | ||
| 22361-76010 |
2H..HJ60..MTM T=3.0 |
2 | ||
| 22363-76010 |
2H..HJ60..MTM T=1.0 |
2 | ||
| 22364-76010 |
2H..HJ60..MTM T=0.5 |
2 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| 22113-77090 |
2H..HJ60..MTM |
2 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| 22113-77090 |
2H..HJ60..MTM |
2 | ||
| 22691 - BALL, SPEED CONTROL | ||||
| 90099-12010 |
2H..HJ60..MTM |
6 | ||
| 22692 - SLIDER(FOR SPEED CONTROL) | ||||
| 22692-77131 |
2H..HJ60..MTM |
1 | ||
| 22693 - GUIDE, BALL | ||||
| 22693-77130 |
2H..HJ60..MTM |
1 | ||
| 22694 - BEARING SUB-ASSY | ||||
| 22694-77130 |
2H..HJ60..MTM |
1 | ||
| 22694A - SPRING, SPEED CONTROL | ||||
| 22449-48030 |
2H..HJ60..MTM |
1 | ||
| 22697 - ARM SUB-ASSY | ||||
| 22697-77131 |
2H..HJ60..MTM |
1 | ||
| 22697A - SEAL, OIL(FOR NO.3 LEVER) | ||||
| 85613-31010 |
2H..HJ60..MTM |
1 | ||
| 22698 - PIN, SHIFTING | ||||
| 22698-77131 |
2H..HJ60..MTM |
1 | ||
| 22703 - COVER, GOVERNOR | ||||
| 22703-68010 |
2H..HJ60..MTM |
1 | ||
| Common parts | ||||
| 22348-76010 | ||||
| 22386-46010 | ||||
| 22437-77130 | ||||
| 22451-77123 | ||||
| 22696-56040 | ||||
| 90091-20605 | ||||
| 90091-20804 | ||||
| 90092-20582 | ||||
| 90095-02002 | ||||
| 90099-00936 | ||||
| 90099-01441 | ||||
| 90099-01445 | ||||
| 90099-04526 | ||||
| 90099-05153 | ||||
| 90099-05173 | ||||
| 90099-33044 | ||||
| 90099-35023 | ||||
| 90201-08106 | ||||
| 90404-12018 | ||||
| 94511-00500 | ||||
| 94611-10600 | ||||
