HJ60LG-MCZW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

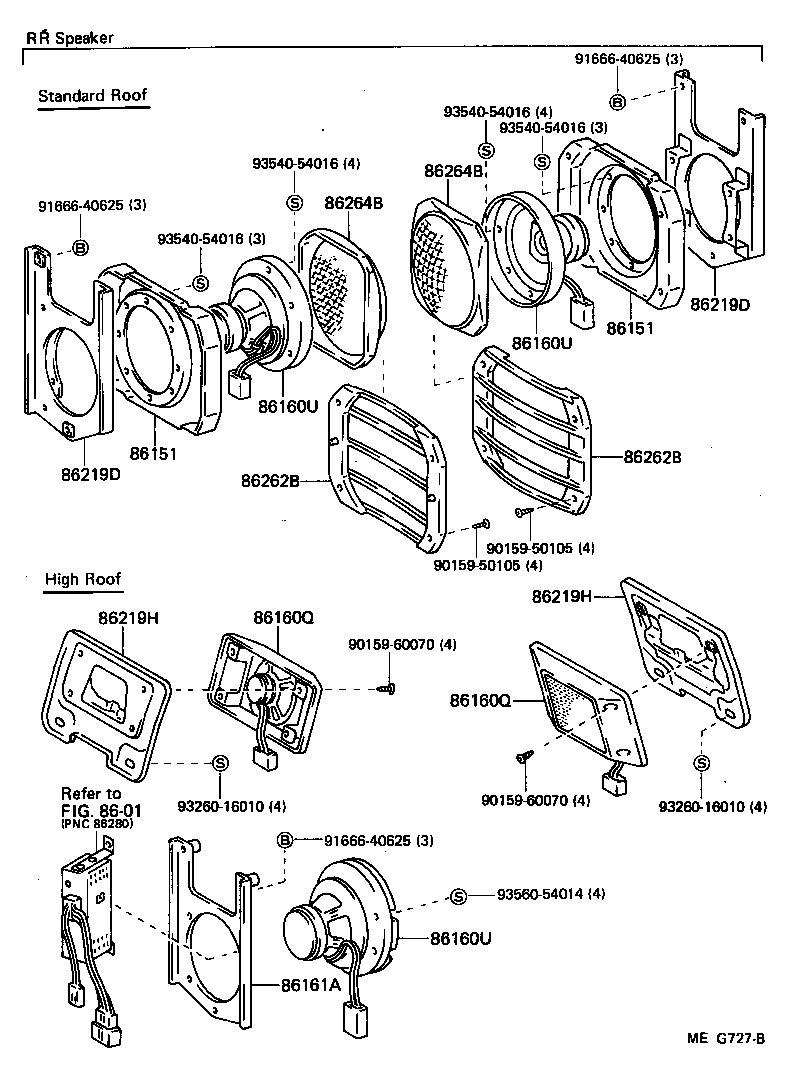

Click highlighted areas on diagram

diagram 8601 86151 86151 86160Q 86160Q 86160U 86160U 86160U 86161A 86219D 86219D 86219H 86219H 86262B 86262B 86264B 86264B 9015950105 9015950105 9015960070 9015960070 9166640625 9166640625 9166640625 9326016010 9326016010 9354054016 9354054016 9354054016 9354054016 9356054014
Part # Description Qty Price
Common parts
90159-50105
90159-60070
91666-40625
93260-16010
93540-54016
93560-54014
Linked diagrams
8601
