HJ60LG-MCZW (1985)
Toyota Land Cruiser
(8510- )12HT,2H

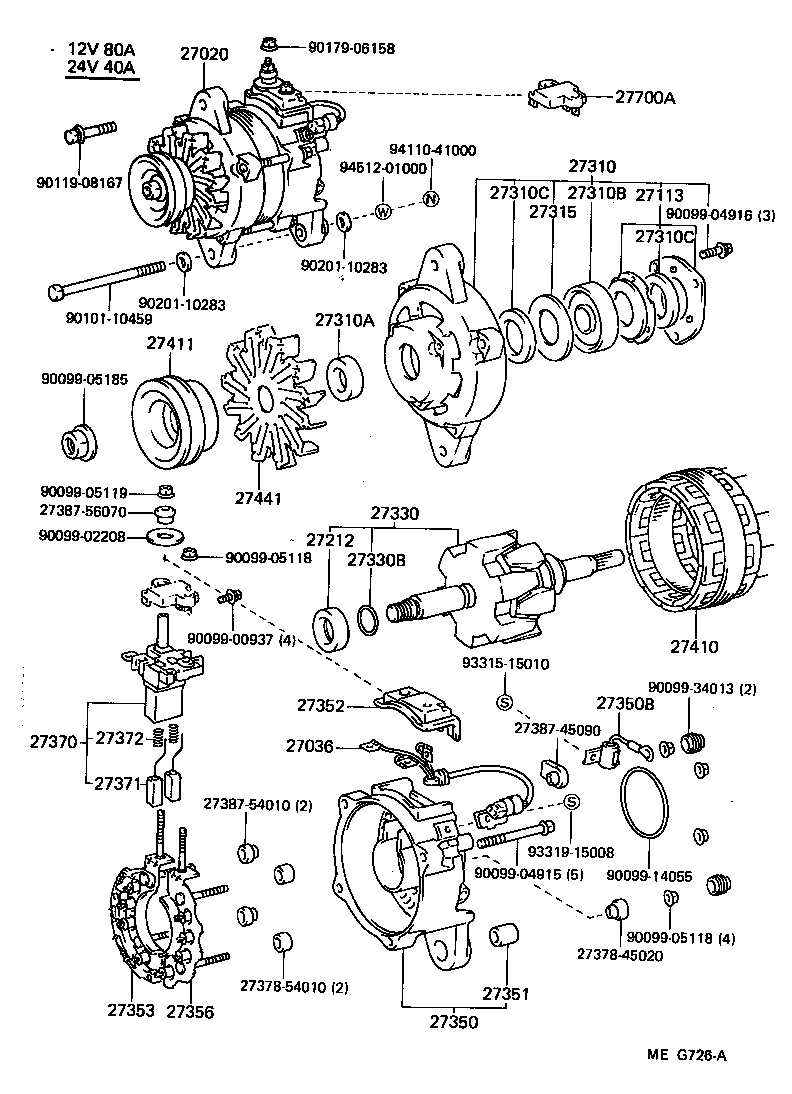

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-68020 |
2H..HJ60..EUR,GEN 24V 25A |
1 | ||
| 27020-68150 |
12HT,2H..HJ6#..EUR 24V 40A,24V 40A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2H..HJ60 12V 40A,45A,55A,24V 25A,30A |
1 | ||
| 27036-68150 |
12HT,2H..HJ6#..EUR 24V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27312-56070 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27412-54040 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-47060 |
2H..HJ60 12V 40A,24V 25A |
1 | ||
| 27310-68140 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19251 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 90099-19251 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 90099-10120 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 90099-02207 |
12HT,2H..HJ6# 12V 80A,24V 40A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 90099-02207 |
12HT,2H..HJ6# 12V 80A,24V 40A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 27315-56070 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54050 |
3B,2H..BJ60,HJ60..EUR,GEN 24V 25A |
1 | ||
| 27330-56110 |
2H..HJ60..EUR 24V 25A |
1 | ||
| 27330-56110 |
2H..HJ60..5F..EUR 24V 30A |
1 | ||
| 27330-68150 |
12HT,2H..HJ6#..EUR 24V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 90099-07108 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-47060 |
2H..HJ60 12V 40A,24V 25A |
1 | ||
| 27350-68140 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52082 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27351-56013 |
12HT,3B,2H..BJ60,HJ6# 12V 40A,45A,55A,24V 25A,30A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-56090 |
2H..HJ60 12V 40A,24V 25A |
1 | ||
| 27388-68140 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-68150 |
12HT,2H..HJ6#..EUR 24V 40A |
1 | ||
| 27353-54020 |
3B,2H..BJ60,HJ60 12V 40A,45A,55A,24V 25A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
3B,2H..BJ60,HJ60 12V 40A,45A,55A,24V 25A |
1 | ||
| 27356-68150 |
12HT,2H..HJ6#..EUR 24V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27373-57120 |
12HT,2H..HJ6#..EUR 24V 40A |
1 | ||
| 27370-54010 |
2H..HJ60 12V 40A,45A,55A,24V 25A,30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
12HT,2H..HJ6# 12V 80A,24V 40A |
2 | ||
| 27371-56070 |
12HT,2H..HJ6# 12V 40A,45A,55A,24V 25A,30A;12V 40A,24V 25A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
12HT,2H..HJ6# 12V 80A,24V 40A |
2 | ||
| 27372-56070 |
12HT,3B,2H..BJ60,HJ6# 12V 40A,45A,55A,24V 25A,30A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-57020 |
3B,2H..BJ60,HJ60..EUR,GEN 24V 25A |
1 | ||
| 27410-68150 |
12HT,2H..HJ6#..EUR 24V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-47060 |
2H..HJ60 12V 40A,24V 25A |
1 | ||
| 27411-68140 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54040 |
3B,2H..BJ60,HJ60 12V 40A,24V 25A |
1 | ||
| 27441-54070 |
12HT,2H..HJ6# 12V 80A,24V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57010 |
3B,2H..BJ60,HJ60..EUR,GEN 24V,STD TYPE |
1 | ||
| 27700-57090 |
12HT,2H..HJ6#..5F..EUR 24V,STD TYPE |
1 | ||
| 27700-57090 |
12HT,2H..HJ6#..EUR 24V,STD TYPE |
1 | ||
| 27700-57050 |
12HT,2H..HJ6#..EUR 24V IC TYPE |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-00937 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-14056 | ||||
| 90099-34013 | ||||
| 90101-10459 | ||||
| 90119-08167 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 93315-15010 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
