HJ60LG-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Aug 1987
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )LHD

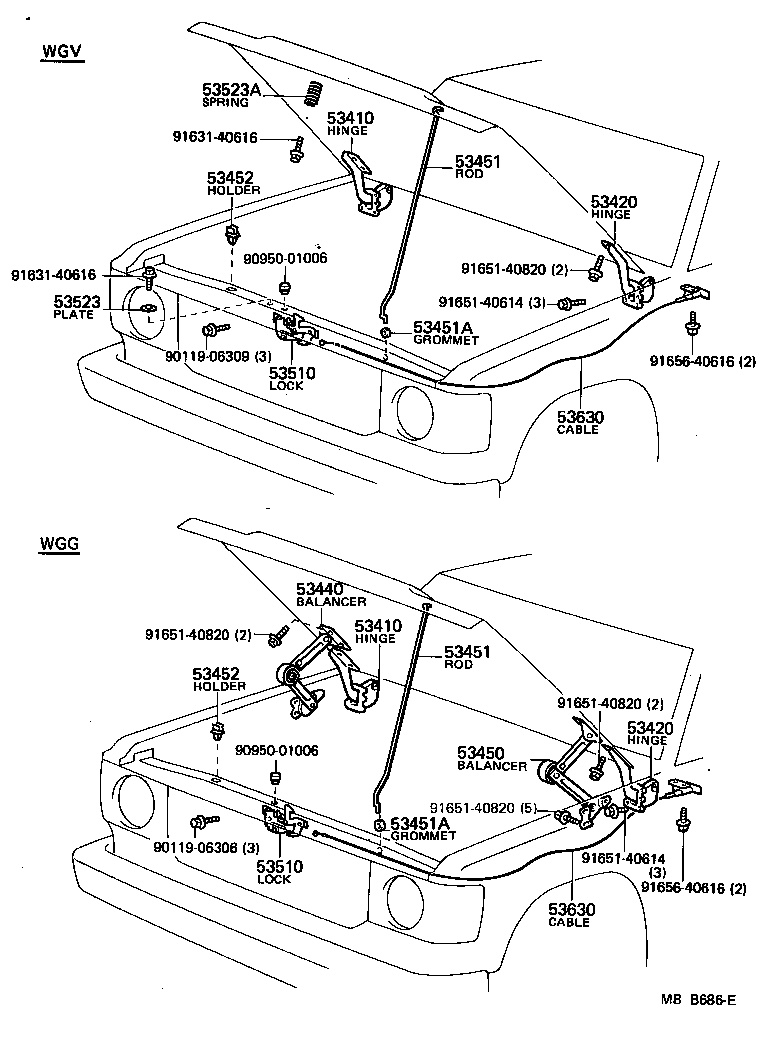

Click highlighted areas on diagram

diagram 53410 53410 53420 53420 53440 53450 53451 53451 53451A 53451A 53452 53452 53510 53510 53523 53523A 53630 53630 9011906306 9011906309 9095001006 9095001006 9163140616 9163140616 9165140614 9165140614 9165140820 9165140820 9165140820 9165140820 9165640616 9165640616
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-90A00

BJ60,FJ6#,HJ6#

 1
53410-90A01

HJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61

 1
53410 - HINGE ASSY, HOOD, RH
53410-90A00

BJ60,FJ6#,HJ6#

 1
53410-90A01

HJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61

 1
53420 - HINGE ASSY, HOOD, LH
53420-90A01

HJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61

 1
53420-90A00

BJ60,FJ6#,HJ6#

 1
53420 - HINGE ASSY, HOOD, LH
53420-90A01

HJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61

 1
53420-90A00

BJ60,FJ6#,HJ6#

 1
53440 - BALANCER ASSY, HOOD, RH
53440-90A00

FJ6#,HJ6#..WGG

 1
53450 - BALANCER ASSY, HOOD, LH
53450-90A00

FJ6#,HJ6#..WGG

 1
53451 - ROD, HOOD SUPPORT
53451-90A00

BJ60,FJ6#,HJ6#

 1
53451 - ROD, HOOD SUPPORT
53451-90A00

BJ60,FJ6#,HJ6#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15002

BJ60,FJ6#,HJ6#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15002

BJ60,FJ6#,HJ6#

 1
53452 - HOLDER, HOOD STAY
53452-90351

BJ60,FJ6#,HJ6#

 1
53452 - HOLDER, HOOD STAY
53452-90351

BJ60,FJ6#,HJ6#

 1
53510 - LOCK ASSY, HOOD
53510-90A01

BJ60,FJ6#,HJ6#..LHD

 1
53510 - LOCK ASSY, HOOD
53510-90A01

BJ60,FJ6#,HJ6#..LHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-90A00

BJ60,FJ60,HJ60

 1
53630-90A01

BJ60,FJ6#,HJ6#..LHD

 1
53630-90A01

BJ60,FJ60,HJ60

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-90A00

BJ60,FJ60,HJ60

 1
53630-90A01

BJ60,FJ6#,HJ6#..LHD

 1
53630-90A01

BJ60,FJ60,HJ60

 1
Common parts
90119-06306
90119-06309
90950-01006
91631-40616
91651-40614
91651-40820
91656-40616
