HJ60LG-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Aug 1987
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

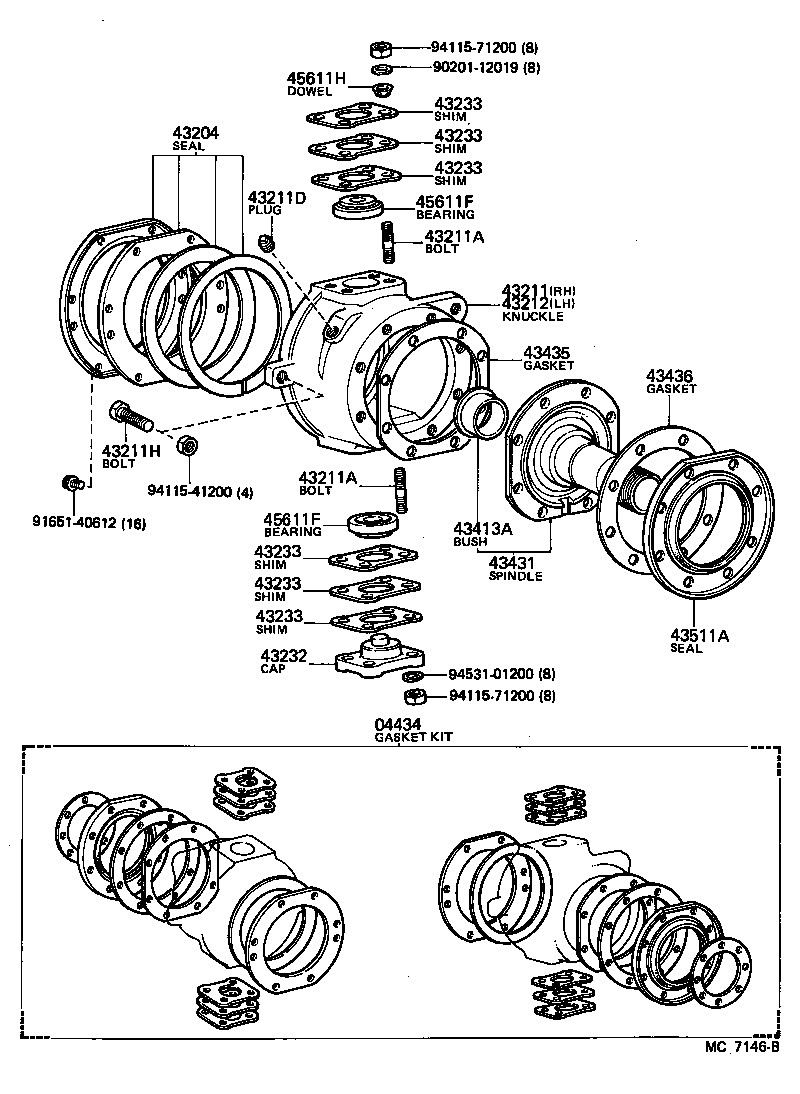

Click highlighted areas on diagram

diagram 04434 43204 43211 43211A 43211A 43211D 43211H 43212 43232 43233 43233 43233 43233 43233 43233 43413A 43431 43435 43436 43511A 45611F 45611F 45611H 9020112019 9165140612 9411541200 9411571200 9411571200 9453101200
Part # Description Qty Price
04434 - GASKET KIT, FRONT AXLE OVERHAUL
04434-60012

BJ60,FJ6#,HJ6#

 1
43204 - SEAL SUB-ASSY, STEERING KNUCKLE OIL
43204-60020

BJ60,FJ6#,HJ6#

 2
43211 - KNUCKLE, STEERING, RH
43211-60040

BJ60,FJ6#,HJ60..GEN

DRUM BRAKE

 1
43211-60050

BJ60,FJ6#,HJ6#

DISC BRAKE

 1
43211A - BOLT, STUD (FOR STEERING SET)
90116-12007

BJ60,FJ6#,HJ6#

 16
43211A - BOLT, STUD (FOR STEERING SET)
90116-12007

BJ60,FJ6#,HJ6#

 16
43211D - PLUG (FOR STEERING KNUCKLE)
90345-53020

BJ60,FJ6#,HJ6#

 2
43211H - BOLT, ROUND HEXAGON
90106-12022

BJ60,FJ6#,HJ6#

 4
43212 - KNUCKLE, STEERING, LH
43212-60040

BJ60,FJ6#,HJ60..GEN

DRUM BRAKE

 1
43212-60050

BJ60,FJ6#,HJ6#

DISC BRAKE

 1
43232 - CAP, STEERING KNUCKLE BEARING
43232-60021

BJ60,FJ60,HJ60

 2
43232-35010

BJ60,FJ6#,HJ6#

 2
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
43233-60011

BJ60,FJ6#,HJ6#

T=0.20,T=0.2

 1
43235-60010

BJ60,FJ6#,HJ6#

T=1.0,T=1.0

 1
43237-60030

BJ60,FJ6#,HJ6#

T=0.30,T=0.3

 1
43236-60010

BJ60,FJ6#,HJ6#

T=0.1,T=0.1

 1
43234-60011

BJ60,FJ6#,HJ6#

T=0.50,T=0.5

 1
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
43233-60011

BJ60,FJ6#,HJ6#

T=0.20,T=0.2

 1
43235-60010

BJ60,FJ6#,HJ6#

T=1.0,T=1.0

 1
43237-60030

BJ60,FJ6#,HJ6#

T=0.30,T=0.3

 1
43236-60010

BJ60,FJ6#,HJ6#

T=0.1,T=0.1

 1
43234-60011

BJ60,FJ6#,HJ6#

T=0.50,T=0.5

 1
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
43233-60011

BJ60,FJ6#,HJ6#

T=0.20,T=0.2

 1
43235-60010

BJ60,FJ6#,HJ6#

T=1.0,T=1.0

 1
43237-60030

BJ60,FJ6#,HJ6#

T=0.30,T=0.3

 1
43236-60010

BJ60,FJ6#,HJ6#

T=0.1,T=0.1

 1
43234-60011

BJ60,FJ6#,HJ6#

T=0.50,T=0.5

 1
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
43233-60011

BJ60,FJ6#,HJ6#

T=0.20,T=0.2

 1
43235-60010

BJ60,FJ6#,HJ6#

T=1.0,T=1.0

 1
43237-60030

BJ60,FJ6#,HJ6#

T=0.30,T=0.3

 1
43236-60010

BJ60,FJ6#,HJ6#

T=0.1,T=0.1

 1
43234-60011

BJ60,FJ6#,HJ6#

T=0.50,T=0.5

 1
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
43233-60011

BJ60,FJ6#,HJ6#

T=0.20,T=0.2

 1
43235-60010

BJ60,FJ6#,HJ6#

T=1.0,T=1.0

 1
43237-60030

BJ60,FJ6#,HJ6#

T=0.30,T=0.3

 1
43236-60010

BJ60,FJ6#,HJ6#

T=0.1,T=0.1

 1
43234-60011

BJ60,FJ6#,HJ6#

T=0.50,T=0.5

 1
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
43233-60011

BJ60,FJ6#,HJ6#

T=0.20,T=0.2

 1
43235-60010

BJ60,FJ6#,HJ6#

T=1.0,T=1.0

 1
43237-60030

BJ60,FJ6#,HJ6#

T=0.30,T=0.3

 1
43236-60010

BJ60,FJ6#,HJ6#

T=0.1,T=0.1

 1
43234-60011

BJ60,FJ6#,HJ6#

T=0.50,T=0.5

 1
43413A - BUSH, SOLID (FOR DRIVE SHAFT)
90999-70067

BJ60,FJ6#,HJ6#

 2
43431 - SPINDLE, STEERING KNUCKLE
43401-60012

BJ60,FJ6#,HJ6#

 2
43435 - GASKET, KNUCKLE SPINDLE
43435-60011

BJ60,FJ6#,HJ6#

 2
43436 - GASKET, KNUCKLE SPINDLE OIL RETAINER
43436-60011

BJ60,FJ6#,HJ6#

 2
43511A - SEAL, DUST (FOR FRONT AXLE HUB)
90313-93011

BJ60,FJ6#,HJ6#

 2
45611F - BEARING(FOR STEERING KNUCKLE ARM)
97610-30303

BJ60,FJ60,HJ60

 4
90366-17001

BJ60,FJ6#,HJ6#

 4
45611F - BEARING(FOR STEERING KNUCKLE ARM)
97610-30303

BJ60,FJ60,HJ60

 4
90366-17001

BJ60,FJ6#,HJ6#

 4
45611H - DOWEL, SPLIT(FOR STEERING KNUCKLE ARM)
42323-60020

BJ60,FJ6#,HJ6#

 8
Common parts
90201-12019
91651-40612
94115-41200
94115-71200
94531-01200
