HJ60LG-K (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Aug 1987
Engine
2H
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

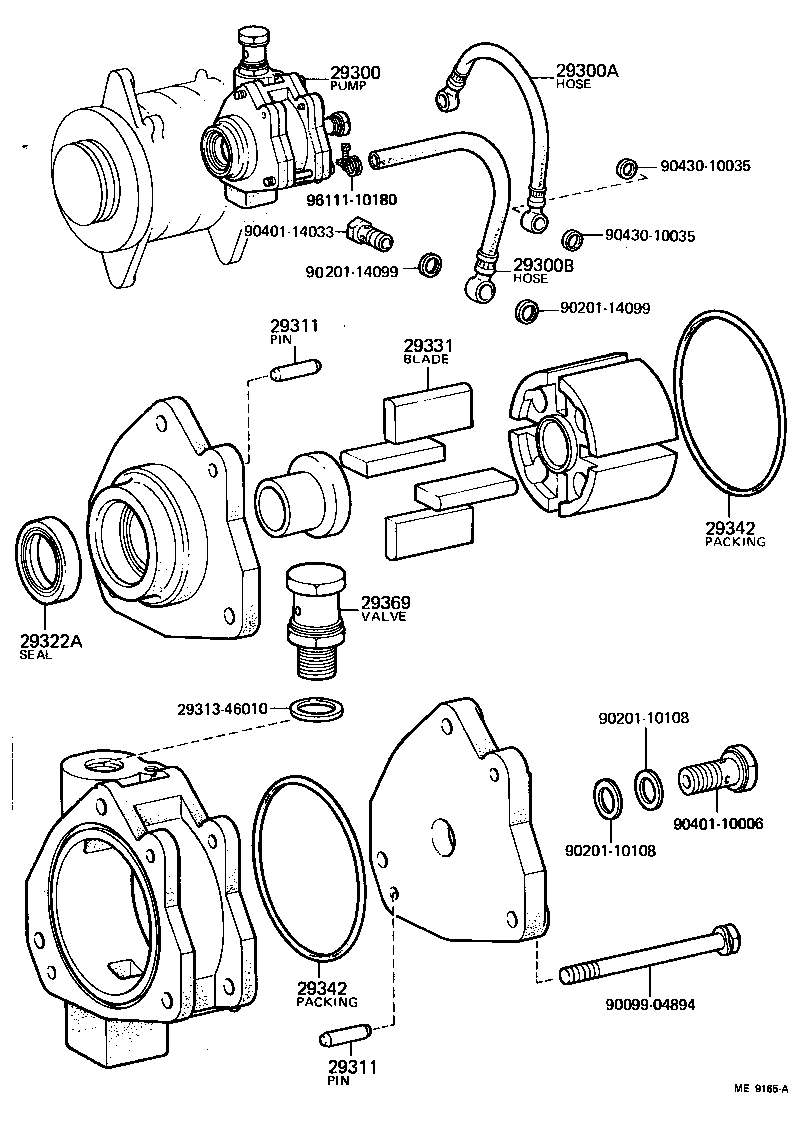

(8008-8210)2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-54040 |
2H..HJ60 |
1 | ||
| 29300-68010 |
12HT,2H..HJ6# |
1 | ||
| 29300A - HOSE, VACUUM PUMP OIL INLET | ||||
| 90923-02100 |
2H..HJ60 |
1 | ||
| 90923-02070 |
2H..HJ60 |
1 | ||
| 90923-02064 |
2H..HJ60 |
1 | ||
| 29300B - HOSE, VACUUM PUMP OIL OUTLET | ||||
| 90923-02063 |
2H..HJ60 |
1 | ||
| 90923-02079 |
12HT,2H..HJ6# |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 90099-08082 |
2H..HJ60 |
4 | ||
| 29311-76010 |
12HT,2H..HJ6# |
1 | ||
| 90099-08082 |
3B,2H..BJ60,HJ60 |
4 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 90099-08082 |
2H..HJ60 |
4 | ||
| 29311-76010 |
12HT,2H..HJ6# |
1 | ||
| 90099-08082 |
3B,2H..BJ60,HJ60 |
4 | ||
| 29322A - SEAL, VACUUM PUMP OIL | ||||
| 90099-15017 |
3B,2H..BJ60,HJ60 |
1 | ||
| 90099-15017 |
2H..HJ60 |
1 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-56010 |
3B,2H..BJ60,HJ60 |
4 | ||
| 29331-56070 |
12HT,2H..HJ6# |
4 | ||
| 29331-56010 |
2H..HJ60 |
4 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 96740-02063 |
12HT,2H..HJ6# |
2 | ||
| 96740-02063 |
3B,2H..BJ60,HJ60 |
2 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 96740-02063 |
12HT,2H..HJ6# |
2 | ||
| 96740-02063 |
3B,2H..BJ60,HJ60 |
2 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-54010 |
2H..HJ60 |
1 | ||
| 29369-56070 |
12HT,2H..HJ6# |
1 | ||
| 29369-54010 |
3B,2H..BJ60,HJ60 |
1 | ||
| Common parts | ||||
| 29313-46010 | ||||
| 90099-04894 | ||||
| 90201-10108 | ||||
| 90201-14099 | ||||
| 90401-10006 | ||||
| 90401-14033 | ||||
| 90430-10035 | ||||
| 96111-10180 | ||||

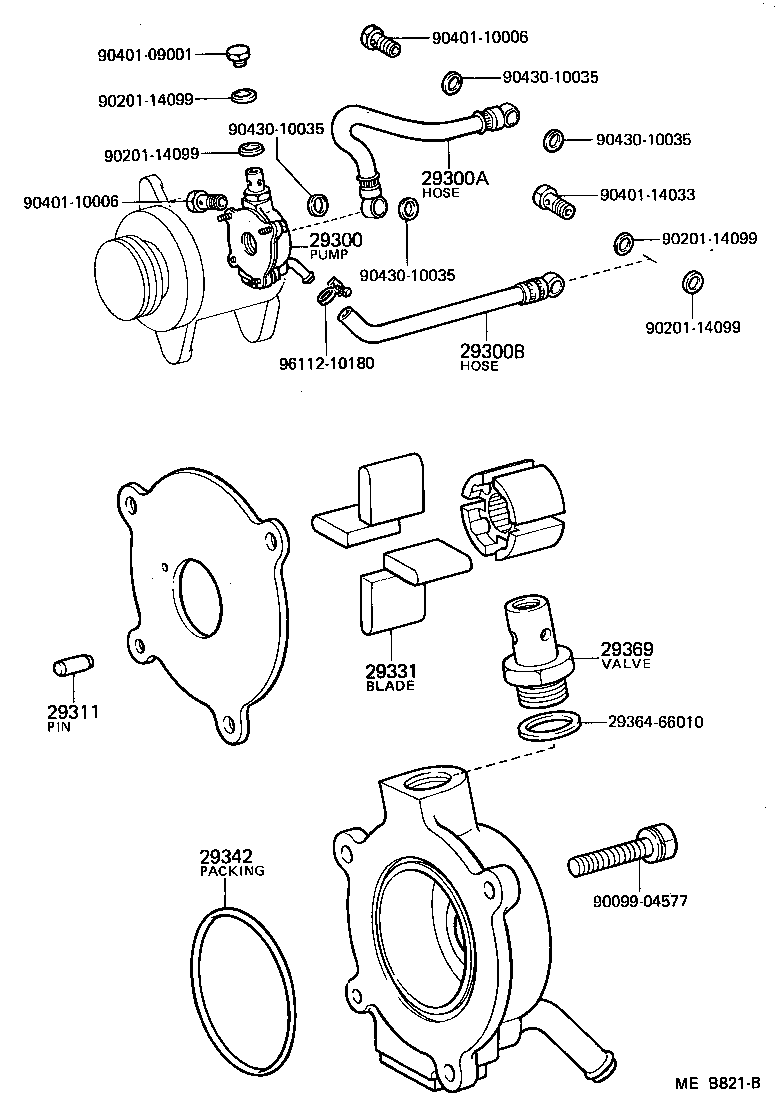

(8204- )3B ; (8210- )12HT,2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-54040 |
2H..HJ60 |
1 | ||
| 29300-68010 |
12HT,2H..HJ6# |
1 | ||
| 29300A - HOSE, VACUUM PUMP OIL INLET | ||||
| 90923-02100 |
2H..HJ60 |
1 | ||
| 90923-02070 |
2H..HJ60 |
1 | ||
| 90923-02064 |
2H..HJ60 |
1 | ||
| 29300B - HOSE, VACUUM PUMP OIL OUTLET | ||||
| 90923-02079 |
12HT,2H..HJ6# |
1 | ||
| 90923-02063 |
2H..HJ60 |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 90099-08082 |
2H..HJ60 |
4 | ||
| 29311-76010 |
12HT,2H..HJ6# |
1 | ||
| 90099-08082 |
3B,2H..BJ60,HJ60 |
4 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-56010 |
3B,2H..BJ60,HJ60 |
4 | ||
| 29331-56070 |
12HT,2H..HJ6# |
4 | ||
| 29331-56010 |
2H..HJ60 |
4 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 96740-02063 |
12HT,2H..HJ6# |
2 | ||
| 96740-02063 |
3B,2H..BJ60,HJ60 |
2 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-54010 |
2H..HJ60 |
1 | ||
| 29369-56070 |
12HT,2H..HJ6# |
1 | ||
| 29369-54010 |
3B,2H..BJ60,HJ60 |
1 | ||
| Common parts | ||||
| 29364-66010 | ||||
| 90099-04577 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90401-10006 | ||||
| 90401-14033 | ||||
| 90430-10035 | ||||
| 96112-10180 | ||||
