HJ47RV-KCQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8506)2H

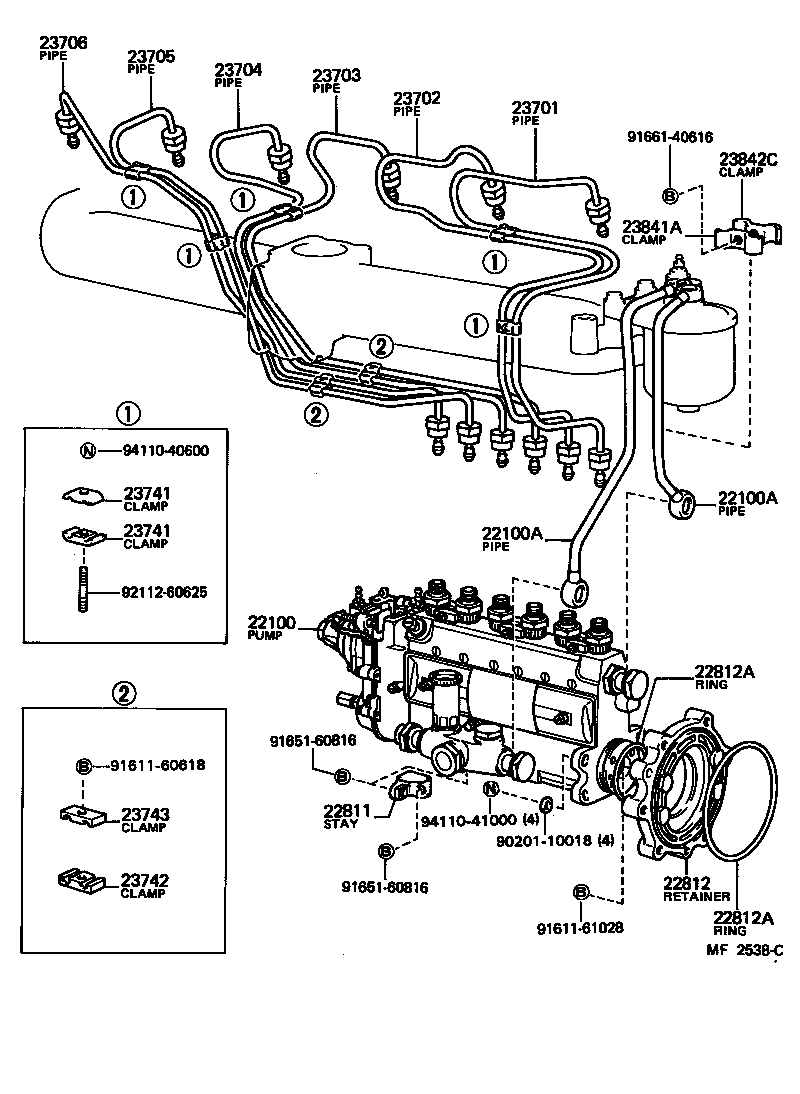

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 22812 22812A 22812A 23701 23702 23703 23704 23705 23706 23741 23741 23742 23743 23841A 23842C 9020110018 9161160618 9161161028 9165160816 9165160816 9166140616 9211260625 9411040600 9411041000
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-68040

2H..HJ47

W/EDIC & HAC

 1
22100-68020

2H..HJ47

W/EDIC

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23802-68010

2H..HJ47

FILTER TO PUMP BODY

 1
23801-68020

2H..HJ47

PUMP TO FILTER W/TWIN FILTER

 1
23801-68010

2H..HJ47

FEED PUMP TO FILTER

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23802-68010

2H..HJ47

FILTER TO PUMP BODY

 1
23801-68020

2H..HJ47

PUMP TO FILTER W/TWIN FILTER

 1
23801-68010

2H..HJ47

FEED PUMP TO FILTER

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-68010

2H..HJ47

 1
22812 - RETAINER, INJECTION PUMP
22812-68010

2H..HJ47

 1
22812A - RING, O
90301-64004

2H..HJ47

OD=64.5 PUMP SIDE

 1
90301-99013

2H..HJ47

OD=129.4 CASE SIDE

 1
22812A - RING, O
90301-64004

2H..HJ47

OD=64.5 PUMP SIDE

 1
90301-99013

2H..HJ47

OD=129.4 CASE SIDE

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-68010

2H..HJ47

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-68010

2H..HJ47

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-68010

2H..HJ47

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-68010

2H..HJ47

 1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-68010

2H..HJ47

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-68010

2H..HJ47

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2H..HJ47

 10
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2H..HJ47

 10
23742 - CLAMP, INJECTION PIPE, NO.2
23742-46010

2H..HJ47

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23741-46010

2H..HJ47

 2
23841A - CLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
23841-56010

2H..HJ47

 1
23842C - CLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP)
23842-56010

2H..HJ47

 1
Common parts
90201-10018
91611-60618
91611-61028
91651-60816
91661-40616
92112-60625
94110-40600
94110-41000

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 22811 22821 23701 23702 23703 23704 23741 23741 9004179064 9017906070 9017908060 9161161016 9161161016 9165160816 9212260625
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-68040

2H..HJ47

W/EDIC & HAC

 1
22100-68020

2H..HJ47

W/EDIC

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23802-68010

2H..HJ47

FILTER TO PUMP BODY

 1
23801-68020

2H..HJ47

PUMP TO FILTER W/TWIN FILTER

 1
23801-68010

2H..HJ47

FEED PUMP TO FILTER

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23802-68010

2H..HJ47

FILTER TO PUMP BODY

 1
23801-68020

2H..HJ47

PUMP TO FILTER W/TWIN FILTER

 1
23801-68010

2H..HJ47

FEED PUMP TO FILTER

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-68010

2H..HJ47

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-68010

2H..HJ47

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-68010

2H..HJ47

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-68010

2H..HJ47

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-68010

2H..HJ47

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-68010

2H..HJ47

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2H..HJ47

 10
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2H..HJ47

 10
Common parts
90041-79064
90179-06070
90179-08060
91611-61016
91651-60816
92122-60625
