HJ47RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

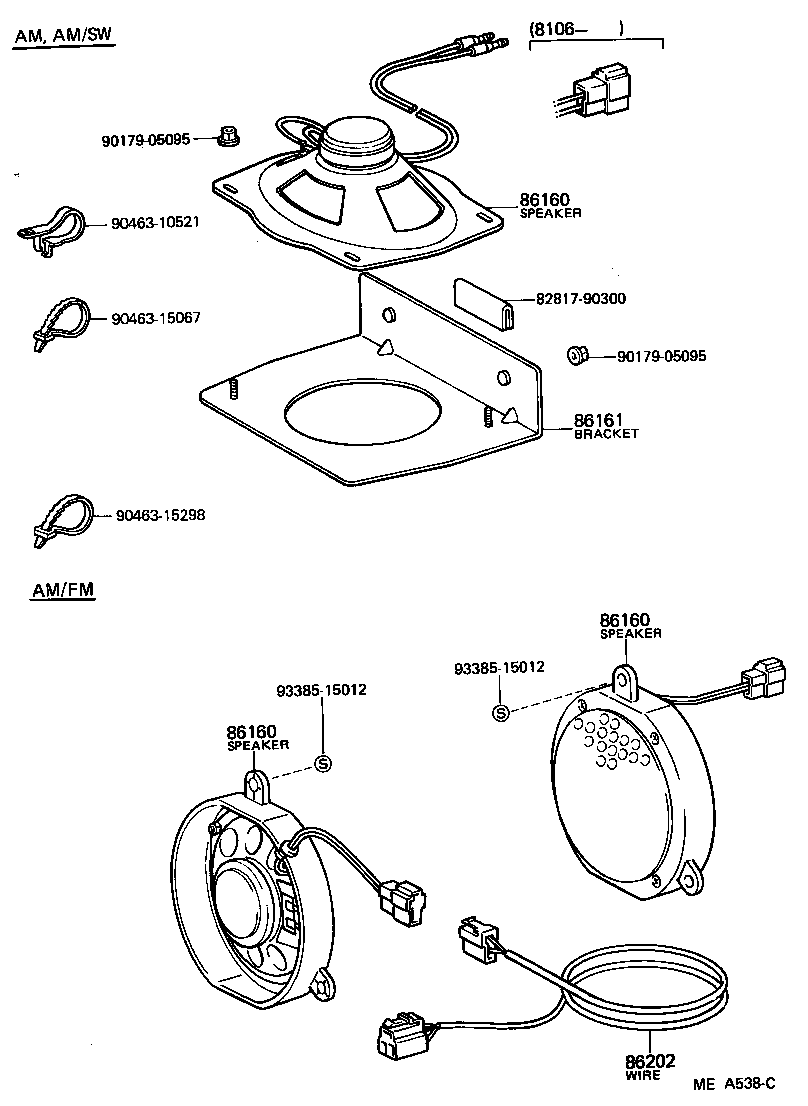

Click highlighted areas on diagram

diagram 8281790300 86160 86160 86160 86161 86202 9017905095 9017905095 9046310521 9046315067 9046315298 9338515012 9338515012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-60011

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86160-60012

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-60011

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86160-60012

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-60011

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86160-60012

FJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN

12V,AM

 1
86161 - BRACKET, SPEAKER, FRONT NO.1
86102-90301

BJ4#,FJ4#,HJ47

 1
Common parts
82817-90300
90179-05095
90463-10521
90463-15067
90463-15298
93385-15012
