HJ47RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

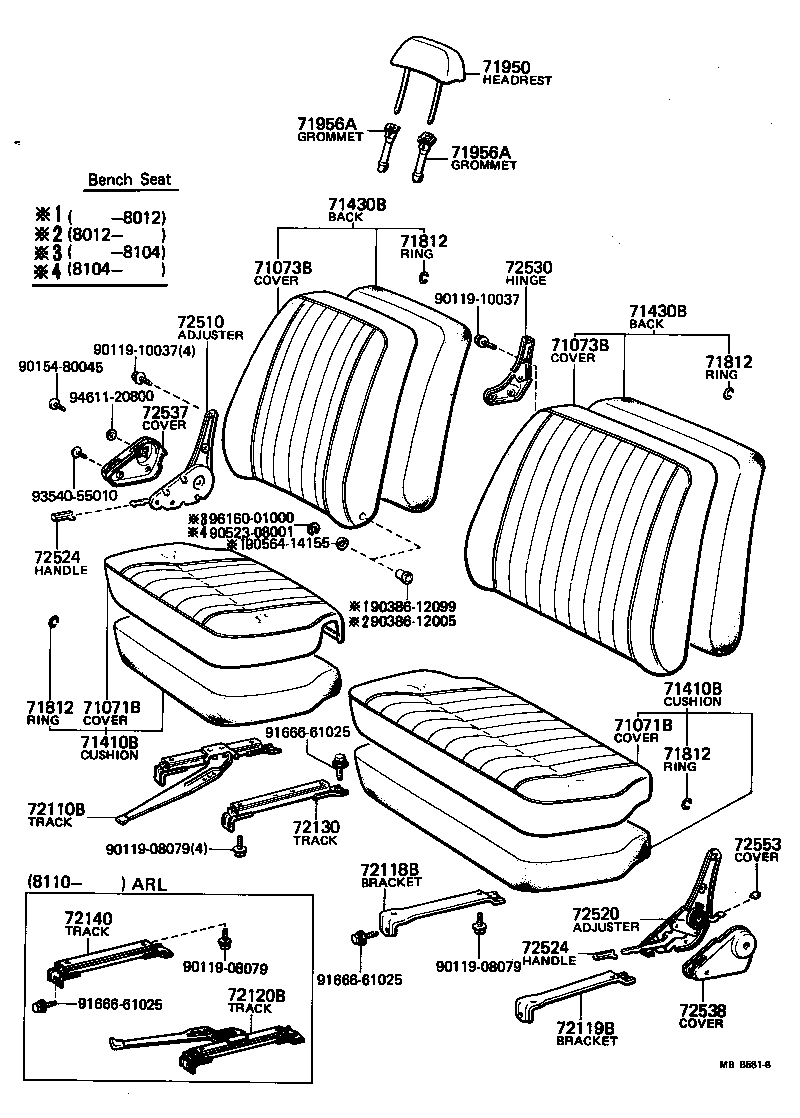

(8008- )RHD..TP,V

Click highlighted areas on diagram

diagram 71071B 71071B 71073B 71073B 71410B 71410B 71430B 71430B 71812 71812 71812 71812 71950 71956A 71956A 72110B 72118B 72119B 72120B 72130 72140 72510 72520 72524 72524 72530 72537 72538 72553 9011908079 9011908079 9011908079 9011910037 9011910037 9015480045 9038612005 9038612099 9052308001 9056414155 9166661025 9166661025 9166661025 9354055010 9461120800 9616001000
Part # Description Qty Price
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71072-90344

BJ4#,FJ4#,HJ47..RHD

LH

 1
71071-90344

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

RH

 1
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71072-90344

BJ4#,FJ4#,HJ47..RHD

LH

 1
71071-90344

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

RH

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71073-90078

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

RH

 1
71074-90078

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

LH

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71073-90078

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

RH

 1
71074-90078

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

LH

 1
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-90081

BJ4#,FJ4#,HJ47..RHD

RH

 1
71460-90081

BJ4#,FJ4#,HJ47..RHD

LH

 1
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-90081

BJ4#,FJ4#,HJ47..RHD

RH

 1
71460-90081

BJ4#,FJ4#,HJ47..RHD

LH

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71480-90084

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

LH

 1
71430-90084

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

RH

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71480-90084

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

LH

 1
71430-90084

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

RH

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71950 - HEADREST ASSY, FRONT SEAT
71950-90301

BJ4#,FJ4#,HJ47..TP,V

GRAY

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002001

BJ4#,FJ4#,HJ47..TP,V

W/O(LOCK),W/O LOCK,BLACK,BLACK

 2
71990-3002001

BJ4#,FJ4#,HJ47..TP,V

W(LOCK),W/LOCK,BLACK,BLACK

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002001

BJ4#,FJ4#,HJ47..TP,V

W/O(LOCK),W/O LOCK,BLACK,BLACK

 2
71990-3002001

BJ4#,FJ4#,HJ47..TP,V

W(LOCK),W/LOCK,BLACK,BLACK

 2
72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110-90333

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-90333

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
72140 - TRACK ASSY, LH SEAT, INNER
72130-90333

BJ4#,FJ4#,HJ47..RHD..(TP,V)..GEN

SEPARATE SEAT

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-90300

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72560-90300

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

W/O SEAT TRACK

 1
72560-90301

BJ4#,FJ4#,HJ47..RHD..(TP,V)..GEN

W/SEAT TRACK

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401001

BJ4#,FJ4#,HJ47

RH,BLACK,BLACK

 1
72526-1401001

BJ4#,FJ4#,HJ47

LH,BLACK,BLACK

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401001

BJ4#,FJ4#,HJ47

RH,BLACK,BLACK

 1
72526-1401001

BJ4#,FJ4#,HJ47

LH,BLACK,BLACK

 1
72530 - HINGE ASSY, PASSENGER SEAT
72580-90300

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
72537 - COVER, RECLINING HINGE OUTER, RH
71821-90300

BJ4#,FJ4#,HJ47

GRAY

 1
72538 - COVER, RECLINING HINGE OUTER, LH
71822-90300

BJ4#,FJ4#,HJ47

GRAY

 1
72553 - COVER, RECLINING PEDAL
72553-12020

BJ4#,FJ4#,HJ47..TP,V

 1
Common parts
90119-08079
90119-10037
90154-80045
90386-12005
90386-12099
90523-08001
90564-14155
91666-61025
93540-55010
94611-20800
96160-01000

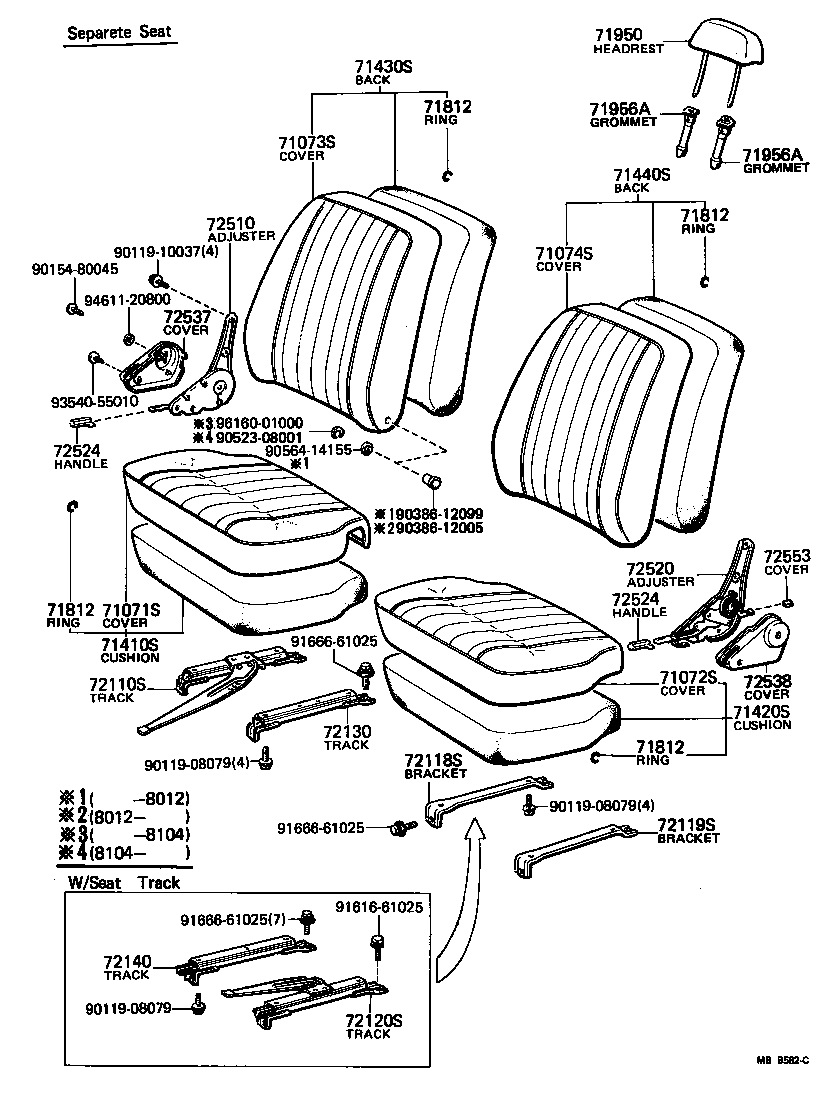

(8008- )RHD..TP,V..GEN

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71812 71812 71812 71812 71950 71956A 71956A 72110S 72118S 72119S 72120S 72130 72140 72510 72520 72524 72524 72537 72538 72553 9011908079 9011908079 9011908079 9011910037 9015480045 9038612005 9038612099 9052308001 9056414155 9161661025 9166661025 9166661025 9166661025 9354055010 9461120800 9616001000
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-90344

BJ4#,FJ4#,HJ47..EUR,GEN

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-90344

BJ4#,FJ4#,HJ47..EUR,GEN

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-90078

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-90082

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-90081

BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)..(EUR,GEN)

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-90081

BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)..(EUR,GEN)

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-90084

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-90084

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

BJ4#,FJ4#,HJ47

 1
71950 - HEADREST ASSY, FRONT SEAT
71950-90301

BJ4#,FJ4#,HJ47..TP,V

GRAY

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002001

BJ4#,FJ4#,HJ47..TP,V

W/O(LOCK),W/O LOCK,BLACK,BLACK

 2
71990-3002001

BJ4#,FJ4#,HJ47..TP,V

W(LOCK),W/LOCK,BLACK,BLACK

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002001

BJ4#,FJ4#,HJ47..TP,V

W/O(LOCK),W/O LOCK,BLACK,BLACK

 2
71990-3002001

BJ4#,FJ4#,HJ47..TP,V

W(LOCK),W/LOCK,BLACK,BLACK

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-90333

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
72118S - BRACKET, LH SEAT SET INSIDE (FOR SEPARATE SEAT)
71084-90300

BJ4#,FJ4#,HJ47..RHD..(TP,V)..GEN

 1
72119S - BRACKET, LH SEAT SET OUTSIDE (FOR SEPARATE SEAT)
71081-90300

BJ4#,FJ4#,HJ47..RHD..(TP,V)..GEN

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-90333

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-90333

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
72140 - TRACK ASSY, LH SEAT, INNER
72130-90333

BJ4#,FJ4#,HJ47..RHD..(TP,V)..GEN

SEPARATE SEAT

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-90300

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72560-90300

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD..(TP,V)

W/O SEAT TRACK

 1
72560-90301

BJ4#,FJ4#,HJ47..RHD..(TP,V)..GEN

W/SEAT TRACK

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401001

BJ4#,FJ4#,HJ47

RH,BLACK,BLACK

 1
72526-1401001

BJ4#,FJ4#,HJ47

LH,BLACK,BLACK

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401001

BJ4#,FJ4#,HJ47

RH,BLACK,BLACK

 1
72526-1401001

BJ4#,FJ4#,HJ47

LH,BLACK,BLACK

 1
72537 - COVER, RECLINING HINGE OUTER, RH
71821-90300

BJ4#,FJ4#,HJ47

GRAY

 1
72538 - COVER, RECLINING HINGE OUTER, LH
71822-90300

BJ4#,FJ4#,HJ47

GRAY

 1
72553 - COVER, RECLINING PEDAL
72553-12020

BJ4#,FJ4#,HJ47..TP,V

 1
Common parts
90119-08079
90119-10037
90154-80045
90386-12005
90386-12099
90523-08001
90564-14155
91616-61025
91666-61025
93540-55010
94611-20800
96160-01000

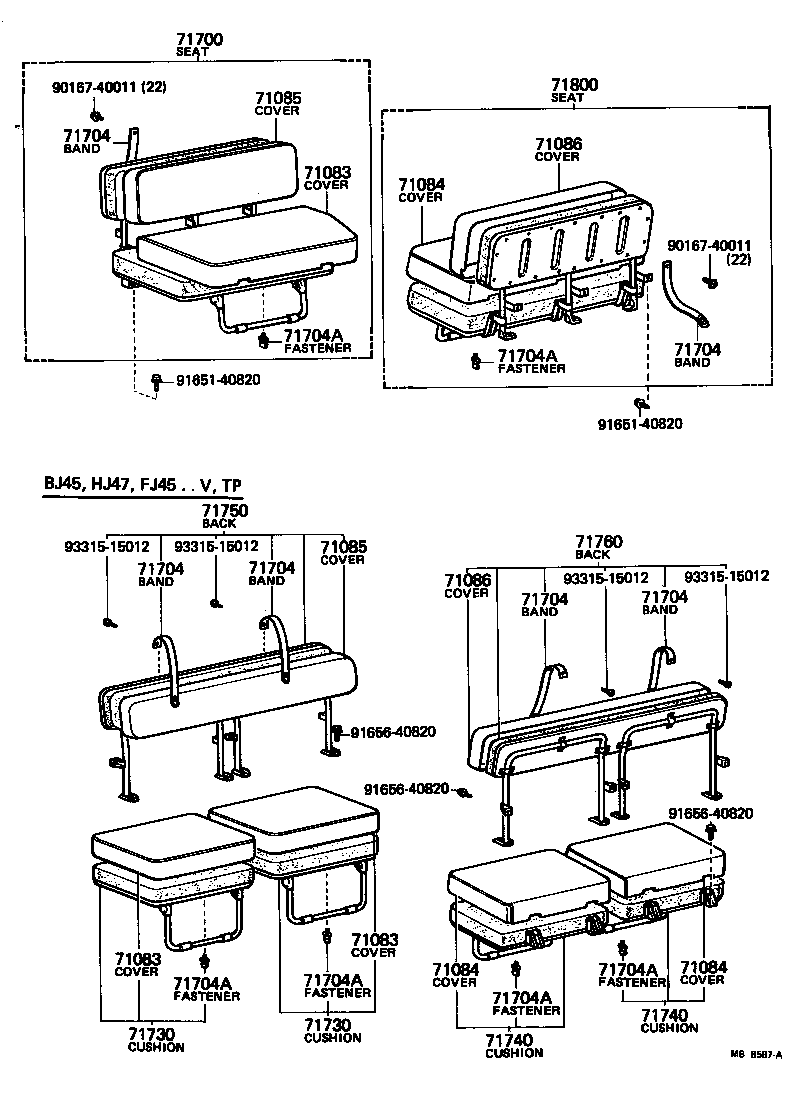

(8008- )TP,V

Click highlighted areas on diagram

diagram 71083 71083 71083 71084 71084 71084 71085 71085 71086 71086 71700 71704 71704 71704 71704 71704 71704 71704A 71704A 71704A 71704A 71704A 71704A 71730 71730 71740 71740 71750 71760 71800 9016740011 9016740011 9165140820 9165140820 9165640820 9165640820 9165640820 9331515012 9331515012 9331515012 9331515012
Part # Description Qty Price
71083 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH
71071-90346

BJ45,FJ45,HJ47..VKC

 2
71083 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH
71071-90346

BJ45,FJ45,HJ47..VKC

 2
71083 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH
71071-90346

BJ45,FJ45,HJ47..VKC

 2
71084 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH
71071-90346

BJ45,FJ45,HJ47..VKC

 2
71084 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH
71071-90346

BJ45,FJ45,HJ47..VKC

 2
71084 - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH
71071-90346

BJ45,FJ45,HJ47..VKC

 2
71085 - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH
71073-90082

BJ45,FJ45,HJ47..VKC

 1
71085 - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH
71073-90082

BJ45,FJ45,HJ47..VKC

 1
71086 - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH
71073-90082

BJ45,FJ45,HJ47..VKC

 1
71086 - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH
71073-90082

BJ45,FJ45,HJ47..VKC

 1
71704 - BAND SUB-ASSY, REAR SIDE SEAT
71609-90302

BJ45,FJ45,HJ47..VKC

 4
71704 - BAND SUB-ASSY, REAR SIDE SEAT
71609-90302

BJ45,FJ45,HJ47..VKC

 4
71704 - BAND SUB-ASSY, REAR SIDE SEAT
71609-90302

BJ45,FJ45,HJ47..VKC

 4
71704 - BAND SUB-ASSY, REAR SIDE SEAT
71609-90302

BJ45,FJ45,HJ47..VKC

 4
71704 - BAND SUB-ASSY, REAR SIDE SEAT
71609-90302

BJ45,FJ45,HJ47..VKC

 4
71704 - BAND SUB-ASSY, REAR SIDE SEAT
71609-90302

BJ45,FJ45,HJ47..VKC

 4
71704A - FASTENER, SEAT (FOR SIDE SEAT)
65928-60010

BJ4#,FJ4#,HJ47..TP,V

 4
71704A - FASTENER, SEAT (FOR SIDE SEAT)
65928-60010

BJ4#,FJ4#,HJ47..TP,V

 4
71704A - FASTENER, SEAT (FOR SIDE SEAT)
65928-60010

BJ4#,FJ4#,HJ47..TP,V

 4
71704A - FASTENER, SEAT (FOR SIDE SEAT)
65928-60010

BJ4#,FJ4#,HJ47..TP,V

 4
71704A - FASTENER, SEAT (FOR SIDE SEAT)
65928-60010

BJ4#,FJ4#,HJ47..TP,V

 4
71704A - FASTENER, SEAT (FOR SIDE SEAT)
65928-60010

BJ4#,FJ4#,HJ47..TP,V

 4
71730 - CUSHION ASSY, REAR SIDE SEAT, RH
71410-90088

BJ45,FJ45,HJ47..VKC

 2
71730 - CUSHION ASSY, REAR SIDE SEAT, RH
71410-90088

BJ45,FJ45,HJ47..VKC

 2
71740 - CUSHION ASSY, REAR SIDE SEAT, LH
71410-90088

BJ45,FJ45,HJ47..VKC

 2
71740 - CUSHION ASSY, REAR SIDE SEAT, LH
71410-90088

BJ45,FJ45,HJ47..VKC

 2
Common parts
90167-40011
91651-40820
91656-40820
93315-15012
