HJ47RV-KC (1980)
Toyota Land Cruiser
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

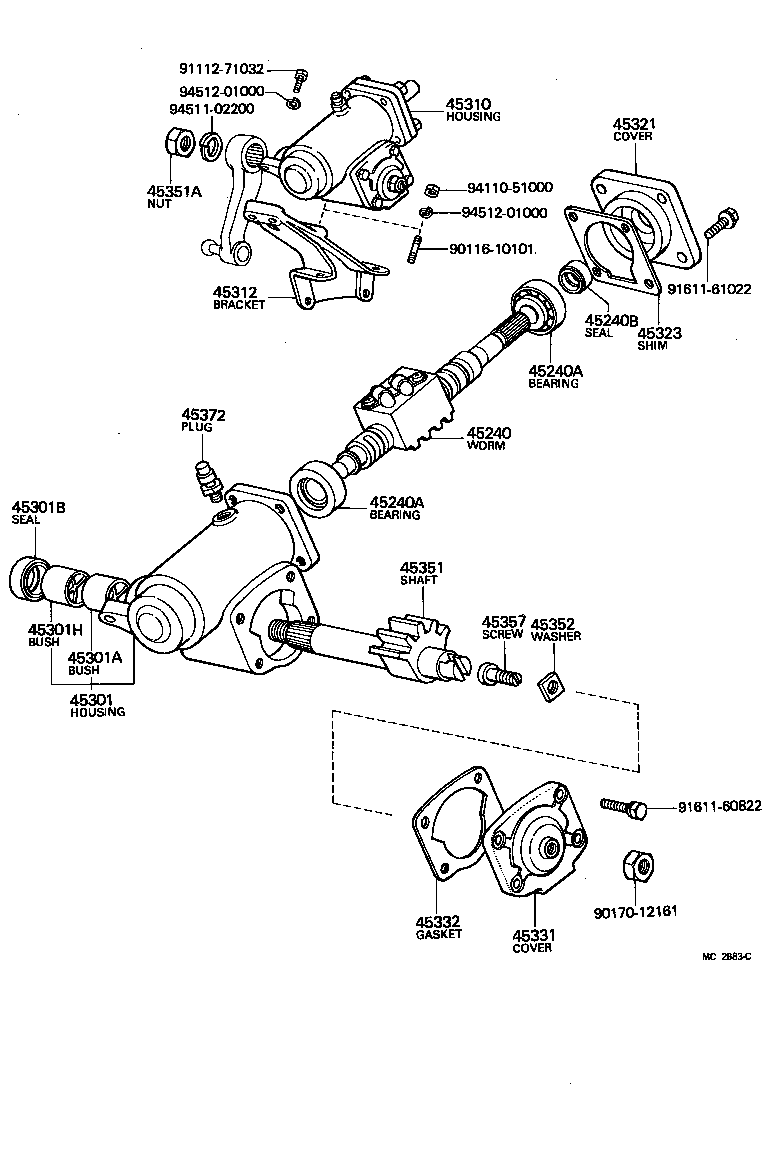

| 45240 - WORM ASSY, STEERING | ||||
| 45240-36031 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-36040 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-36060 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-60013 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-36050 |
BJ4#,FJ4#,HJ47 T=0.185-0.215,T=0.20 |
1 | ||
| 45323-36070 |
BJ4#,FJ4#,HJ47 T=0.055-0.065,T=0.06 |
1 | ||
| 45323-36010 |
BJ4#,FJ4#,HJ47 T=0.045-0.055,T=0.05 |
1 | ||
| 45323-36030 |
BJ4#,FJ4#,HJ47 T=0.072-0.088,T=0.08 |
1 | ||
| 45323-36080 |
BJ4#,FJ4#,HJ47 T=0.082-0.098,T=0.07 |
1 | ||
| 45323-36020 |
BJ4#,FJ4#,HJ47 T=0.065-0.075,T=0.07 |
1 | ||
| 45323-36060 |
BJ4#,FJ4#,HJ47 T=0.485-0.515,T=0.50 |
1 | ||
| 45323-36040 |
BJ4#,FJ4#,HJ47 T=0.092-0.108,T=0.10 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-36010 |
BJ4#,FJ4#,HJ47 T=2.10,T=2.10 |
1 | ||
| 45353-36010 |
BJ4#,FJ4#,HJ47 T=2.05,T=2.05 |
1 | ||
| 45355-36010 |
BJ4#,FJ4#,HJ47 T=2.15,T=2.15 |
1 | ||
| 45352-36010 |
BJ4#,FJ4#,HJ47 T=2.00,T=2.00 |
1 | ||
| 45356-36010 |
BJ4#,FJ4#,HJ47 T=2.20,T=2.20 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
BJ4#,FJ4#,HJ47 |
1 | ||
| Common parts | ||||
| 90116-10101 | ||||
| 90170-12161 | ||||
| 91112-71032 | ||||
| 91611-60822 | ||||
| 91611-61022 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

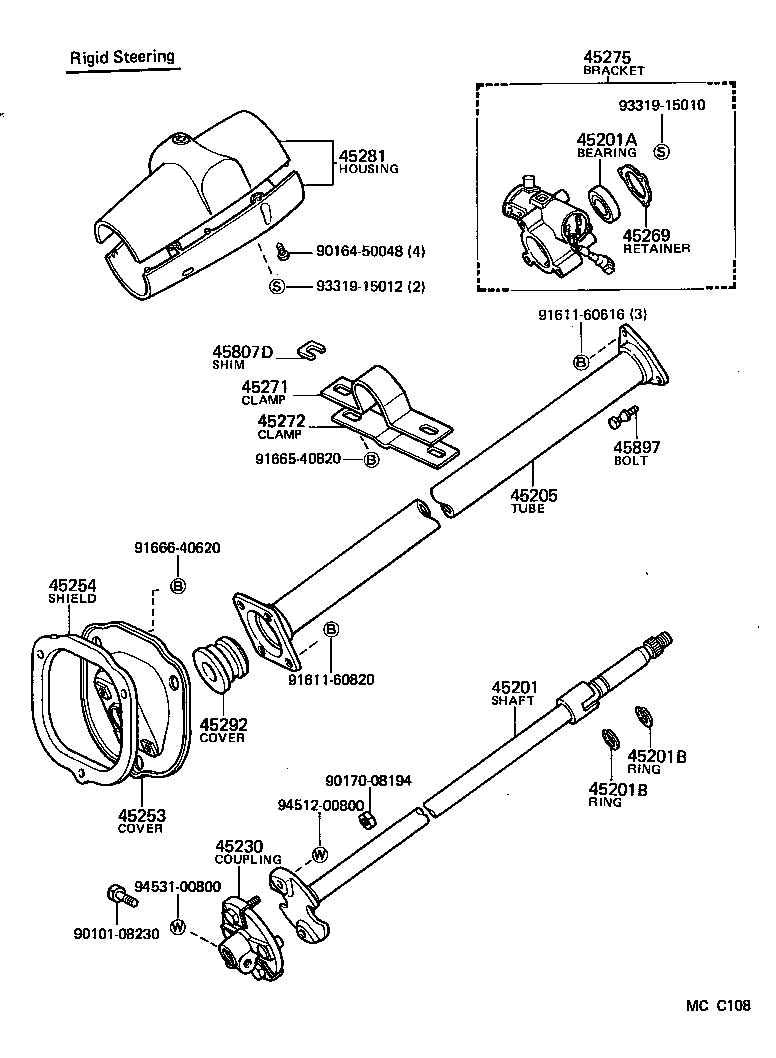

| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-60034 |
BJ4#,FJ4#,HJ47 RIGID STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BJ4#,FJ4#,HJ47 T=1.20,CURVED TYPE |
1 | ||
| 90520-17042 |
BJ4#,FJ4#,HJ47 T=1.20,FLAT TYPE |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BJ4#,FJ4#,HJ47 T=1.20,CURVED TYPE |
1 | ||
| 90520-17042 |
BJ4#,FJ4#,HJ47 T=1.20,FLAT TYPE |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60041 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD RIGID STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-60050 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD RIGID STEERING |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60020 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-60042 |
BJ4#,HJ47 W/STEERING LOCK |
1 | ||
| 45280-60032 |
BJ4#,HJ47..GEN W/O STEERING LOCK |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-60906 |
BJ42..RHD..GEN;BJ40,43,45,46,FJ4#,HJ47..RHD W/O STEERING LOCK |
1 | ||
| 45286-60906 |
BJ42..RHD..GEN;FJ40..RHD..VKC..GEN;FJ40..RHD..(TPC,TPS,VLS);BJ40,43,45,46,FJ43,45,HJ47..RHD W/O STEERING LOCK |
1 | ||
| 45286-60908 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD W/STEERING LOCK |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90119-08185 | ||||
| 90119-10129 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 91611-40816 | ||||
| 91611-60616 | ||||
| 91666-40822 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
(8008-8506)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-60034 |
BJ4#,FJ4#,HJ47 RIGID STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BJ4#,FJ4#,HJ47 T=1.20,CURVED TYPE |
1 | ||
| 90520-17042 |
BJ4#,FJ4#,HJ47 T=1.20,FLAT TYPE |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BJ4#,FJ4#,HJ47 T=1.20,CURVED TYPE |
1 | ||
| 90520-17042 |
BJ4#,FJ4#,HJ47 T=1.20,FLAT TYPE |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60041 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD RIGID STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-60050 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD RIGID STEERING |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60020 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 55661-90800 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD RIGID STEERING |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 55662-90800 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD RIGID STEERING |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-60042 |
BJ4#,HJ47 W/STEERING LOCK |
1 | ||
| 45280-60032 |
BJ4#,HJ47..GEN W/O STEERING LOCK |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-60906 |
BJ42..RHD..GEN;BJ40,43,45,46,FJ4#,HJ47..RHD W/O STEERING LOCK |
1 | ||
| 45286-60906 |
BJ42..RHD..GEN;FJ40..RHD..VKC..GEN;FJ40..RHD..(TPC,TPS,VLS);BJ40,43,45,46,FJ43,45,HJ47..RHD W/O STEERING LOCK |
1 | ||
| 45286-60908 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD W/STEERING LOCK |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-60011 |
BJ4#,FJ4#,HJ47 RIGID STEERING |
1 | ||
| 45807D - SHIM, STEERING COLUMN CLAMP | ||||
| 55614-60010 |
FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD |
4 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91665-40820 | ||||
| 91666-40620 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
