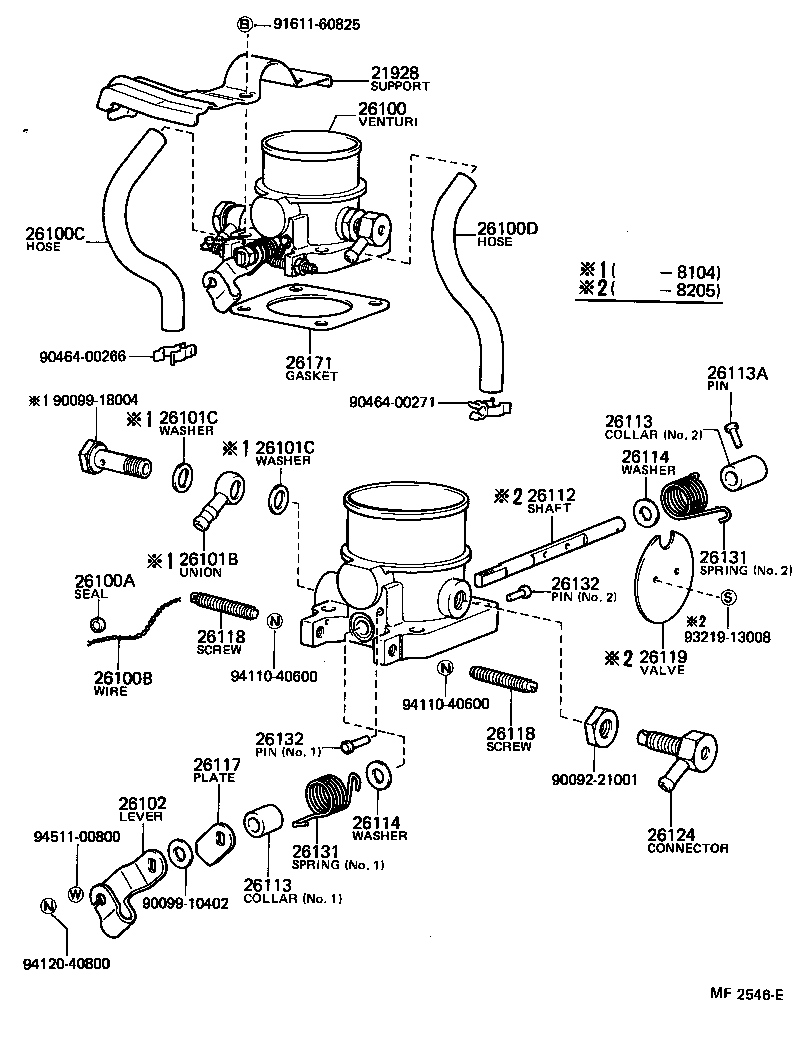

HJ47RV-KC (1980)
Toyota Land Cruiser
(8008-8411)2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21928 - SUPPORT, THROTTLE WIRE | ||||
| 21928-68010 |
2H..HJ47 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-68010 |
2H..HJ47 |
1 | ||
| 26100A - SEAL, LEAD | ||||
| 22354-77050 |
2H..HJ47 |
1 | ||
| 26100B - WIRE, SEAL | ||||
| 22355-76010 |
2H..HJ47 |
1 | ||
| 26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR) | ||||
| 90445-14068 |
2H..HJ47 |
1 | ||
| 26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR) | ||||
| 90445-14067 |
2H..HJ47 |
1 | ||
| 26101B - UNION(FOR VENTURI PIPE) | ||||
| 90405-09015 |
2H..HJ47 |
1 | ||
| 26101C - WASHER(FOR VENTURI PIPE UNION) | ||||
| 22119-77020 |
2H..HJ47 |
1 | ||
| 26101C - WASHER(FOR VENTURI PIPE UNION) | ||||
| 22119-77020 |
2H..HJ47 |
1 | ||
| 26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING | ||||
| 26111-68010 |
2H..HJ47 |
1 | ||
| 26112 - SHAFT, VENTURI THROTTLE VALVE | ||||
| 26112-68010 |
2H..HJ47 |
1 | ||
| 26113 - COLLAR, THROTTLE VALVE SHAFT | ||||
| 26113-68010 |
2H..HJ47 NO.1 |
1 | ||
| 26113-68011 |
2H..HJ47 NO.2 |
1 | ||
| 26113 - COLLAR, THROTTLE VALVE SHAFT | ||||
| 26113-68010 |
2H..HJ47 NO.1 |
1 | ||
| 26113-68011 |
2H..HJ47 NO.2 |
1 | ||
| 26113A - PIN, THROTTLE VALVE SHAFT | ||||
| 26132-56011 |
2H..HJ47 |
1 | ||
| 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING | ||||
| 26116-76010 |
2H..HJ47 T=0.5,T=0.5 |
2 | ||
| 26114-76010 |
2H..HJ47 T=0.1,T=0.1 |
2 | ||
| 26115-76010 |
2H..HJ47 T=0.2,T=0.2 |
2 | ||
| 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING | ||||
| 26116-76010 |
2H..HJ47 T=0.5,T=0.5 |
2 | ||
| 26114-76010 |
2H..HJ47 T=0.1,T=0.1 |
2 | ||
| 26115-76010 |
2H..HJ47 T=0.2,T=0.2 |
2 | ||
| 26117 - PLATE, THROTTLE VALVE SHAFT STOP | ||||
| 26117-68010 |
2H..HJ47 |
1 | ||
| 26118 - SCREW, STOP PLATE ADJUSTING | ||||
| 26118-48014 |
2H..HJ47 |
2 | ||
| 26118 - SCREW, STOP PLATE ADJUSTING | ||||
| 26118-48014 |
2H..HJ47 |
2 | ||
| 26119 - VALVE, VENTURI THROTTLE | ||||
| 26119-66011 |
2H..HJ47 |
1 | ||
| 26119-66010 |
2H..HJ47 |
1 | ||
| 26124 - CONNECTOR, VENTURI PIPE | ||||
| 26124-68010 |
2H..HJ47 |
1 | ||
| 26131 - SPRING, RETURN | ||||
| 26131-68020 |
2H..HJ47 NO.1 |
1 | ||
| 26131-68010 |
2H..HJ47 NO.2 |
1 | ||
| 26131 - SPRING, RETURN | ||||
| 26131-68020 |
2H..HJ47 NO.1 |
1 | ||
| 26131-68010 |
2H..HJ47 NO.2 |
1 | ||
| 26132 - PIN | ||||
| 26132-56010 |
2H..HJ47 NO.1 |
1 | ||
| 26132-56011 |
2H..HJ47 N0.2 |
1 | ||
| 26132 - PIN | ||||
| 26132-56010 |
2H..HJ47 NO.1 |
1 | ||
| 26132-56011 |
2H..HJ47 N0.2 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-68010 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-10402 | ||||
| 90099-18004 | ||||
| 90464-00266 | ||||
| 90464-00271 | ||||
| 91611-60825 | ||||
| 93219-13008 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
(8008-8410)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 26100 - VENTURI ASSY | ||||
| 26100-68010 |
2H..HJ47 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-68010 |
2H..HJ47 |
1 | ||
| 26100A - SEAL, LEAD | ||||
| 22354-77050 |
2H..HJ47 |
1 | ||
| 26100B - WIRE, SEAL | ||||
| 22355-76010 |
2H..HJ47 |
1 | ||
| 26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR) | ||||
| 90445-14068 |
2H..HJ47 |
1 | ||
| 26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR) | ||||
| 90445-14067 |
2H..HJ47 |
1 | ||
| 26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING | ||||
| 26111-68010 |
2H..HJ47 |
1 | ||
| 26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING | ||||
| 26111-68010 |
2H..HJ47 |
1 | ||
| 26112 - SHAFT, VENTURI THROTTLE VALVE | ||||
| 26112-68010 |
2H..HJ47 |
1 | ||
| 26113 - COLLAR, THROTTLE VALVE SHAFT | ||||
| 26113-68010 |
2H..HJ47 NO.1 |
1 | ||
| 26113-68011 |
2H..HJ47 NO.2 |
1 | ||
| 26113 - COLLAR, THROTTLE VALVE SHAFT | ||||
| 26113-68010 |
2H..HJ47 NO.1 |
1 | ||
| 26113-68011 |
2H..HJ47 NO.2 |
1 | ||
| 26113 - COLLAR, THROTTLE VALVE SHAFT | ||||
| 26113-68010 |
2H..HJ47 NO.1 |
1 | ||
| 26113-68011 |
2H..HJ47 NO.2 |
1 | ||
| 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING | ||||
| 26116-76010 |
2H..HJ47 T=0.5,T=0.5 |
2 | ||
| 26114-76010 |
2H..HJ47 T=0.1,T=0.1 |
2 | ||
| 26115-76010 |
2H..HJ47 T=0.2,T=0.2 |
2 | ||
| 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING | ||||
| 26116-76010 |
2H..HJ47 T=0.5,T=0.5 |
2 | ||
| 26114-76010 |
2H..HJ47 T=0.1,T=0.1 |
2 | ||
| 26115-76010 |
2H..HJ47 T=0.2,T=0.2 |
2 | ||
| 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING | ||||
| 26116-76010 |
2H..HJ47 T=0.5,T=0.5 |
2 | ||
| 26114-76010 |
2H..HJ47 T=0.1,T=0.1 |
2 | ||
| 26115-76010 |
2H..HJ47 T=0.2,T=0.2 |
2 | ||
| 26118 - SCREW, STOP PLATE ADJUSTING | ||||
| 26118-48014 |
2H..HJ47 |
2 | ||
| 26118 - SCREW, STOP PLATE ADJUSTING | ||||
| 26118-48014 |
2H..HJ47 |
2 | ||
| 26119 - VALVE, VENTURI THROTTLE | ||||
| 26119-66011 |
2H..HJ47 |
1 | ||
| 26119-66010 |
2H..HJ47 |
1 | ||
| 26124 - CONNECTOR, VENTURI PIPE | ||||
| 26124-68010 |
2H..HJ47 |
1 | ||
| 26124 - CONNECTOR, VENTURI PIPE | ||||
| 26124-68010 |
2H..HJ47 |
1 | ||
| 26131 - SPRING, RETURN | ||||
| 26131-68020 |
2H..HJ47 NO.1 |
1 | ||
| 26131-68010 |
2H..HJ47 NO.2 |
1 | ||
| 26131 - SPRING, RETURN | ||||
| 26131-68020 |
2H..HJ47 NO.1 |
1 | ||
| 26131-68010 |
2H..HJ47 NO.2 |
1 | ||
| 26132 - PIN | ||||
| 26132-56010 |
2H..HJ47 NO.1 |
1 | ||
| 26132-56011 |
2H..HJ47 N0.2 |
1 | ||
| 26132 - PIN | ||||
| 26132-56010 |
2H..HJ47 NO.1 |
1 | ||
| 26132-56011 |
2H..HJ47 N0.2 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-68010 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 91611-60625 | ||||
| 93219-13008 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
