HJ47RV-KC (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

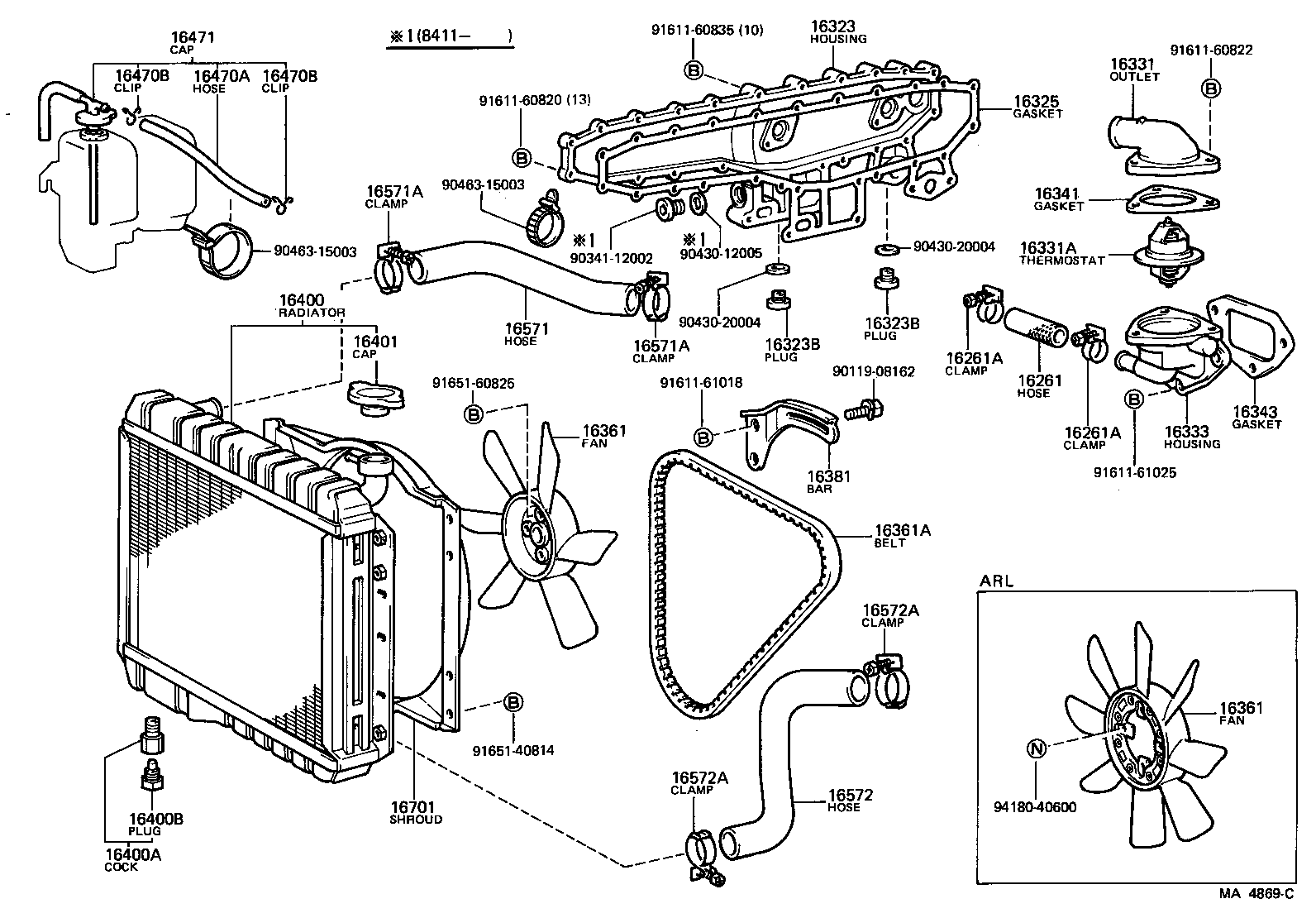

(8008-8506)2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99553-40090 |
2H..HJ47 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
2H..HJ47 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
2H..HJ47 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-68010 |
2H..HJ47 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20002 |
2H..HJ47 |
2 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20002 |
2H..HJ47 |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-68010 |
2H..HJ47 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-68010 |
2H..HJ47 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03026 |
2H..HJ47 *WAX 82-95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-68010 |
2H..HJ47 |
1 | ||
| 16333-68020 |
2H..HJ47..GEN W/O THERMOSTAT |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-68010 |
2H..HJ47 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-68010 |
2H..HJ47 |
1 | ||
| 16361 - FAN | ||||
| 16361-68040 |
2H..HJ47..GEN |
1 | ||
| 16361 - FAN | ||||
| 16361-68040 |
2H..HJ47..GEN |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99343-01075 |
2H..HJ47 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-68010 |
2H..HJ47 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-68030 |
2H..HJ47 |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 96431-03873 |
2H..HJ47 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96431-23814 |
2H..HJ47 L=29 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
2H..HJ47 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2H..HJ47 L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2H..HJ47 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2H..HJ47 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-60031 |
2H..HJ47 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-68020 |
2H..HJ47 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
2H..HJ47 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
2H..HJ47 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-68020 |
2H..HJ47 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
2H..HJ47 ID=56 |
1 | ||
| 90460-50016 |
2H..HJ47 ID=50 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
2H..HJ47 ID=56 |
1 | ||
| 90460-50016 |
2H..HJ47 ID=50 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-47040 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 90119-08162 | ||||
| 90341-12002 | ||||
| 90430-12005 | ||||
| 90430-20004 | ||||
| 90463-15003 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91612-60835 | ||||
| 91651-40814 | ||||
| 91651-60825 | ||||
| 94180-40600 | ||||

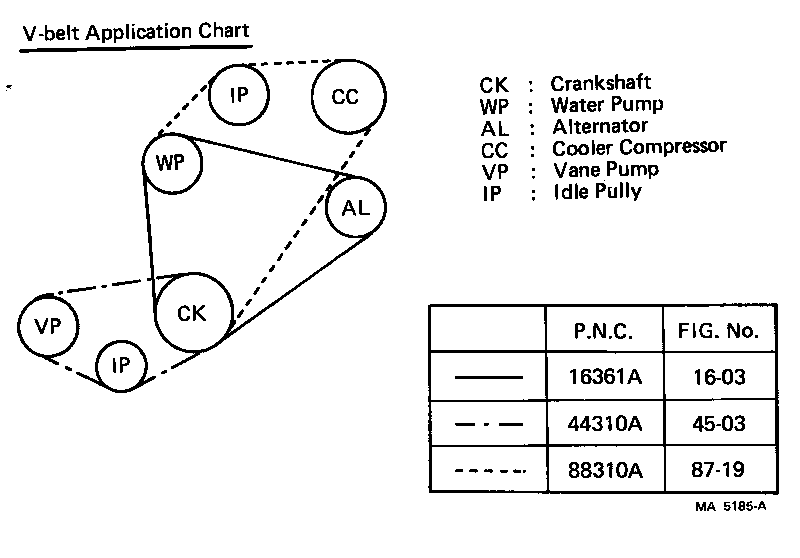

(8008-8506)2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99343-01075 |
2H..HJ47 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-01400 |
HJ47..RHD |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||

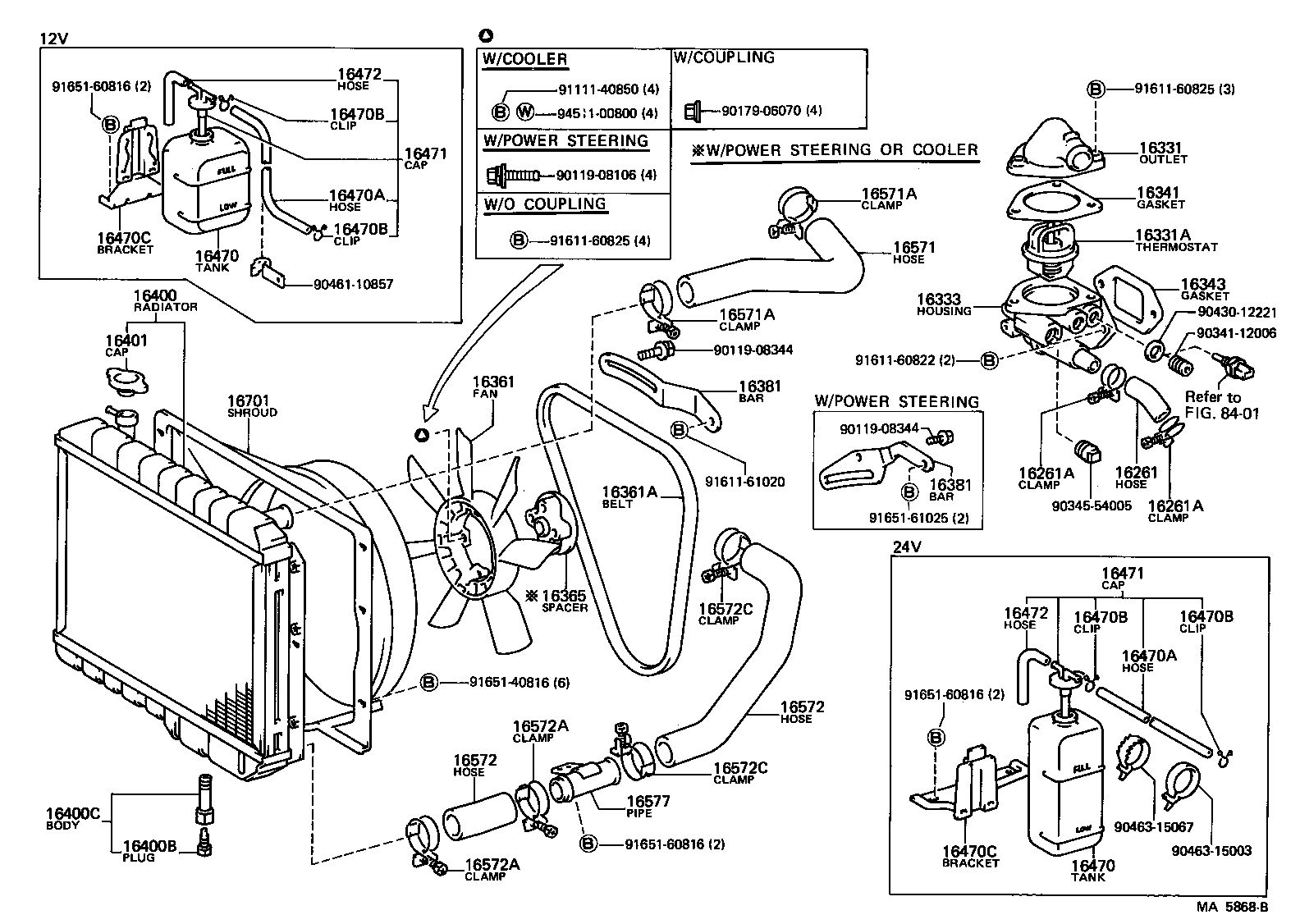

(8008-8110)B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99553-40090 |
2H..HJ47 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
2H..HJ47 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
2H..HJ47 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-68010 |
2H..HJ47 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03026 |
2H..HJ47 *WAX 82-95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-68010 |
2H..HJ47 |
1 | ||
| 16333-68020 |
2H..HJ47..GEN W/O THERMOSTAT |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-68010 |
2H..HJ47 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-68010 |
2H..HJ47 |
1 | ||
| 16361 - FAN | ||||
| 16361-68040 |
2H..HJ47..GEN |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99343-01075 |
2H..HJ47 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-68010 |
2H..HJ47 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-68030 |
2H..HJ47 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96431-23814 |
2H..HJ47 L=29 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
2H..HJ47 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2H..HJ47 L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2H..HJ47 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2H..HJ47 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-60031 |
2H..HJ47 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-68020 |
2H..HJ47 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
2H..HJ47 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
2H..HJ47 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-68020 |
2H..HJ47 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-68020 |
2H..HJ47 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
2H..HJ47 ID=56 |
1 | ||
| 90460-50016 |
2H..HJ47 ID=50 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
2H..HJ47 ID=56 |
1 | ||
| 90460-50016 |
2H..HJ47 ID=50 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-47040 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 90119-08162 | ||||
| 90179-06158 | ||||
| 90461-10857 | ||||
| 90463-15003 | ||||
| 90463-15067 | ||||
| 91111-40850 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91651-61025 | ||||
| 94511-00800 | ||||

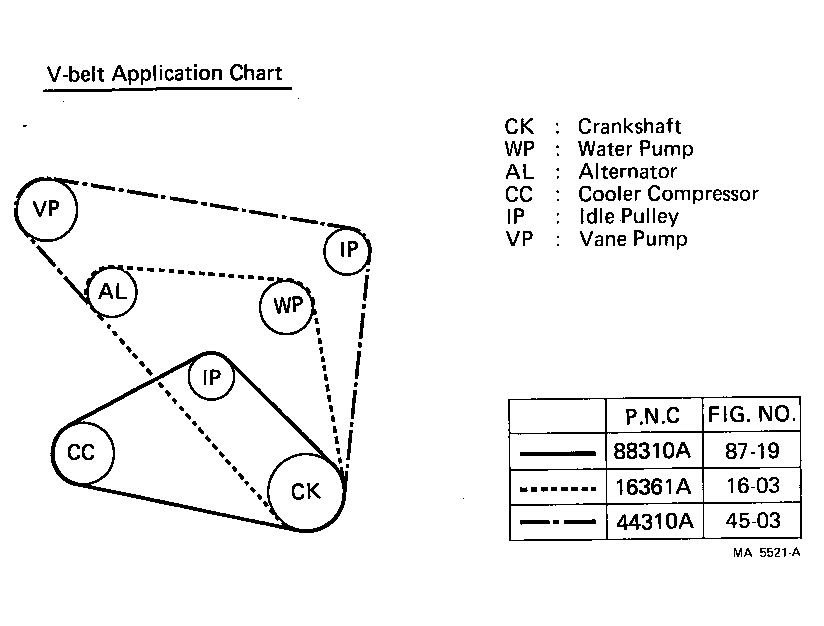

(8110-8410)B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99343-01075 |
2H..HJ47 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-01400 |
HJ47..RHD |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||

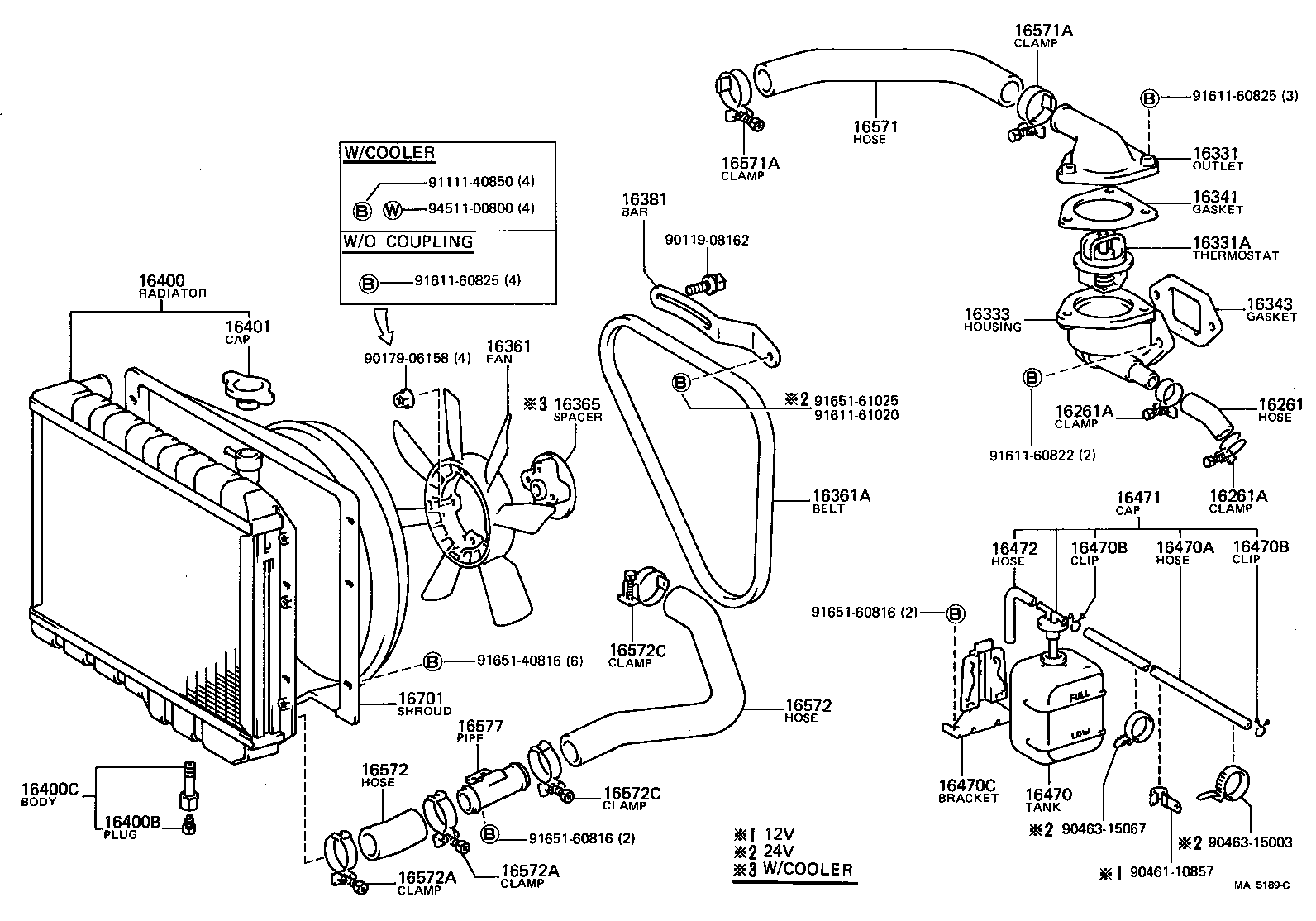

(8110-8410)B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99553-40090 |
2H..HJ47 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
2H..HJ47 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
2H..HJ47 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-68010 |
2H..HJ47 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03026 |
2H..HJ47 *WAX 82-95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-68010 |
2H..HJ47 |
1 | ||
| 16333-68020 |
2H..HJ47..GEN W/O THERMOSTAT |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-68010 |
2H..HJ47 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-68010 |
2H..HJ47 |
1 | ||
| 16361 - FAN | ||||
| 16361-68040 |
2H..HJ47..GEN |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99343-01075 |
2H..HJ47 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-68010 |
2H..HJ47 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-68010 |
2H..HJ47 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-68030 |
2H..HJ47 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 96431-23814 |
2H..HJ47 L=29 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
2H..HJ47 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2H..HJ47 L=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2H..HJ47 L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2H..HJ47 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2H..HJ47 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2H..HJ47 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2H..HJ47 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-60031 |
2H..HJ47 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-60031 |
2H..HJ47 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-68020 |
2H..HJ47 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
2H..HJ47 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
2H..HJ47 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-68020 |
2H..HJ47 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-68020 |
2H..HJ47 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
2H..HJ47 ID=56 |
1 | ||
| 90460-50016 |
2H..HJ47 ID=50 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
2H..HJ47 ID=56 |
1 | ||
| 90460-50016 |
2H..HJ47 ID=50 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-47040 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 90119-08106 | ||||
| 90119-08344 | ||||
| 90179-06070 | ||||
| 90341-12006 | ||||
| 90345-54005 | ||||
| 90430-12221 | ||||
| 90461-10857 | ||||
| 90463-15003 | ||||
| 90463-15067 | ||||
| 91111-40850 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91651-61025 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
