HJ47RP-KQ3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BJ45,FJ45,HJ47

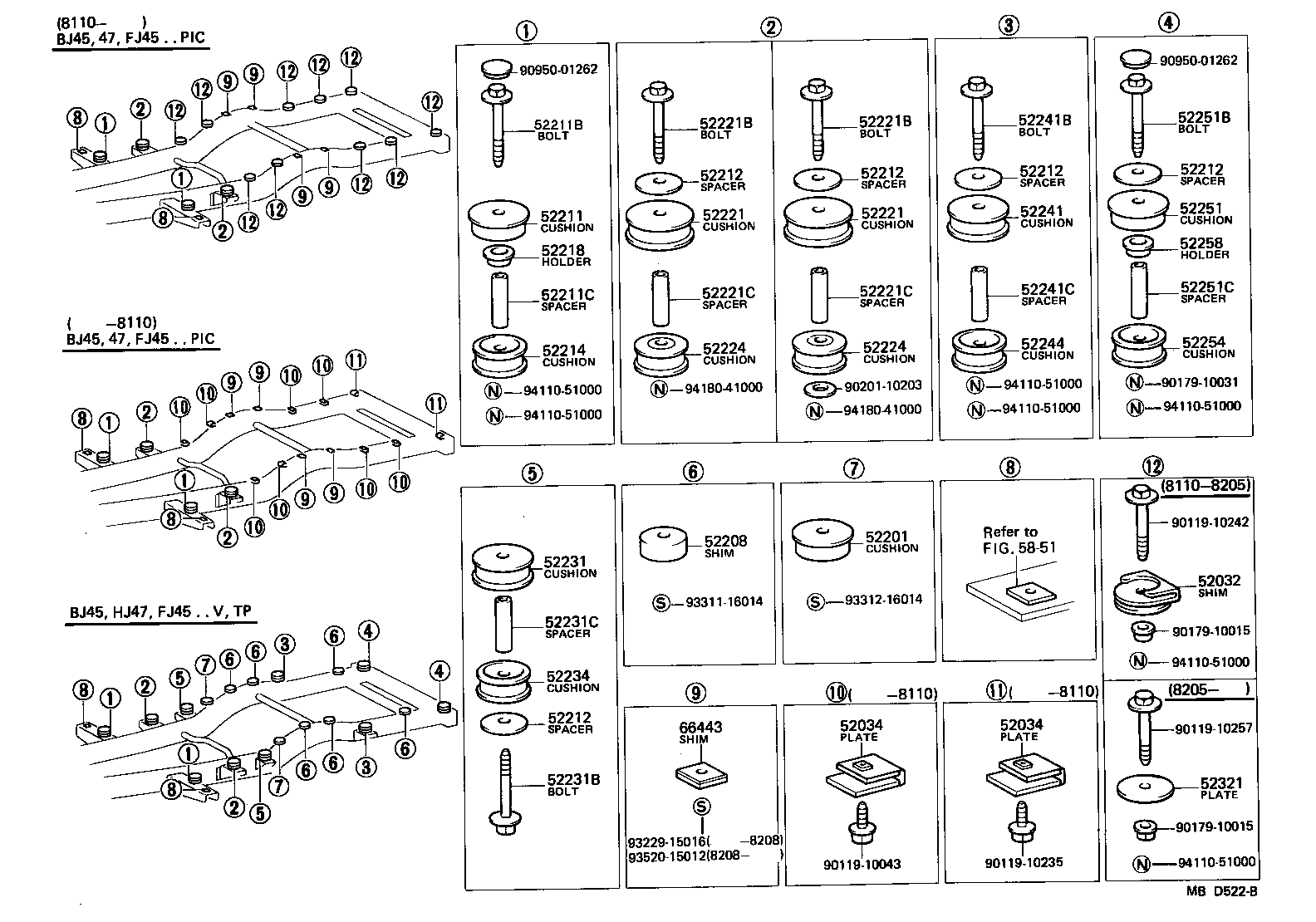

Click highlighted areas on diagram

diagram 52032 52034 52034 52201 52208 52211 52211B 52211C 52212 52212 52212 52212 52212 52214 52218 52221 52221 52221B 52221B 52221C 52221C 52224 52224 52231 52231B 52231C 52234 52241 52241B 52241C 52244 52251 52251B 52251C 52254 52258 52321 5851 66443 9011910043 9011910235 9011910242 9011910257 9017910015 9017910015 9017910031 9020110203 9095001262 9322915016 9331116014 9331216014 9352015012 9411051000 9411051000 9411051000 9411051000 9411051000 9411051000 9411051000 9418041000 9418041000 9895001262
Part # Description Qty Price
52032 - SHIM SUB-ASSY, COWL BODY MOUNTING
52032-90801

BJ45,FJ45,HJ47..PIC

 10
52034 - PLATE SUB-ASSY, DECK MOUNTING SHIM
52034-90300

BJ45,FJ45,HJ47..PIC

 10
52034 - PLATE SUB-ASSY, DECK MOUNTING SHIM
52034-90300

BJ45,FJ45,HJ47..PIC

 10
52201 - CUSHION ASSY, BODY MOUNTING, UPPER
52201-90300

BJ45,FJ45,HJ47..TP,V

 2
52208 - SHIM SUB-ASSY, BODY MOUNTING
52208-90300

BJ4#,FJ4#,HJ47..TP,V

 6
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-90300

BJ4#,FJ4#,HJ47

H=26.7

 2
52201-90301

BJ4#,FJ4#,HJ47

W/ADJUSTER,H=21.7

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90119-10123

BJ4#,FJ4#,HJ47

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
90560-12009

BJ4#,FJ4#,HJ47

L=48.1

 2
90560-12017

BJ4#,FJ4#,HJ47

W/ADJUSTER,L=43.1

 2
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ47

W/ADJUSTER,T=5.0

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ47

W/ADJUSTER,T=5.0

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ47

W/ADJUSTER,T=5.0

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ47

W/ADJUSTER,T=5.0

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ47

W/ADJUSTER,T=5.0

 1
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-90300

BJ4#,FJ4#,HJ47

 2
52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1
52228-22010

BJ4#,FJ4#,HJ47

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-90300

BJ4#,FJ4#,HJ47

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-90300

BJ4#,FJ4#,HJ47

 2
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90109-10039

BJ4#,FJ4#,HJ47

 2
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90109-10039

BJ4#,FJ4#,HJ47

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90560-12009

BJ4#,FJ4#,HJ47

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90560-12009

BJ4#,FJ4#,HJ47

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-90300

BJ4#,FJ4#,HJ47

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-90300

BJ4#,FJ4#,HJ47

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52205-90300

BJ45,FJ45,HJ47..TP,V

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90119-10122

BJ45,FJ45,HJ47..TP,V

 2
52231C - SPACER(FOR BODY MOUNT NO.3 CUSHION)
90560-12009

BJ45,FJ45,HJ47..TP,V

 2
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52202-90300

BJ45,FJ45,HJ47..TP,V

 2
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52205-90300

BJ43,45,46,FJ43,45,HJ47..TP,V

 2
52241B - BOLT(FOR BODY MOUNT NO.4 CUSHION)
90119-10123

BJ43,45,46,FJ43,45,HJ47..TP,V

 2
52241C - SPACER(FOR BODY MOUNT NO.4 CUSHION)
90560-12009

BJ43,45,46,FJ43,45,HJ47..TP,V

 2
52244 - CUSHION, BODY MOUNT, NO.4 LOWER
52202-90300

BJ43,45,46,FJ43,45,HJ47..TP,V

 2
52251 - CUSHION, BODY MOUNT, NO.5 UPPER
52201-90300

BJ4#,FJ4#,HJ47..TP,V

 2
52251B - BOLT(FOR BODY MOUNT NO.5 CUSHION)
90119-10123

BJ4#,FJ4#,HJ47..(TP,V)..(ARL,GEN)

 2
52251C - SPACER(FOR BODY MOUNT NO.5 CUSHION)
90560-12009

BJ4#,FJ4#,HJ47..TP,V

 2
52254 - CUSHION, BODY MOUNT, NO.5 LOWER
52202-90300

BJ4#,FJ4#,HJ47..TP,V

 2
52258 - HOLDER, BODY MOUNT BOLT SPACER, NO.5
52228-22010

BJ4#,FJ4#,HJ47..TP,V

 2
66443 - SHIM, MOUNTING, NO.3
66443-95010

BJ45,FJ45,HJ47..PIC

 1
Common parts
90119-10043
90119-10235
90119-10242
90119-10257
90179-10015
90179-10031
90201-10203
90950-01262
93229-15016
93311-16014
93312-16014
93520-15012
94110-51000
94180-41000
98950-01262
Linked diagrams
5851
