HJ47RP-K3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Jun 1985
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

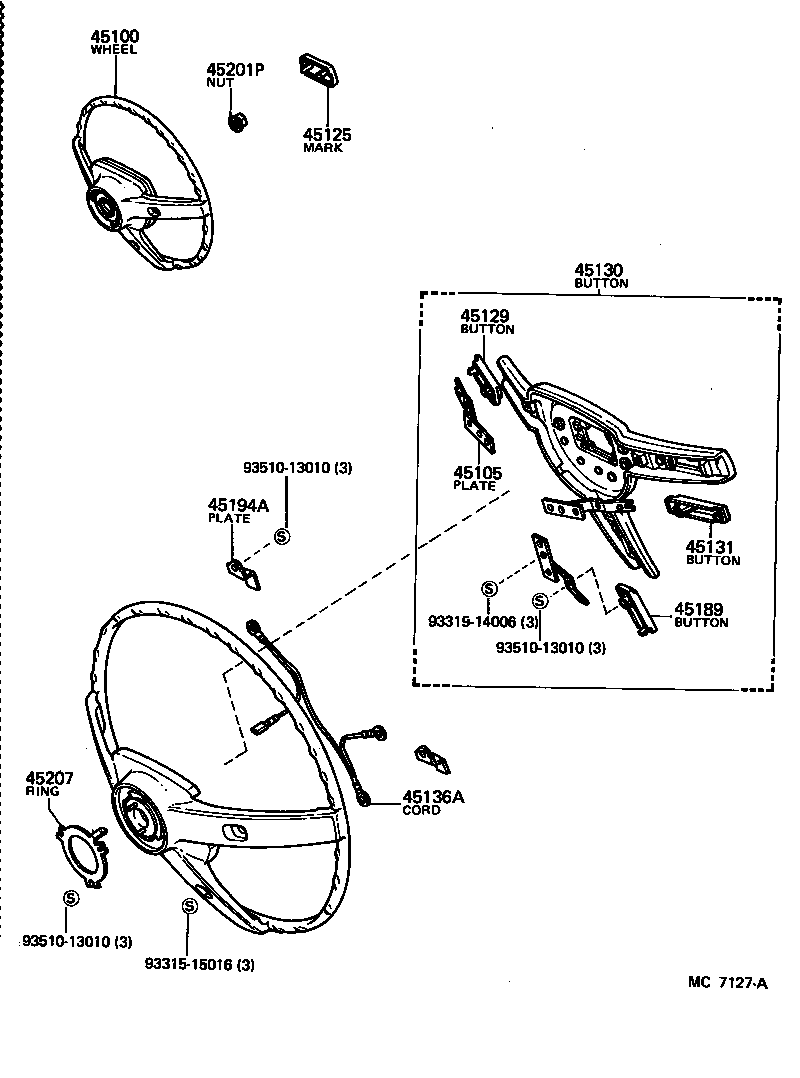

Click highlighted areas on diagram

diagram 45100 45105 45125 45129 45130 45131 45136A 45189 45194A 45201P 45207 9331515016 9331914006 9351013010 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60090

BJ4#,FJ4#,HJ47

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-60010

BJ4#,FJ4#,HJ47

 3
45125 - MARK, STEERING WHEEL PAD
45125-60040

BJ4#,FJ4#,HJ47

 1
45129 - BUTTON, HORN, NO.2
45131-60050

BJ4#,FJ4#,HJ47

 1
45130 - BUTTON ASSY, HORN
45130-60050

BJ4#,FJ4#,HJ47

 1
45131 - BUTTON, HORN, NO.1
45131-60050

BJ4#,FJ4#,HJ47

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02048

BJ4#,FJ4#,HJ47

 1
45189 - BUTTON, HORN, NO.3
45131-60050

BJ4#,FJ4#,HJ47

 1
45194A - PLATE, HORN BUTTON CONTACT, NO.2
45194-60010

BJ4#,FJ4#,HJ47

 3
45201P - NUT, STEERING WHEEL SET
90179-12086

BJ4#,FJ4#,HJ47

 1
45207 - RING, HORN CONTACT
45176-20030

BJ4#,FJ4#,HJ47

 1
Common parts
93315-15016
93319-14006
93510-13010
