HJ47RP-K (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )BJ45,FJ45,HJ47

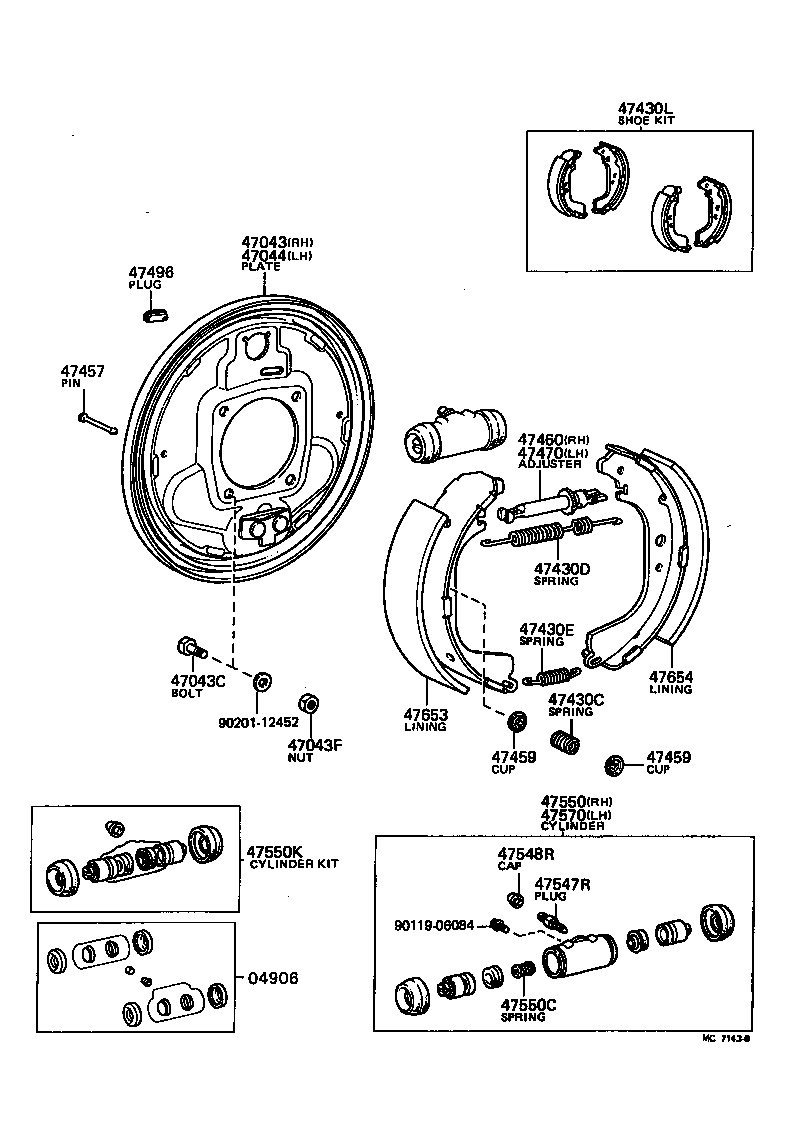

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-60060 |
BJ45,FJ45,HJ47 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-60060 |
BJ45,FJ45,HJ47 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90101-12021 |
BJ4#,FJ4#,HJ47 *12-1.25PX33-21 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94115-71200 |
BJ4#,FJ4#,HJ47 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47043-60060 |
BJ45,FJ45,HJ47 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BJ4#,FJ4#,HJ47 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26011 |
BJ4#,FJ4#,HJ47..3F,4F |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18031 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
BJ4#,FJ4#,HJ47 |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BJ4#,FJ4#,HJ47 |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BJ4#,FJ4#,HJ47 |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47061-60020 |
BJ45,FJ45,HJ47 |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47061-60020 |
BJ45,FJ45,HJ47 |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-60020 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-69115 |
BJ45,FJ45,HJ47 ID=28.57 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-60010 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-69115 |
BJ45,FJ45,HJ47 ID=28.57 |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-60010 |
BJ45,FJ45,HJ47 |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47655-60010 |
BJ45,FJ45,HJ47 |
2 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 90201-12452 | ||||
