HJ47LP-K3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

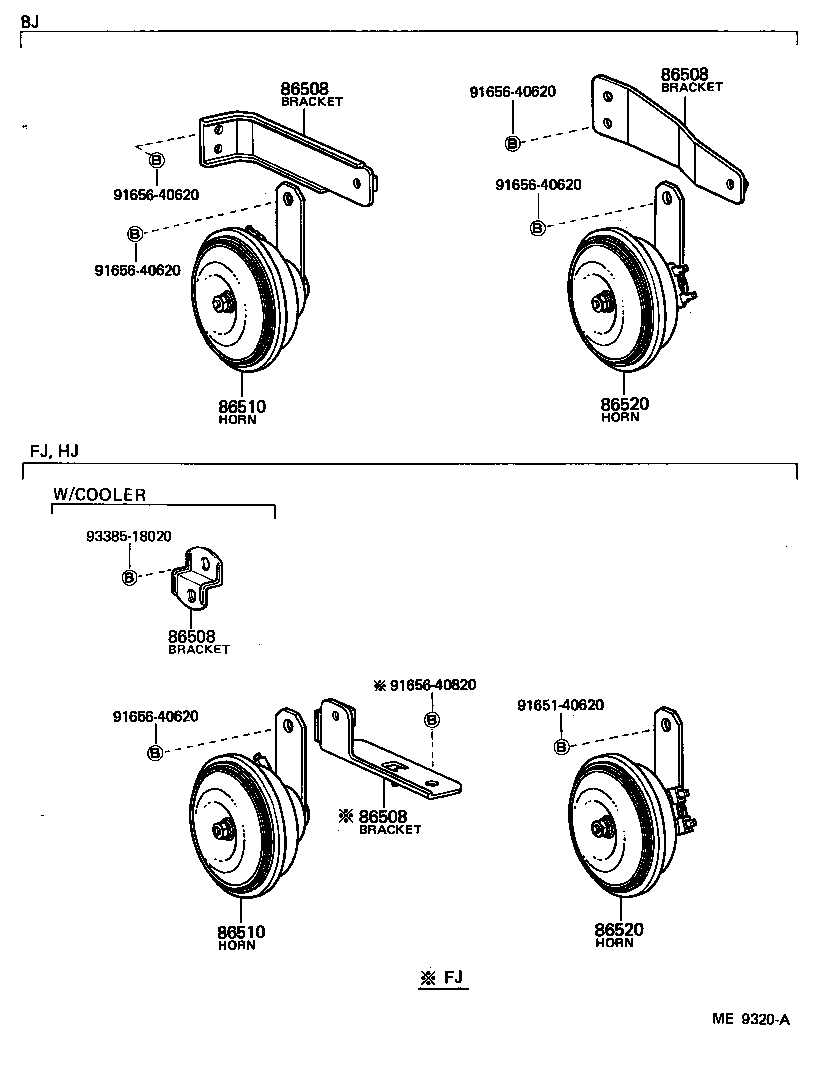

Click highlighted areas on diagram

diagram 86508 86508 86508 86508 86510 86510 86520 86520 9165140620 9165640620 9165640620 9165640620 9165640620 9165640620 9165640820 9338518020
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-60080

BJ4#,FJ4#,HJ47..ARL,GEN

12V

 1
86510 - HORN ASSY, HIGH PITCHED
86510-60080

BJ4#,FJ4#,HJ47..ARL,GEN

12V

 1
86520 - HORN ASSY, LOW PITCHED
86520-16080

BJ4#,FJ4#,HJ47..ARL,GEN

12V

 1
86520 - HORN ASSY, LOW PITCHED
86520-16080

BJ4#,FJ4#,HJ47..ARL,GEN

12V

 1
Common parts
91651-40620
91656-40620
91656-40820
93385-18020
