HJ47LP-K3 (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )TP,V

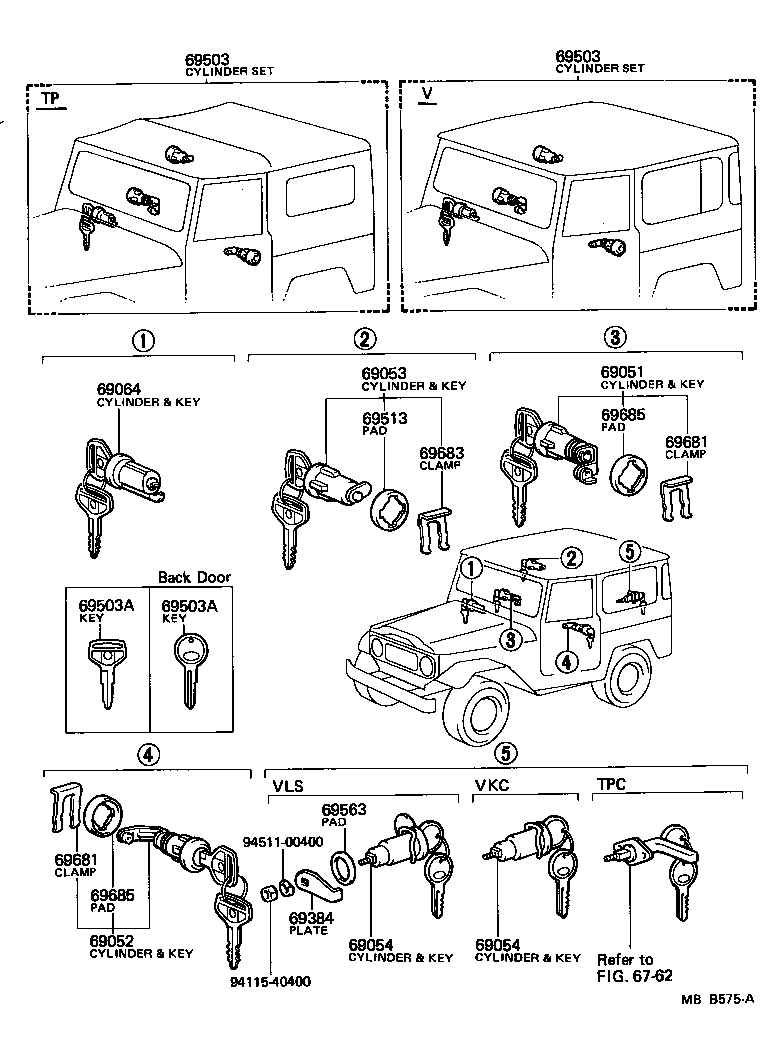

Click highlighted areas on diagram

diagram 6762 69051 69052 69053 69054 69054 69064 69384 69503 69503 69503A 69503A 69513 69563 69681 69681 69683 69685 69685 9411540400 9451100400
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-69015

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-69015

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69053 - CYLINDER & KEY SET, FUEL INLET LOCK
69058-90300

BJ4#,FJ4#,HJ47..TP,V

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-60011

BJ4#,HJ47

W/STEERING LOCK

 1
69057-60011

BJ4#,HJ47..ARL,GEN

W/STEERING LOCK

 1
69064-60041

BJ4#,HJ47..GEN

W/O STEERING LOCK

 1
69503 - CYLINDER SET, LOCK
69005-90300

BJ45,HJ47..PIC

W/STEERING LOCK

 1
69005-90320

BJ4#,HJ47..TP,V

STEEL DOOR,W/STEELING LOCK

 1
69005-90304

BJ45,HJ47..PIC

W/STEELING & FUEL LOCK

 1
69005-90319

BJ4#,HJ47..(TP,V)..GEN

STEEL DOOR,W/O STEERING LOCK

 1
69005-90320

BJ40,42,43,45,HJ47..(TP,V)..GEN

STEEL DOOR,W/STEELING LOCK

 1
69005-90302

BJ45,HJ47..PIC..GEN

W/O STEERING LOCK,W/FUEL LOCK

 1
69005-69067

BJ45,HJ47..PIC..GEN

W/O STEERING LOCK

 1
69503 - CYLINDER SET, LOCK
69005-90300

BJ45,HJ47..PIC

W/STEERING LOCK

 1
69005-90320

BJ4#,HJ47..TP,V

STEEL DOOR,W/STEELING LOCK

 1
69005-90304

BJ45,HJ47..PIC

W/STEELING & FUEL LOCK

 1
69005-90319

BJ4#,HJ47..(TP,V)..GEN

STEEL DOOR,W/O STEERING LOCK

 1
69005-90320

BJ40,42,43,45,HJ47..(TP,V)..GEN

STEEL DOOR,W/STEELING LOCK

 1
69005-90302

BJ45,HJ47..PIC..GEN

W/O STEERING LOCK,W/FUEL LOCK

 1
69005-69067

BJ45,HJ47..PIC..GEN

W/O STEERING LOCK

 1
69503A - KEY, BLANK
90999-00066

BJ4#,FJ4#,HJ47

MASTER KEY

 1
69503A - KEY, BLANK
90999-00066

BJ4#,FJ4#,HJ47

MASTER KEY

 1
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69685-95400

BJ4#,FJ4#,HJ47..TP,V

 1
69563 - PAD, BACK DOOR LOCK CYLINDER
69563-90300

BJ40,42,45,FJ40,45,HJ47..V

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ4#,FJ4#,HJ47

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ4#,FJ4#,HJ47

 2
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20040

BJ4#,FJ4#,HJ47..TP,V

 1
69685 - PAD, LOCK CYLINDER
69685-12010

BJ4#,FJ4#,HJ47

 2
69685 - PAD, LOCK CYLINDER
69685-12010

BJ4#,FJ4#,HJ47

 2
Common parts
94115-40400
94511-00400
Linked diagrams
6762

(8008- )PIC

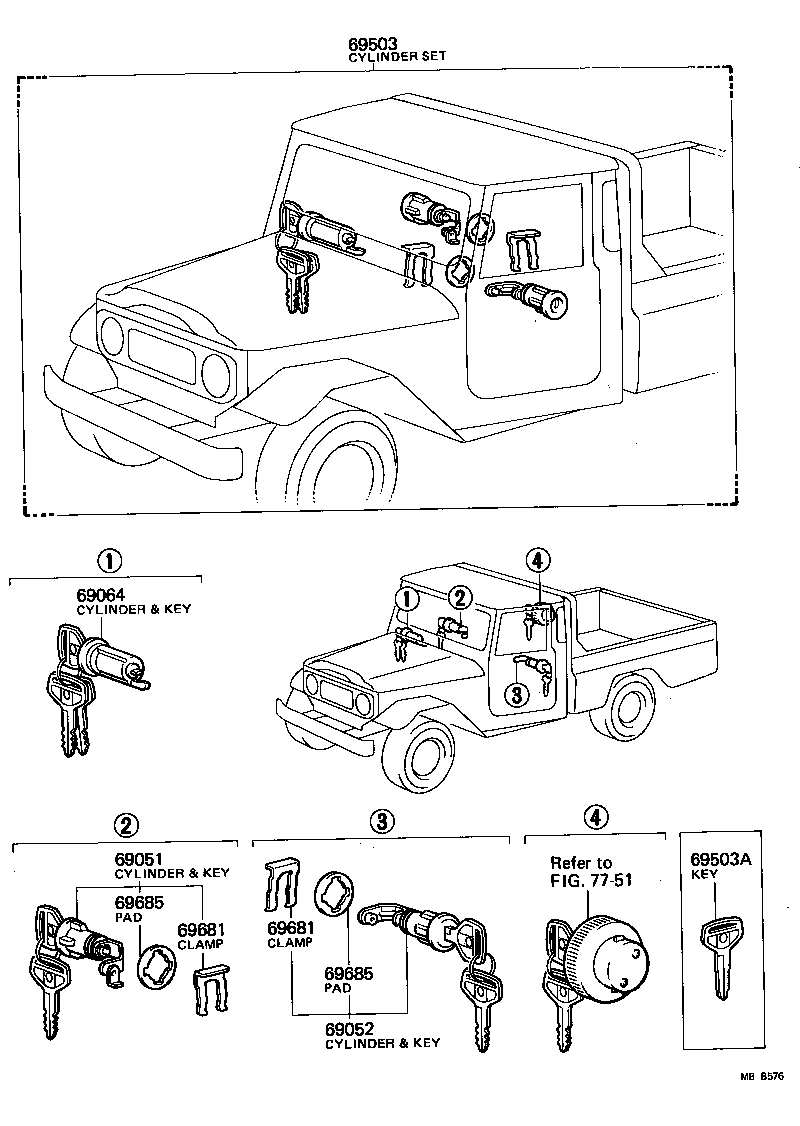

Click highlighted areas on diagram

diagram 69051 69052 69064 69503 69503A 69681 69681 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-69015

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-69015

BJ4#,FJ4#,HJ47

STEEL DOOR

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-60011

BJ4#,HJ47

W/STEERING LOCK

 1
69057-60011

BJ4#,HJ47..ARL,GEN

W/STEERING LOCK

 1
69064-60041

BJ4#,HJ47..GEN

W/O STEERING LOCK

 1
69503 - CYLINDER SET, LOCK
69005-90300

BJ45,HJ47..PIC

W/STEERING LOCK

 1
69005-90320

BJ4#,HJ47..TP,V

STEEL DOOR,W/STEELING LOCK

 1
69005-90304

BJ45,HJ47..PIC

W/STEELING & FUEL LOCK

 1
69005-90319

BJ4#,HJ47..(TP,V)..GEN

STEEL DOOR,W/O STEERING LOCK

 1
69005-90320

BJ40,42,43,45,HJ47..(TP,V)..GEN

STEEL DOOR,W/STEELING LOCK

 1
69005-90302

BJ45,HJ47..PIC..GEN

W/O STEERING LOCK,W/FUEL LOCK

 1
69005-69067

BJ45,HJ47..PIC..GEN

W/O STEERING LOCK

 1
69503A - KEY, BLANK
90999-00066

BJ4#,FJ4#,HJ47

MASTER KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ4#,FJ4#,HJ47

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

BJ4#,FJ4#,HJ47

 2
69685 - PAD, LOCK CYLINDER
69685-12010

BJ4#,FJ4#,HJ47

 2
69685 - PAD, LOCK CYLINDER
69685-12010

BJ4#,FJ4#,HJ47

 2
Linked diagrams
7751

(8008- )V

Click highlighted areas on diagram

diagram 00000
Part # Description Qty Price
