HJ47LP-K3 (1980)
Toyota Land Cruiser

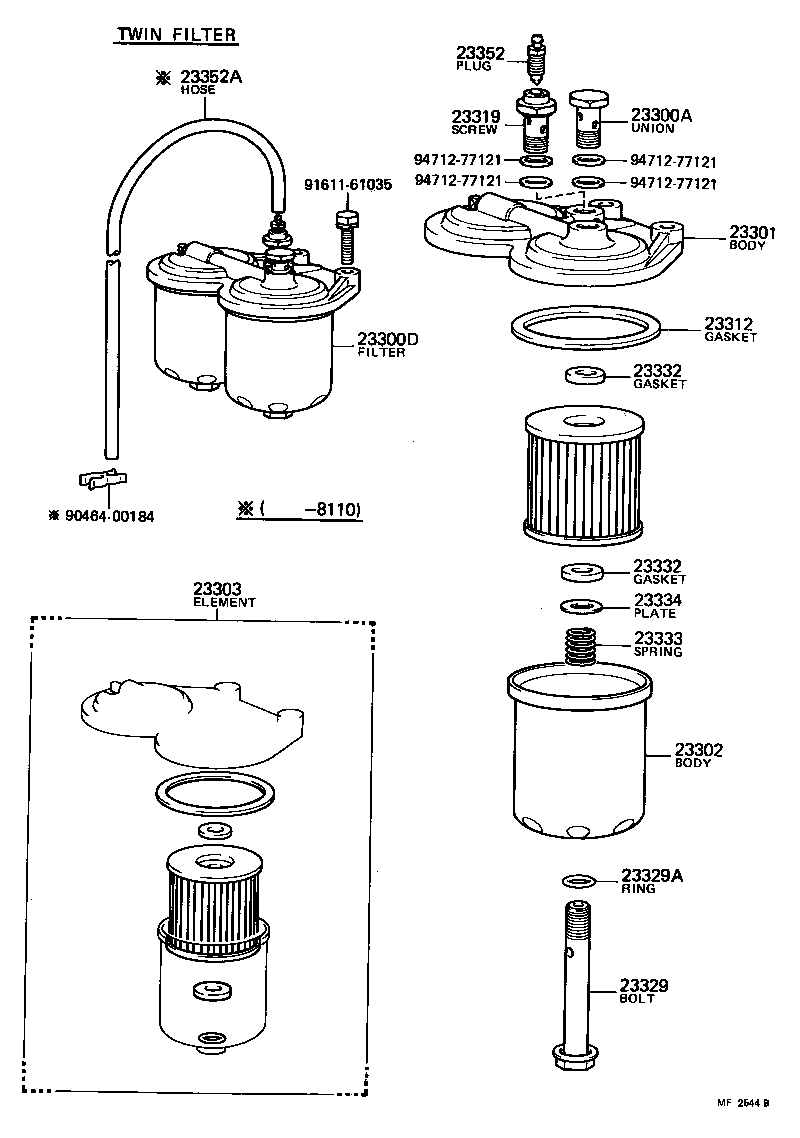

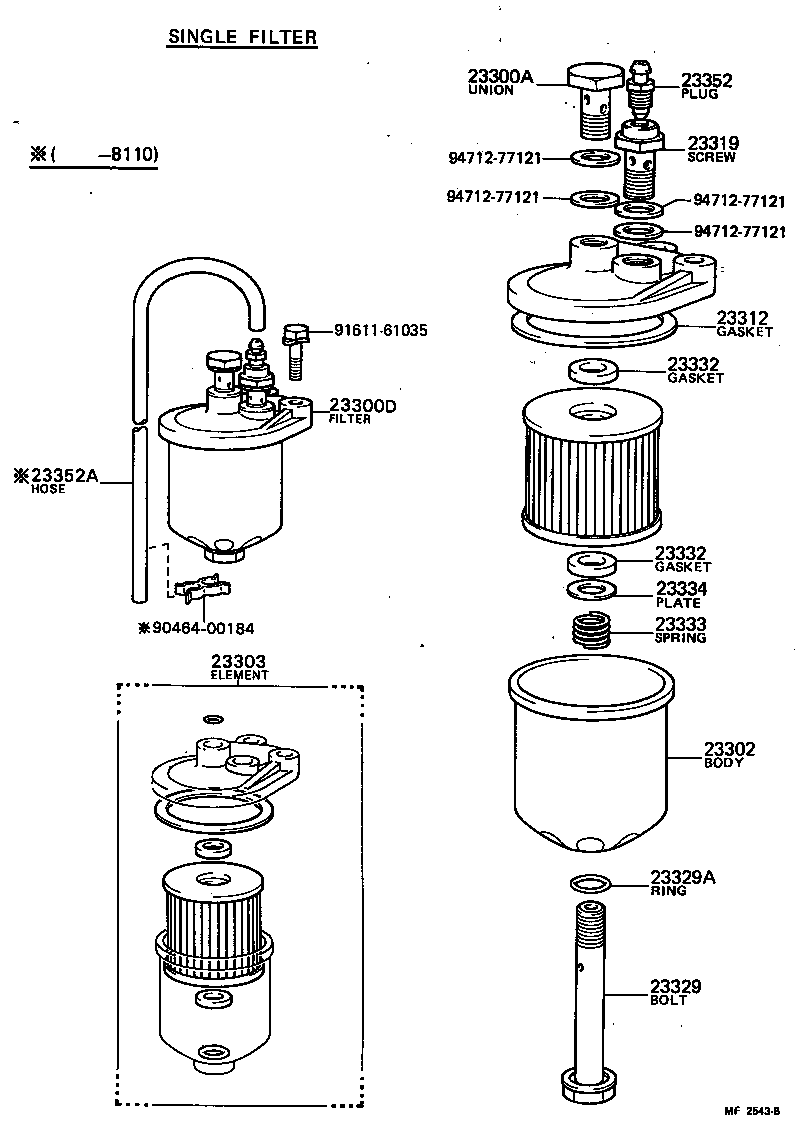

(8008-8204)2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90401-14060 |
2H..HJ47 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-68010 |
2H..HJ47 SINGLE FILTER |
1 | ||
| 23300-68020 |
2H..HJ47 TWIN FILTER |
1 | ||
| 23302 - BODY SUB-ASSY, FUEL FILTER, LOWER | ||||
| 23302-56010 |
2H..HJ47 |
2 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 04234-68010 |
2H..HJ47 |
2 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
2H..HJ47 |
2 | ||
| 23312-56010 |
2H..HJ47 |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 23319-48010 |
2H..HJ47 |
1 | ||
| 23329 - BOLT, FUEL FILTER CENTER | ||||
| 23304-56010 |
2H..HJ47 |
2 | ||
| 23329A - RING, O(FOR FUEL FILTER CENTER BOLT) | ||||
| 23344-68010 |
2H..HJ47 |
2 | ||
| 23344-46010 |
2H..HJ47 |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-46010 |
2H..HJ47 |
4 | ||
| 23332-68010 |
2H..HJ47 |
4 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-46010 |
2H..HJ47 |
4 | ||
| 23332-68010 |
2H..HJ47 |
4 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
2H..HJ47 |
2 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-46010 |
2H..HJ47 |
2 | ||
| 23352 - PLUG, BLEEDER | ||||
| 47547-12030 |
2H..HJ47 |
1 | ||
| 23352A - HOSE(FOR BLEEDER PLUG) | ||||
| 90446-08009 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 90464-00184 | ||||
| 91611-61035 | ||||
| 94712-77121 | ||||
(8008-8204)2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90401-14060 |
2H..HJ47 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-68010 |
2H..HJ47 SINGLE FILTER |
1 | ||
| 23300-68020 |
2H..HJ47 TWIN FILTER |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23311-68020 |
2H..HJ47 TWIN FILTER |
1 | ||
| 23302 - BODY SUB-ASSY, FUEL FILTER, LOWER | ||||
| 23302-56010 |
2H..HJ47 |
2 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 04234-68010 |
2H..HJ47 |
2 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
2H..HJ47 |
2 | ||
| 23312-56010 |
2H..HJ47 |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 23319-48010 |
2H..HJ47 |
1 | ||
| 23329 - BOLT, FUEL FILTER CENTER | ||||
| 23304-56010 |
2H..HJ47 |
2 | ||
| 23329A - RING, O(FOR FUEL FILTER CENTER BOLT) | ||||
| 23344-68010 |
2H..HJ47 |
2 | ||
| 23344-46010 |
2H..HJ47 |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-46010 |
2H..HJ47 |
4 | ||
| 23332-68010 |
2H..HJ47 |
4 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-46010 |
2H..HJ47 |
4 | ||
| 23332-68010 |
2H..HJ47 |
4 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
2H..HJ47 |
2 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-46010 |
2H..HJ47 |
2 | ||
| 23352 - PLUG, BLEEDER | ||||
| 47547-12030 |
2H..HJ47 |
1 | ||
| 23352A - HOSE(FOR BLEEDER PLUG) | ||||
| 90446-08009 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 90464-00184 | ||||
| 91611-61035 | ||||
| 94712-77121 | ||||
(8008-8506)2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
2H..HJ47 SEDIMENTER |
1 | ||
| 23338-54010 |
2H..HJ47 SEDIMENTER |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23930 - SEDIMENTER ASSY, FUEL | ||||
| 23930-57011 |
2H..HJ47 |
1 | ||
| 23930-57011 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 91651-40825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8008-8506)B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
2H..HJ47 SEDIMENTER |
1 | ||
| 23338-54010 |
2H..HJ47 SEDIMENTER |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23930 - SEDIMENTER ASSY, FUEL | ||||
| 23930-57011 |
2H..HJ47 |
1 | ||
| 23930-57011 |
2H..HJ47 |
1 | ||
| Common parts | ||||
| 91651-40825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8008-8410)B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90401-14060 |
2H..HJ47 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-68010 |
2H..HJ47 SINGLE FILTER |
1 | ||
| 23300-68020 |
2H..HJ47 TWIN FILTER |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23311-68020 |
2H..HJ47 TWIN FILTER |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 04234-68010 |
2H..HJ47 |
2 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
2H..HJ47 |
2 | ||
| 23312-56010 |
2H..HJ47 |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 23319-48010 |
2H..HJ47 |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
2H..HJ47 SEDIMENTER |
2 | ||
| Common parts | ||||
| 91611-61045 | ||||
| 94712-77121 | ||||
