Toyota Land cruiser HJ47 BATTERY & BATTERY CABLE

Manufacturers Home
Toyota
EU
LAND CRUISER
HJ47LP-K (1980)
8201 - BATTERY & BATTERY CABLE

HJ47LP-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984

Engine 2H

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008- )

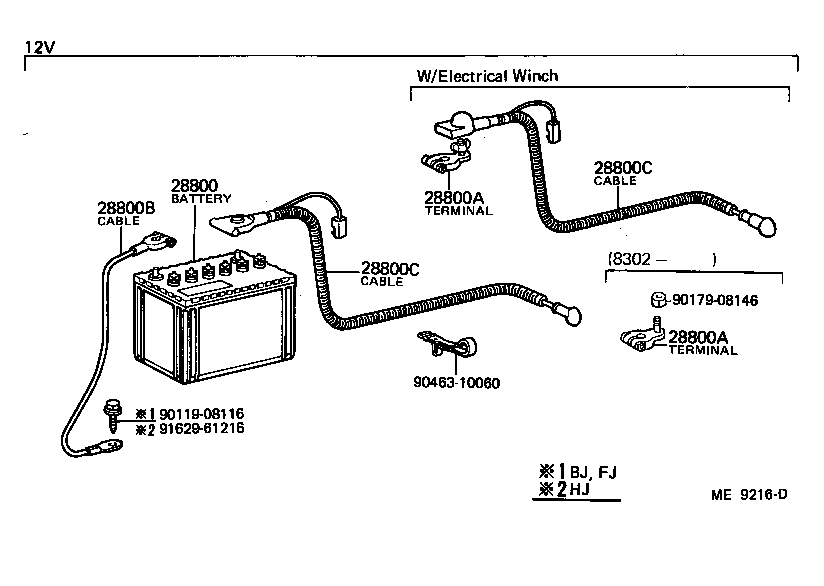

Click highlighted areas on diagram

Part #	Description	Period	Qty
28800 - BATTERY
28800-46012	B,3B,2F,2H..BJ4#,FJ4#,HJ47..EUR,GEN 75D31R,N70Z	08/1980 - 04/1986	1
28800A - TERMINAL, BATTERY POSITIVE
99142-87175	2F,2H..FJ4#,HJ47 W/ELECTRICAL WINCH	10/1981 - 10/1982	1
99142-87175	2F..FJ4#;2H..HJ47..GEN W/ELECTRICAL WINCH	10/1982 - 05/1983	1
99142-87175	B,3B,2F,2H..BJ4#,FJ4#,HJ47..3F,4F W/ELECTRICAL WINCH	08/1980 - 10/1981	1
28800A - TERMINAL, BATTERY POSITIVE
99142-87175	2F,2H..FJ4#,HJ47 W/ELECTRICAL WINCH	10/1981 - 10/1982	1
99142-87175	2F..FJ4#;2H..HJ47..GEN W/ELECTRICAL WINCH	10/1982 - 05/1983	1
99142-87175	B,3B,2F,2H..BJ4#,FJ4#,HJ47..3F,4F W/ELECTRICAL WINCH	08/1980 - 10/1981	1
28800B - CABLE, BATTERY TO GROUND
90982-02065	2F,2H..FJ4#,HJ47	08/1980 - 02/1984	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82046-90801	2H..HJ47 W/ELECTRICAL WINCH	08/1980 - 10/1982	1
90982-01379	2H..HJ47	08/1980 - 10/1982	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82046-90801	2H..HJ47 W/ELECTRICAL WINCH	08/1980 - 10/1982	1
90982-01379	2H..HJ47	08/1980 - 10/1982	1
Common parts
90119-08116
90179-08146
90463-10060
91629-61216

(8008- )

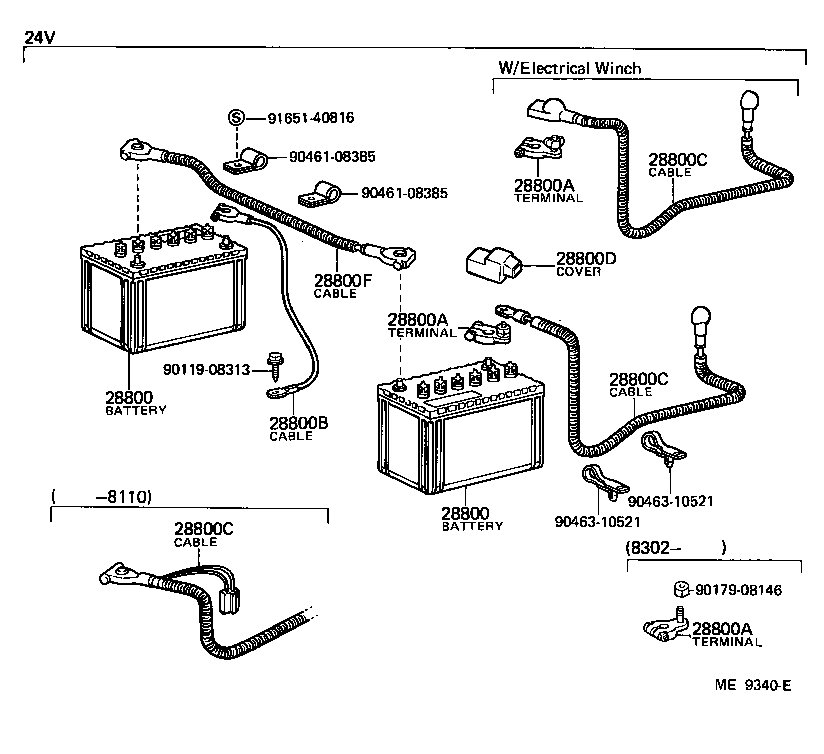

Click highlighted areas on diagram

Part #	Description	Period	Qty
28800 - BATTERY
28800-46012	B,3B,2F,2H..BJ4#,FJ4#,HJ47..EUR,GEN 75D31R,N70Z	08/1980 - 04/1986	1
28800 - BATTERY
28800-46012	B,3B,2F,2H..BJ4#,FJ4#,HJ47..EUR,GEN 75D31R,N70Z	08/1980 - 04/1986	1
28800A - TERMINAL, BATTERY POSITIVE
99142-87175	2F,2H..FJ4#,HJ47 W/ELECTRICAL WINCH	10/1981 - 10/1982	1
99142-87175	2F..FJ4#;2H..HJ47..GEN W/ELECTRICAL WINCH	10/1982 - 05/1983	1
99142-87175	B,3B,2F,2H..BJ4#,FJ4#,HJ47..3F,4F W/ELECTRICAL WINCH	08/1980 - 10/1981	1
28800A - TERMINAL, BATTERY POSITIVE
99142-87175	2F,2H..FJ4#,HJ47 W/ELECTRICAL WINCH	10/1981 - 10/1982	1
99142-87175	2F..FJ4#;2H..HJ47..GEN W/ELECTRICAL WINCH	10/1982 - 05/1983	1
99142-87175	B,3B,2F,2H..BJ4#,FJ4#,HJ47..3F,4F W/ELECTRICAL WINCH	08/1980 - 10/1981	1
28800A - TERMINAL, BATTERY POSITIVE
99142-87175	2F,2H..FJ4#,HJ47 W/ELECTRICAL WINCH	10/1981 - 10/1982	1
99142-87175	2F..FJ4#;2H..HJ47..GEN W/ELECTRICAL WINCH	10/1982 - 05/1983	1
99142-87175	B,3B,2F,2H..BJ4#,FJ4#,HJ47..3F,4F W/ELECTRICAL WINCH	08/1980 - 10/1981	1
28800B - CABLE, BATTERY TO GROUND
90982-02065	2F,2H..FJ4#,HJ47	08/1980 - 02/1984	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82046-90801	2H..HJ47 W/ELECTRICAL WINCH	08/1980 - 10/1982	1
90982-01379	2H..HJ47	08/1980 - 10/1982	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82046-90801	2H..HJ47 W/ELECTRICAL WINCH	08/1980 - 10/1982	1
90982-01379	2H..HJ47	08/1980 - 10/1982	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82046-90801	2H..HJ47 W/ELECTRICAL WINCH	08/1980 - 10/1982	1
90982-01379	2H..HJ47	08/1980 - 10/1982	1
Common parts
90119-08313
90179-08146
90461-08385
90463-10521
91651-40816

HJ47LP-K (1980)

(8008- )

(8008- )
