HJ47LP-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

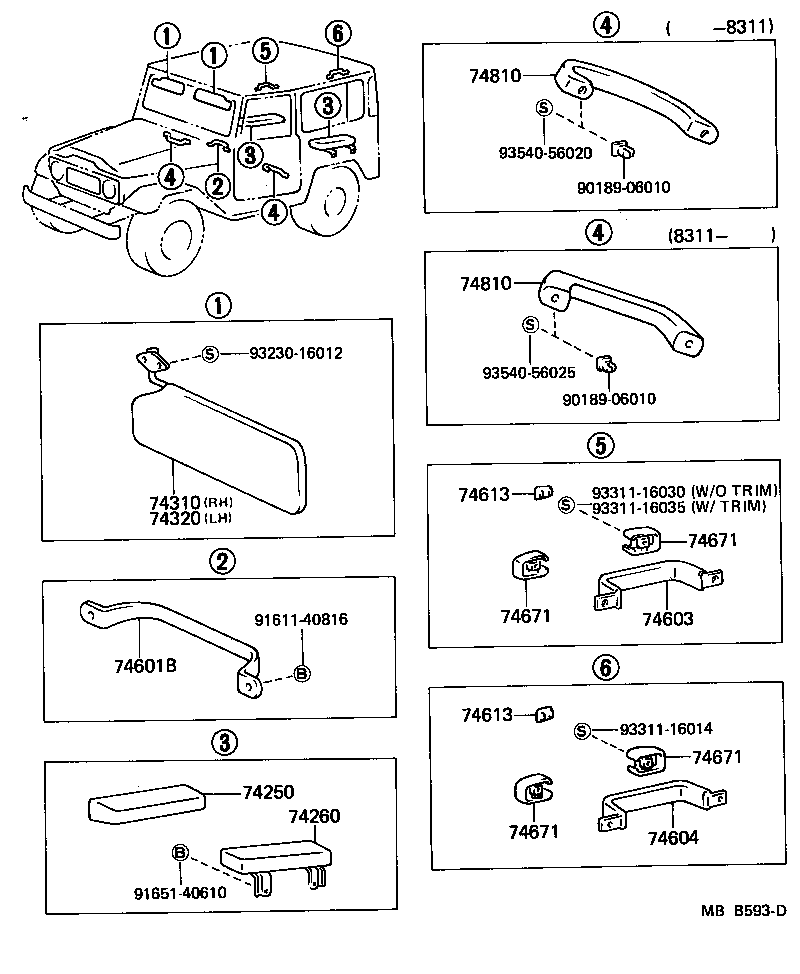

Click highlighted areas on diagram

diagram 74250 74260 74310 74320 74601B 74603 74604 74613 74613 74671 74671 74671 74671 74810 74810 9018906010 9018906010 9161140816 9165140610 9323016012 9331116014 9331116030 9331116035 9354056020 9354056025
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-90303

BJ4#,FJ4#,HJ47..EUR,GEN

 1
74320 - VISOR ASSY, LH
74320-90303

BJ4#,FJ4#,HJ47..EUR,GEN

 1
74601B - GRIP, INSTRUMENT PANEL SAFETY BAND
55351-60010

BJ4#,FJ4#,HJ47

 1
74810 - PULL ASSY, DOOR, INSIDE
74630-90800

BJ4#,FJ4#,HJ47

 2
74810-1001001

BJ4#,FJ4#,HJ47..3F,4F

BLACK

 2
74810 - PULL ASSY, DOOR, INSIDE
74630-90800

BJ4#,FJ4#,HJ47

 2
74810-1001001

BJ4#,FJ4#,HJ47..3F,4F

BLACK

 2
Common parts
90189-06010
91611-40816
91651-40610
93230-16012
93311-16014
93311-16030
93311-16035
93540-56020
93540-56025
