HJ47LP-K (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

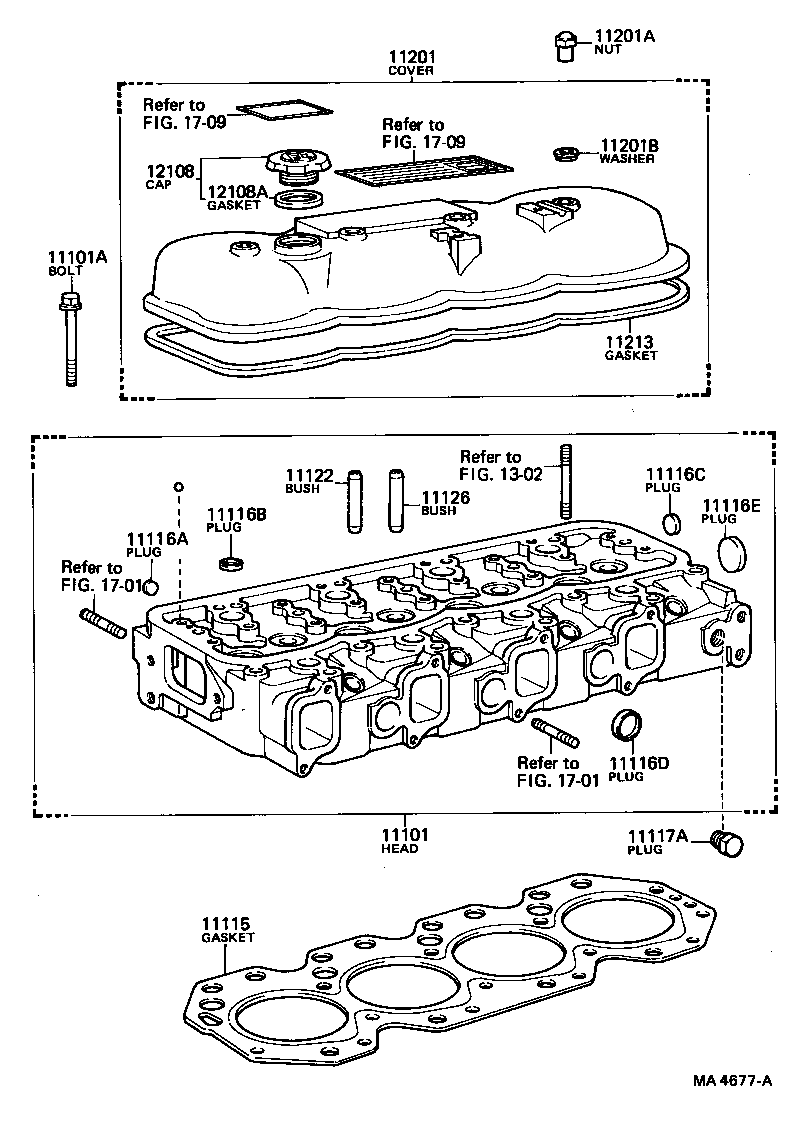

(8008-8410)B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-69015 |
2H..HJ47 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02046 |
2H..HJ47 *12-1.25PX119-25 |
26 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-68010 |
2H..HJ47 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42000 |
2H..HJ47 OD=20 |
3 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42500 |
2H..HJ47 OD=25 |
6 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-43000 |
2H..HJ47 OD=30 |
12 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-45000 |
2H..HJ47 OD=50 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54004 |
2H..HJ47 |
3 | ||
| 90345-54005 |
2H..HJ47 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-68010 |
2H..HJ47 STD |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-68010 |
2H..HJ47 STD |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-69055 |
2H..HJ47 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08014 |
2H..HJ47 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-13001 |
2H..HJ47 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-68010 |
2H..HJ47 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
2H..HJ47 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2H..HJ47 |
1 | ||
| Linked diagrams | ||||
| 1302 | ||||
| 1701 | ||||
| 1709 | ||||

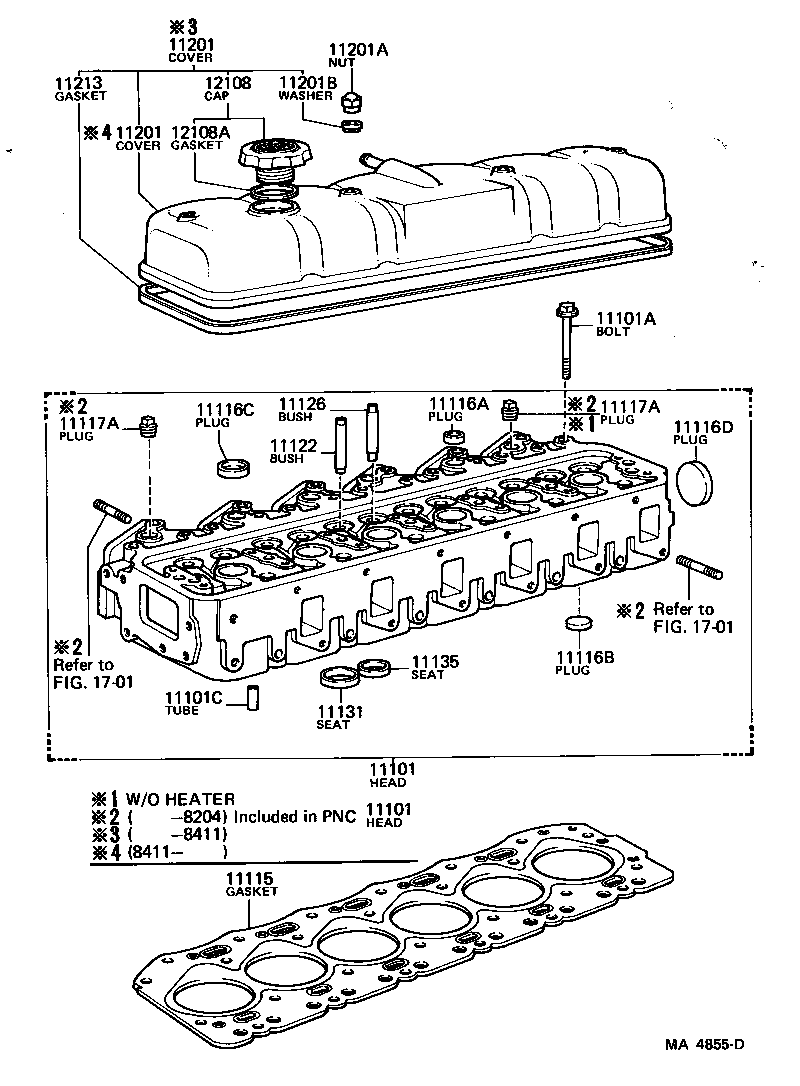

(8008-8506)2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-69015 |
2H..HJ47 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02046 |
2H..HJ47 *12-1.25PX119-25 |
26 | ||
| 11101C - TUBE(FOR CYLINDER HEAD) | ||||
| 90440-15141 |
2H..HJ47 |
6 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-68010 |
2H..HJ47 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42000 |
2H..HJ47 OD=20 |
3 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42500 |
2H..HJ47 OD=25 |
6 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-43000 |
2H..HJ47 OD=30 |
12 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-45000 |
2H..HJ47 OD=50 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54004 |
2H..HJ47 |
3 | ||
| 90345-54005 |
2H..HJ47 |
3 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54004 |
2H..HJ47 |
3 | ||
| 90345-54005 |
2H..HJ47 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-68010 |
2H..HJ47 STD |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-68010 |
2H..HJ47 STD |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-68010 |
2H..HJ47 STD |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-68010 |
2H..HJ47 STD |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-69055 |
2H..HJ47 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-69055 |
2H..HJ47 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08014 |
2H..HJ47 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-13001 |
2H..HJ47 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-68010 |
2H..HJ47 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
2H..HJ47 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2H..HJ47 |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
