HJ45RV-KC (1979)
Toyota Land Cruiser

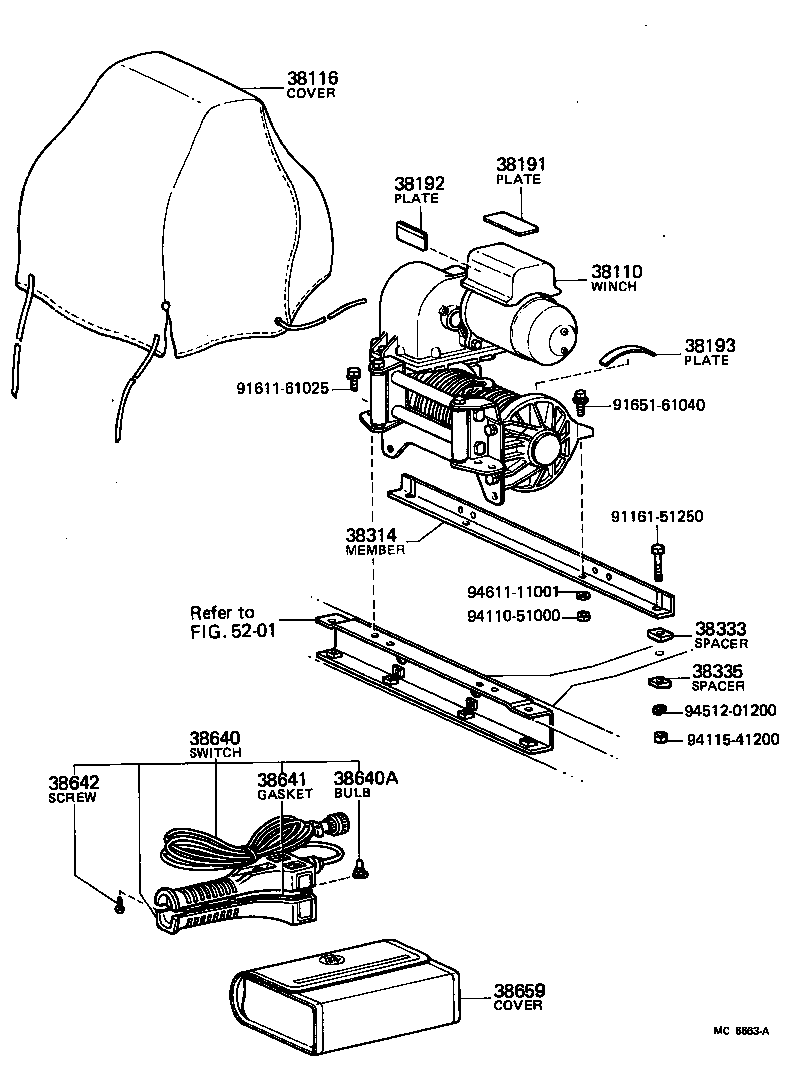

(7910-8007)BJ4#,FJ4#,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60050 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) ELECTRIC, FOR 12V |
1 | ||
| 38110-60010 |
BJ4#,FJ40,43,45,HJ45 MECHANICAL |
1 | ||
| 38116 - COVER, WINCH | ||||
| 38116-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
1 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 38192-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38193 - PLATE, WINCH CAUTION, NO.3 | ||||
| 38193-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38314 - MEMBER, REAR BASE | ||||
| 38314-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38333 - SPACER, MEMBER, NO.1 | ||||
| 38333-60010 |
BJ4#,FJ40,43,45,HJ45 |
2 | ||
| 38335 - SPACER, MEMBER, NO.2 | ||||
| 38334-60010 |
BJ4#,FJ40,43,45,HJ45 |
2 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
1 | ||
| 38640A - BULB (FOR WINCH CONTROL SWITCH) | ||||
| 90981-11024 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) 12V 1.4W,1.4W 12V |
2 | ||
| 38641 - GASKET (FOR WINCH CONTROL SWITCH) | ||||
| 38641-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38642 - SCREW (FOR WINCH CONTROL SWITCH) | ||||
| 38642-60010 |
BJ4#,FJ4#,HJ45 |
8 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| Common parts | ||||
| 91161-51250 | ||||
| 91611-61025 | ||||
| 91651-61040 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 5201 | ||||

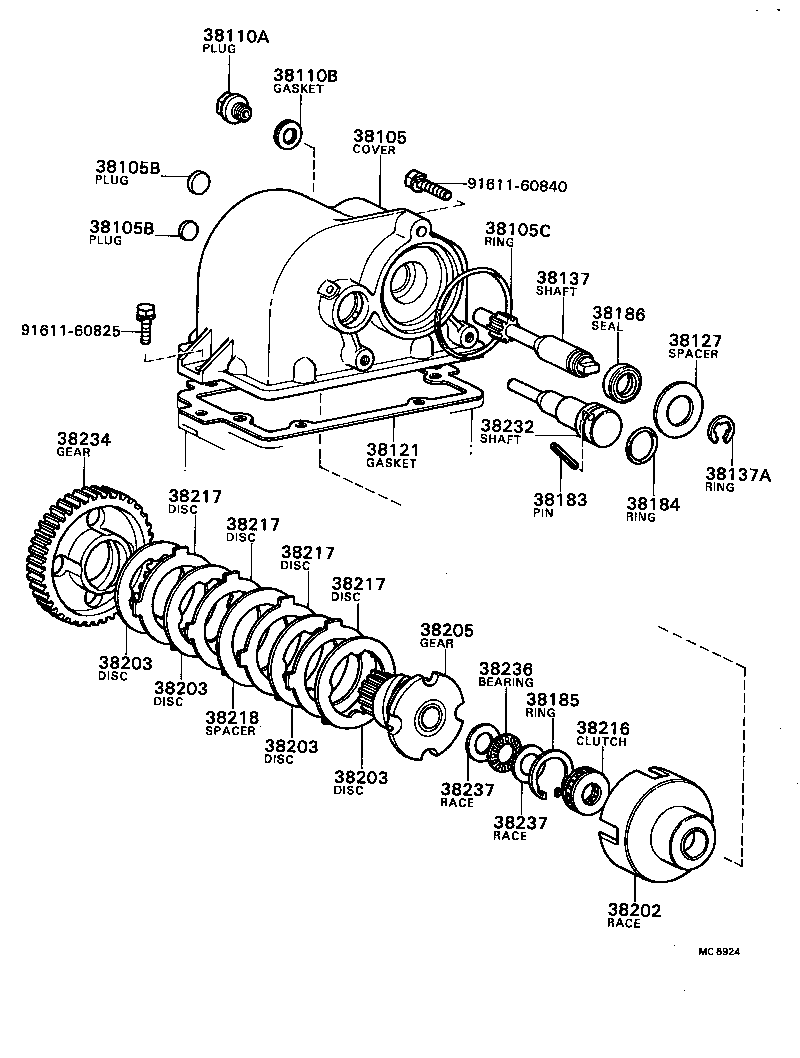

(7910-8007)BJ4#,FJ4#,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
1 | ||
| 38105-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| 38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER) | ||||
| 90331-16050 |
BJ4#,FJ4#,HJ45 OD=16 |
1 | ||
| 90331-20001 |
BJ4#,FJ4#,HJ45 OD=20 |
1 | ||
| 38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER) | ||||
| 90331-16050 |
BJ4#,FJ4#,HJ45 OD=16 |
1 | ||
| 90331-20001 |
BJ4#,FJ4#,HJ45 OD=20 |
1 | ||
| 38105C - RING, O (FOR WINCH GEAR CASE COVER) | ||||
| 90301-59044 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38110A - PLUG, FILLER | ||||
| 90341-18002 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38110B - GASKET (FOR FILLER PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
2 | ||
| 38121-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
1 | ||
| 38127 - SPACER, INPUT SHAFT | ||||
| 38127-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38137 - SHAFT, WINCH INPUT | ||||
| 38137-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38137A - RING, E (FOR WINCH INPUT SHAFT) | ||||
| 96160-01500 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38183 - PIN, BRAKE SHAFT LOCK | ||||
| 38183-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38184 - RING, BRAKE SHAFT, O | ||||
| 38184-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38185 - RING, CLUTCH OUTER RACE SNAP | ||||
| 38185-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38186 - SEAL, GEAR CASE COVER OIL | ||||
| 38186-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38202 - RACE SUB-ASSY, CLUTCH, OUTER | ||||
| 38202-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38205 - GEAR SUB-ASSY, BRAKE SHAFT DRIVEN | ||||
| 38205-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38216 - CLUTCH, WINCH 1 WAY | ||||
| 38216-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38218 - SPACER, CLUTCH DISC | ||||
| 38218-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38232 - SHAFT, WINCH BRAKE | ||||
| 38232-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38234 - GEAR, BRAKE SHAFT DRIVE | ||||
| 38234-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38236 - BEARING, GEAR THRUST | ||||
| 38236-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38237 - RACE, GEAR THRUST BEARING | ||||
| 38237-60040 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 38237 - RACE, GEAR THRUST BEARING | ||||
| 38237-60040 |
BJ4#,FJ4#,HJ45 |
2 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||

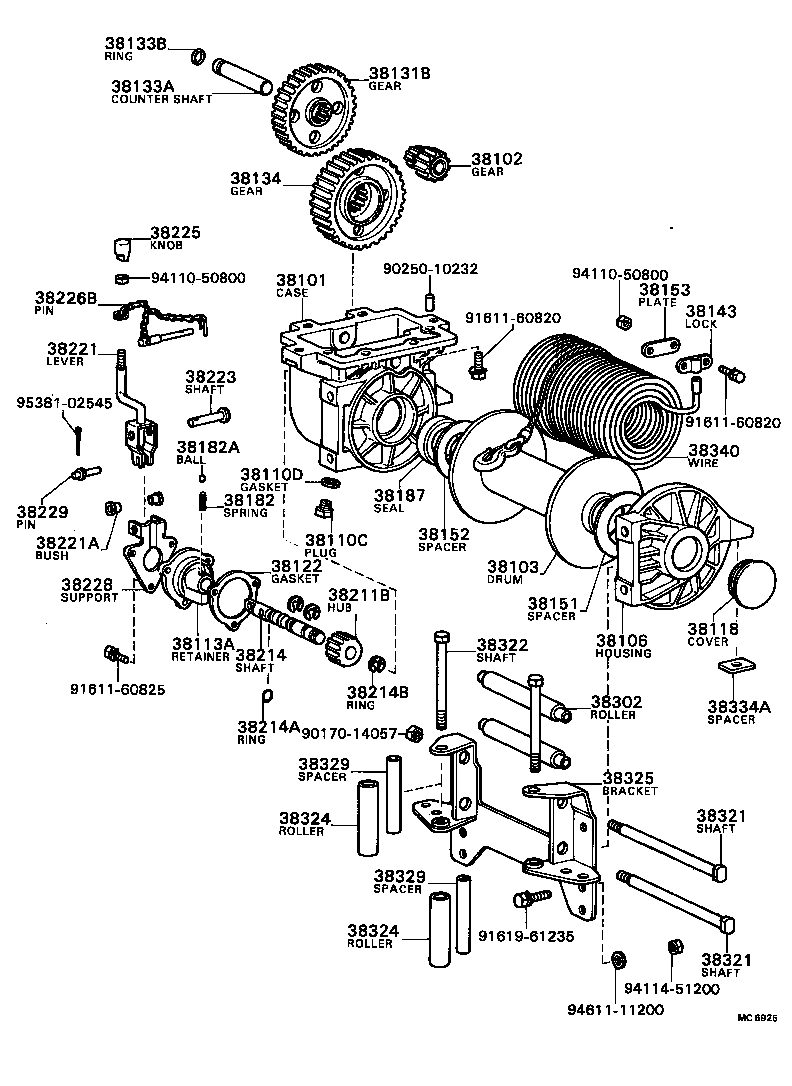

(7910-8007)BJ4#,FJ4#,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| 38101-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
1 | ||
| 38102 - GEAR SUB-ASSY, COUNTERSHAFT | ||||
| 38102-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| 38103-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
1 | ||
| 38106 - HOUSING SUB-ASSY, WINCH DRUM | ||||
| 38106-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38110C - PLUG, DRAIN | ||||
| 90341-18057 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38110D - GASKET (FOR DRAIN PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38113A - RETAINER, SHIFT SHAFT | ||||
| 38113-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38118 - COVER, WINCH DRUM HOUSING | ||||
| 38118-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38122 - GASKET, SHIFT SHAFT RETAINER | ||||
| 38122-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38131B - GEAR, COUNTER, NO.1 | ||||
| 38131-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38133A - COUNTER SHAFT | ||||
| 38133-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38133B - RING, O (FOR COUNTER SHAFT) | ||||
| 96710-02014 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38134 - GEAR, WINCH OUTPUT | ||||
| 38134-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38143 - LOCK, WIRE | ||||
| 38143-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
1 | ||
| 38151 - SPACER, WINCH DRUM, NO.1 | ||||
| 38151-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38152 - SPACER, WINCH DRUM, NO.2 | ||||
| 38152-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38153 - PLATE, WIRE LOCK | ||||
| 38153-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38182 - SPRING, SHIFT LOCK | ||||
| 38182-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38182A - BALL (FOR SHIFT LOCK SPRING) | ||||
| 90360-06004 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38187 - SEAL, GEAR CASE OIL | ||||
| 38187-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38211B - HUB, WINCH CLUTCH | ||||
| 38211-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38214 - SHIM, WINCH WORM ADJUST, NO.2 | ||||
| 38214-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38214A - RING, O (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 90301-11053 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38214B - RING, E (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 96160-01200 |
BJ4#,FJ4#,HJ45 |
3 | ||
| 38221 - LEVER, CLUTCH HUB SHIFT | ||||
| 38221-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38221A - BUSH (FOR CLUTCH HUB SHIFT LEVER) | ||||
| 90386-10121 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 38223 - SHAFT, CLUTCH SHIFT LEVER | ||||
| 38223-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38225 - KNOB, WINCH CLUTCH LEVER | ||||
| 38225-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| 38225-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
1 | ||
| 38226B - PIN, CLUTCH SHIFT LEVER LOCK | ||||
| 38226-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38228 - SUPPORT, CLUTCH SHIFT LEVER | ||||
| 38228-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38229 - PIN, CLUTCH SHIFT LEVER | ||||
| 38229-60040 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38302 - ROLLER SUB-ASSY, WINCH WIRE GUIDE | ||||
| 38302-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38321 - SHAFT, WINCH ROLLER | ||||
| 38321-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38321 - SHAFT, WINCH ROLLER | ||||
| 38321-60010 |
BJ4#,FJ40,43,45,55,HJ45 |
2 | ||
| 38322 - SHAFT, WINCH ROLLER, NO.2 | ||||
| 38322-60040 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
2 | ||
| 38324-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
2 | ||
| 38324-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
2 | ||
| 38325 - BRACKET, WINCH ROLLER, NO.1 | ||||
| 38325-60010 |
FJ40,43,45,55 |
1 | ||
| 38325-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
1 | ||
| 38329 - SPACER, WINCH WIRE GUIDE ROLLER | ||||
| 38329-60040 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 38329 - SPACER, WINCH WIRE GUIDE ROLLER | ||||
| 38329-60040 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 38334A - SPACER, REAR MEMBER | ||||
| 38334-60040 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-60040 |
BJ4#,FJ4#,HJ45 ELECTRIC |
1 | ||
| 38340-60010 |
BJ4#,FJ40,43,45,55,HJ45 MECHANICAL |
1 | ||
| Common parts | ||||
| 90170-14057 | ||||
| 90250-10232 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91619-61235 | ||||
| 94110-50800 | ||||
| 94114-51200 | ||||
| 94611-11200 | ||||
| 95381-02545 | ||||

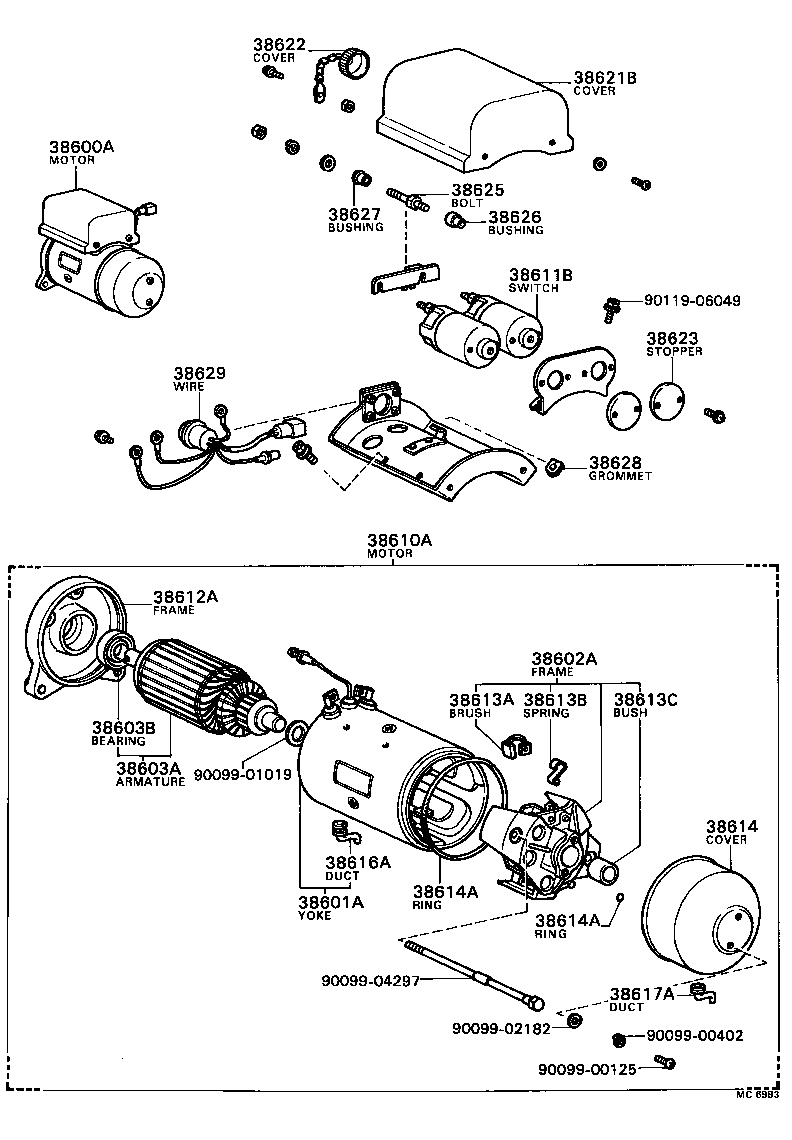

(7910-8007)BJ4#,FJ4#,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
1 | ||
| 38601A - YOKE SUB-ASSY, WINCH MOTOR | ||||
| 38601-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
1 | ||
| 38602A - FRAME SUB-ASSY, CUMMUTATOR END (FOR WINCH MOTER) | ||||
| 38602-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
1 | ||
| 38603A - ARMATURE SUB-ASSY, WINCH MOTOR | ||||
| 38603-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10130 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38610A - MOTOR ASSY, WINCH | ||||
| 38610-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
1 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
2 | ||
| 38612A - FRAME, WINCH MOTOR END | ||||
| 38612-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38613A - BRUSH, WINCH MOTOR | ||||
| 38613-60010 |
FJ4#;BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN) FOR 12V |
4 | ||
| 38613B - SPRING, WINCH MOTOR BRUSH | ||||
| 28143-46012 |
BJ4#,FJ4#,HJ45 |
4 | ||
| 38613C - BUSH (FOR WINCH MOTOR) | ||||
| 28111-46011 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38614 - COVER, COMMUTATOR WINCH | ||||
| 38614-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14028 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 90099-14023 |
BJ4#,FJ4#,HJ45 OD=112.4 |
1 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14028 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 90099-14023 |
BJ4#,FJ4#,HJ45 OD=112.4 |
1 | ||
| 38616A - DUCT, YOKE WINCH | ||||
| 38616-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38617A - DUCT, COVER WINCH | ||||
| 38617-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38621B - COVER, MAGNET SWITCH WINCH | ||||
| 38621-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38622 - COVER, CONNECTOR WINCH | ||||
| 38622-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 38625 - BOLT, STUD WINCH MOTOR | ||||
| 38625-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38626 - BUSHING, STEPPED FEMALE WINCH MOTOR | ||||
| 38626-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38627 - BUSHING, STEPPED MALE WINCH MOTOR | ||||
| 38627-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38628 - GROMET, WINCH | ||||
| 38628-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 38629 - WIRE, WINCH MOTOR | ||||
| 38629-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| Common parts | ||||
| 90099-00125 | ||||
| 90099-00402 | ||||
| 90099-01019 | ||||
| 90099-02182 | ||||
| 90099-04297 | ||||
| 90119-06049 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
