HJ45RP-KQ3 (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7906-8007)FJ40,45..WORB..ARL

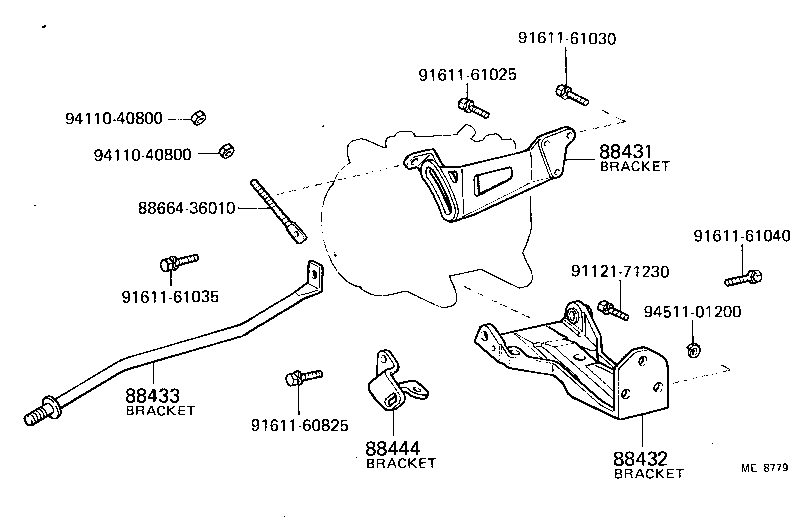

Click highlighted areas on diagram

diagram 88431 88432 88433 88444 8866436010 9112171230 9161160825 9161161025 9161161030 9161161035 9161161040 9411040800 9411040800 9451101200
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88437-60100

FJ40,45..WORB..ARL

FOR N.S.W.

 1
88437-60110

FJ40,45..WORB..ARL

L/POWER STEERING

 1
88437-60120

FJ40,45..RHD..(PIC,V)

 1
88437-60120

FJ40,45..WORB..ARL

W/POWER STEERING

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
12301-61011

FJ40,45..WORB..ARL

 1
88433 - BRACKET, COMPRESSOR MOUNTING, NO.3
53016-60040

FJ40,45..WORB..ARL

 1
88444 - BRACKET, IDLE PULLEY
88444-60020

FJ40,45..RHD..(PIC,V)

 1
Common parts
88664-36010
91121-71230
91611-60825
91611-61025
91611-61030
91611-61035
91611-61040
94110-40800
94511-01200
