HJ45LP-KW3 (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)

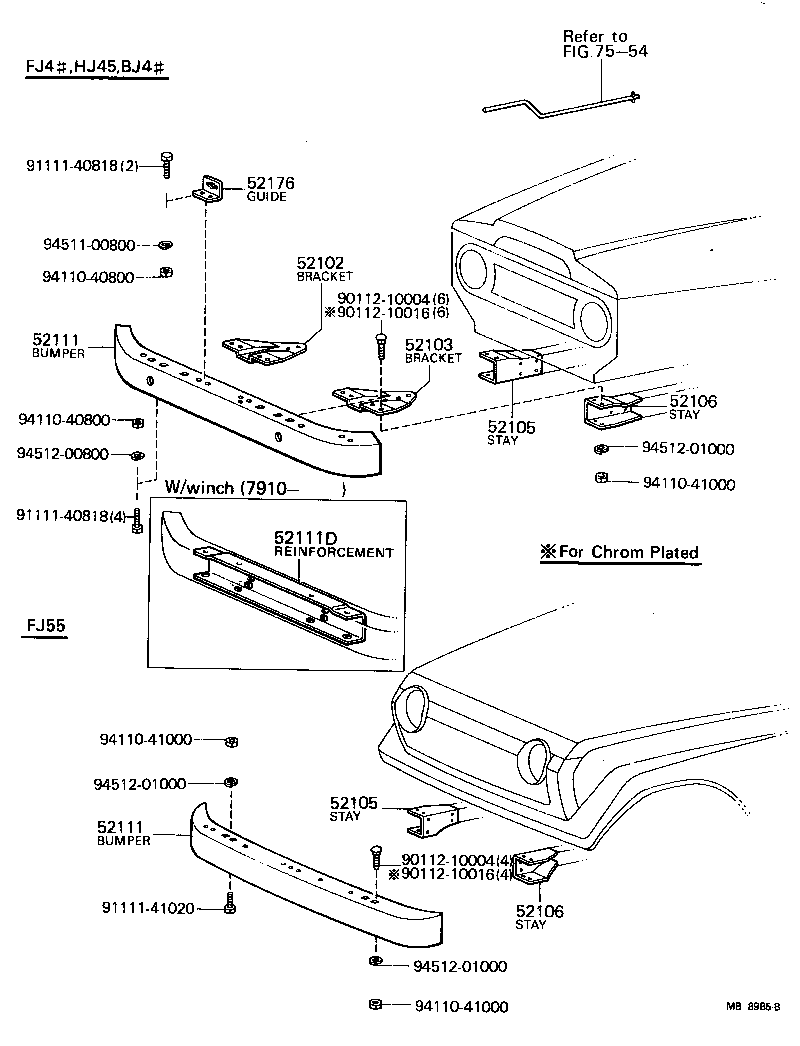

Click highlighted areas on diagram

diagram 52102 52103 52105 52105 52106 52106 52111 52111 52111D 52176 7554 9011210004 9011210004 9011210016 9011210016 9111140818 9111140818 9111141020 9411040800 9411040800 9411041000 9411041000 9411041000 9451100800 9451200800 9451201000 9451201000 9451201000
Part # Description Qty Price
52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH
52116-60010

BJ4#,FJ4#,HJ45

 1
52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH
52116-60010

BJ4#,FJ4#,HJ45

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52141-60010

BJ4#,FJ4#,HJ45

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52141-60010

BJ4#,FJ4#,HJ45

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-60010

BJ4#,FJ4#,HJ45

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-60010

BJ4#,FJ4#,HJ45

 1
52111 - BUMPER ASSY, FRONT
52111-60030

BJ4#,FJ4#,HJ45

 1
52111-60060

BJ4#,FJ4#,HJ45

CHROME PLATED

 1
52111 - BUMPER ASSY, FRONT
52111-60030

BJ4#,FJ4#,HJ45

 1
52111-60060

BJ4#,FJ4#,HJ45

CHROME PLATED

 1
52111D - REINFORCEMENT, FRONT BUMPER
52131-60010

BJ4#,FJ4#,HJ45

W/WINCH

 1
52176 - GUIDE, STARTING HANDLE
52171-69020

FJ4#,HJ45

 1
Common parts
90112-10004
90112-10016
91111-40818
91111-41020
94110-40800
94110-41000
94511-00800
94512-00800
94512-01000
Linked diagrams
7554
