4706 - REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

HJ45LP-KW3 (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine H

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7509-8007)FJ45,HJ45

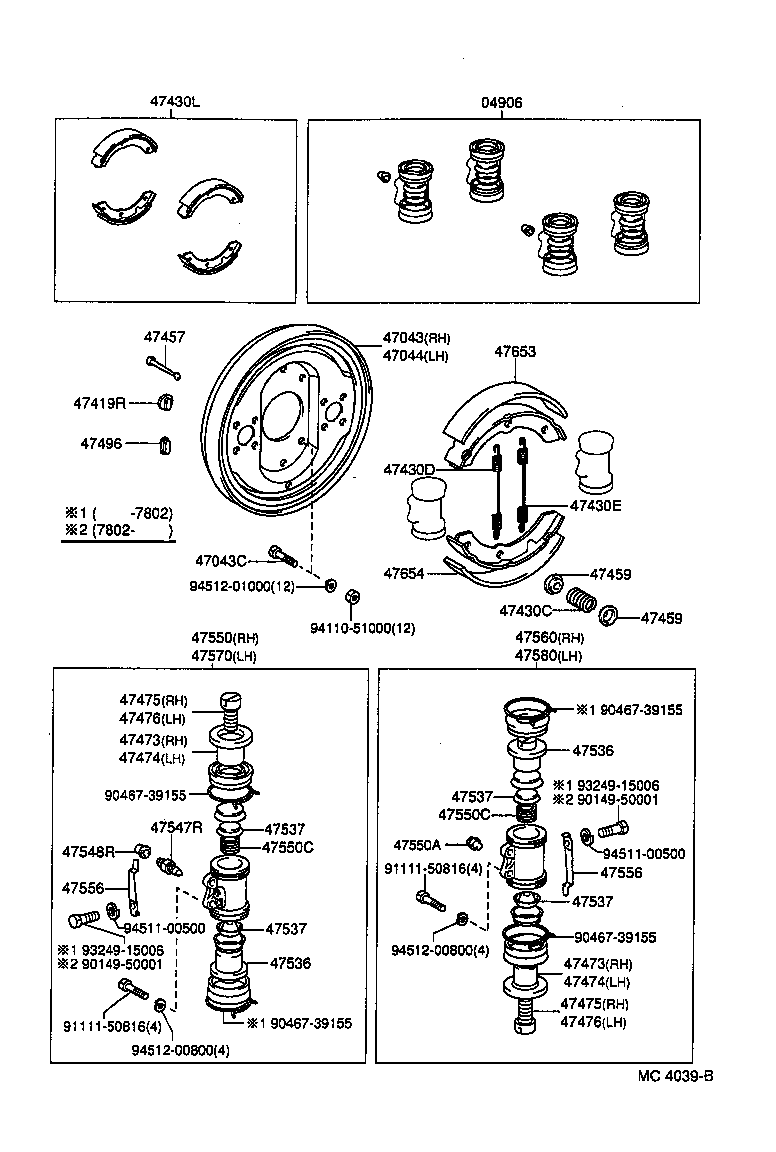

Click highlighted areas on diagram

Part #	Description	Period	Qty
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-36040	FJ45,HJ45	02/1978 - 07/1980	1
04906-35060	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-60030	FJ45,HJ45	09/1975 - 08/1976	1
47043-60040	FJ45,HJ45 FOR FULL FLOATING AXLE	09/1975 - 07/1980	1
47043-60030	FJ45,HJ45..EUR,GEN FOR SEMI FLOATING AXLE	08/1976 - 07/1980	1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-35010	BJ4#,FJ4#,55,HJ45 FOR SEMI FLOATING AXLE	03/1969 - 07/1980	12
90101-10061	BJ4#,FJ4#,55,HJ45 FOR FULL FLOATING AXLE	09/1975 - 07/1980	16
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47043-60030	FJ45,HJ45	09/1975 - 08/1976	1
47043-60040	FJ45,HJ45 FOR FULL FLOATING AXLE	09/1975 - 07/1980	1
47043-60030	FJ45,HJ45..EUR,GEN FOR SEMI FLOATING AXLE	08/1976 - 07/1980	1
47419R - PLUG, HOLE(FOR REAR BRAKE)
47419-35011	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	4
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-23002	FJ45,HJ45	09/1975 - 07/1980	2
47430L - SHOE KIT, REAR BRAKE
04494-60010	BJ4#,FJ4#,55,HJ45	03/1969 - 09/1975	1
04494-60020	FJ45,HJ45	09/1975 - 07/1980	1
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-35020	BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SEMI FLOATING AXLE	08/1976 - 07/1980	4
47447-60010	FJ45,HJ45 FOR FULL FLUATING AXLE	09/1975 - 07/1980	4
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-20010	FJ45,HJ45	09/1975 - 03/1976	8
47449-30020	FJ45,HJ45	03/1976 - 07/1980	8
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-20010	FJ45,HJ45	09/1975 - 03/1976	8
47449-30020	FJ45,HJ45	03/1976 - 07/1980	8
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47552-25040	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47551-36071	FJ45,HJ45	02/1978 - 07/1980	2
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47551-36071	FJ45,HJ45	02/1978 - 07/1980	2
47552-25040	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47551-25040	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47552-36071	FJ45,HJ45	02/1978 - 07/1980	2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47551-25040	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47552-36071	FJ45,HJ45	02/1978 - 07/1980	2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47554-25010	FJ45,HJ45	09/1975 - 02/1978	2
47554-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47553-36021	FJ45,HJ45	02/1978 - 06/1979	2
47553-60030	FJ45,HJ45	06/1979 - 07/1980	2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47554-25010	FJ45,HJ45	09/1975 - 02/1978	2
47554-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47553-36021	FJ45,HJ45	02/1978 - 06/1979	2
47553-60030	FJ45,HJ45	06/1979 - 07/1980	2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47553-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47553-25010	FJ45,HJ45	09/1975 - 02/1978	2
47554-36021	FJ45,HJ45	02/1978 - 06/1979	2
47554-60030	FJ45,HJ45	06/1979 - 07/1980	2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47553-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47553-25010	FJ45,HJ45	09/1975 - 02/1978	2
47554-36021	FJ45,HJ45	02/1978 - 06/1979	2
47554-60030	FJ45,HJ45	06/1979 - 07/1980	2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-36010	BJ4#,FJ4#,55,HJ45	09/1978 - 07/1980	4
47491-35021	BJ4#,FJ4#,55,HJ45	03/1969 - 12/1974	4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-35030	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-35030	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35030	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35030	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35030	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35030	FJ43,45,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-35020	FJ43,45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47550-29085	FJ45,HJ45	09/1975 - 03/1979	1
47550-29215	FJ45,HJ45	03/1979 - 06/1979	1
47550-69095	FJ45,HJ45	06/1979 - 07/1980	1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-08122	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-08122	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-36020	BJ4#,FJ4#,55,HJ45	02/1978 - 07/1980	4
47555-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 02/1978	4
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-36020	BJ4#,FJ4#,55,HJ45	02/1978 - 07/1980	4
47555-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 02/1978	4
47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47560-35010	FJ43,45 FOR SINGLE M/C	03/1969 - 09/1971	1
47560-29015	FJ45,HJ45	09/1975 - 03/1979	1
47560-29075	FJ45,HJ45	03/1979 - 06/1979	1
47560-69075	FJ45,HJ45	06/1979 - 07/1980	1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-35010	FJ43,45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47570-29015	FJ45,HJ45	09/1975 - 03/1979	1
47570-29075	FJ45,HJ45	03/1979 - 06/1979	1
47570-69085	FJ45,HJ45	06/1979 - 07/1980	1
47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47580-35010	FJ43,45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47580-29015	FJ45,HJ45	09/1975 - 03/1979	1
47580-69075	FJ45,HJ45	06/1979 - 07/1980	1
47580-29075	FJ45,HJ45	03/1979 - 06/1979	1
47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47651-60020	FJ45,HJ45	09/1975 - 07/1980	2
47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47651-60020	FJ45,HJ45	09/1975 - 07/1980	2
Common parts
90149-50001
90467-39155
91111-50816
93249-15006
94110-51000
94511-00500
94512-00800
94512-01000

(7509-8007)FJ45,HJ45

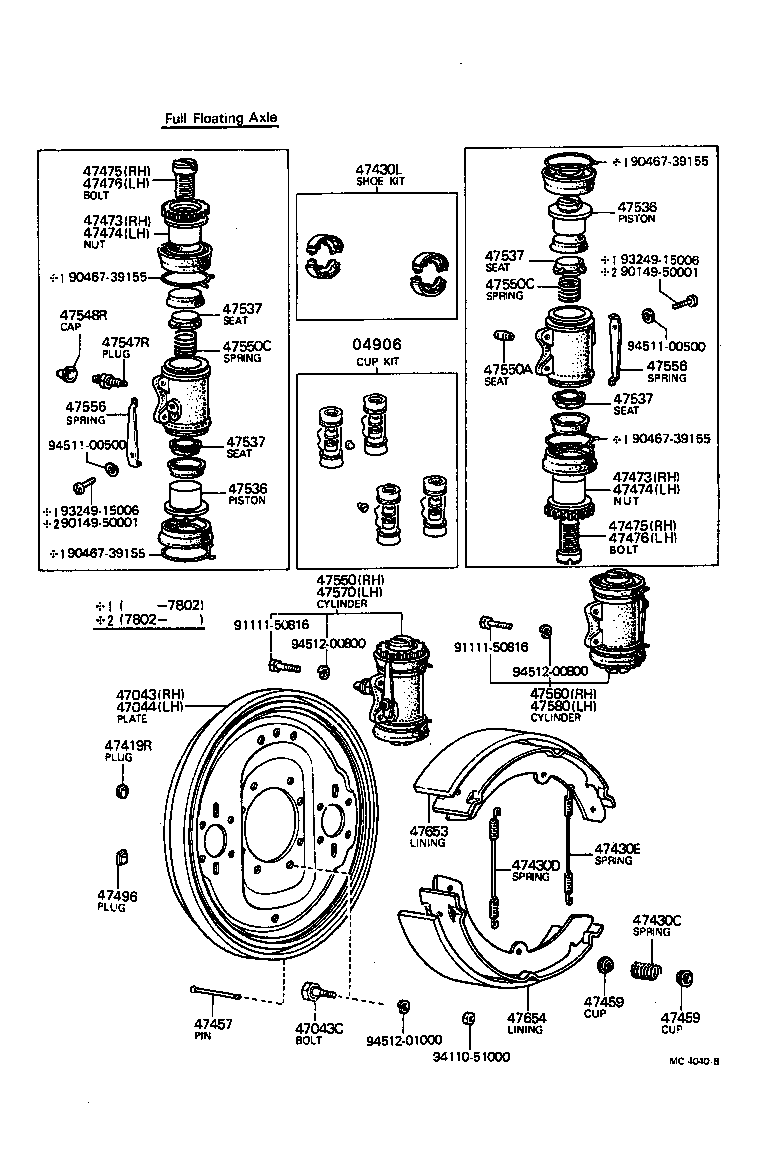

Click highlighted areas on diagram
