HJ45LP-B3 (1972)

Toyota Land Cruiser

Production Apr 1972 - Jan 1975
Engine H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7204-7306)H

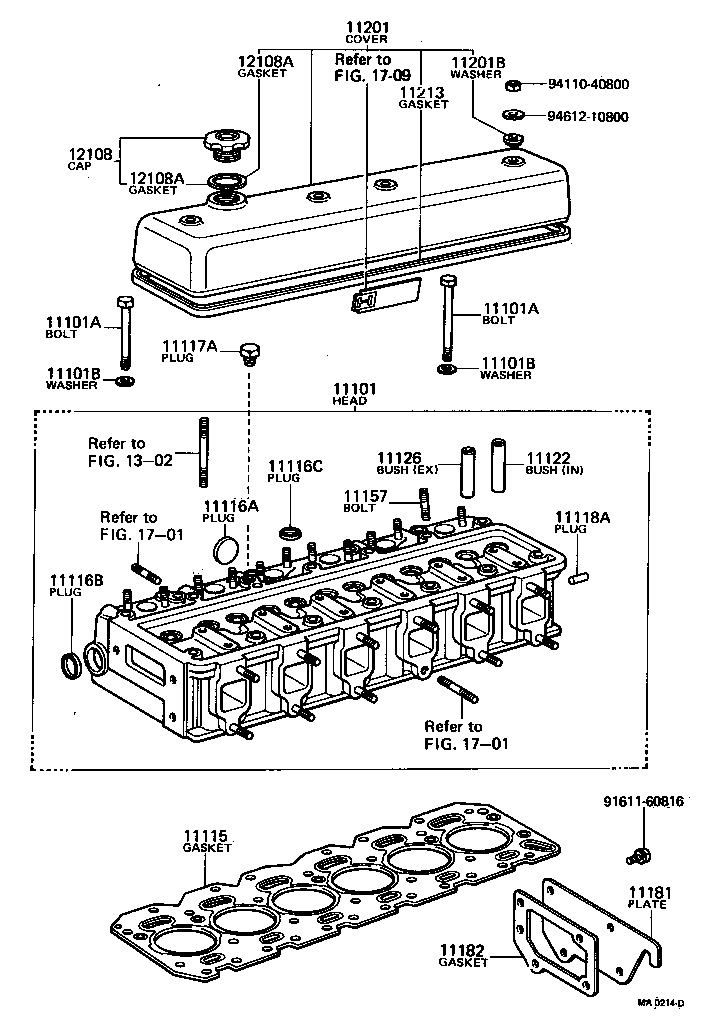

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11115 11116A 11116B 11116C 11117A 11118A 11122 11126 11157 11181 11182 11201 11201B 11213 12108 12108A 12108A 1302 1701 1701 1709 9161160816 9411040800 9461210800
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49098

H..HJ45

 1
11101-49097

H..HJ45

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02027

H..HJ45

13-1.5PX113-25

 14
90910-02024

H..HJ45

13-1.25PX107-21

 6
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02027

H..HJ45

13-1.5PX113-25

 14
90910-02024

H..HJ45

13-1.25PX107-21

 6
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13175

H..HJ45

 14
90201-10290

H..HJ45

 6
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13175

H..HJ45

 14
90201-10290

H..HJ45

 6
11115 - GASKET, CYLINDER HEAD
11115-47011

H..HJ45

 1
11116A - PLUG, TIGHT, NO.1
90331-30013

H..HJ45

OD=30

 7
11116B - PLUG, TIGHT, NO.2
90331-25011

H..HJ45

OD=25

 6
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54021

H..HJ45

 2
11118A - PLUG, STRAIGHT, NO.1
90334-08004

H..HJ45

L=3.5,OD=6.7

 1
11157 - BOLT, STUD(FOR HEAD TO NOZZLE & NOZZLE SET)
90116-10134

H..HJ45

L=39,S=10&20

 12
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-49035

H..HJ45

 1
11201-49036

H..HJ45

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-47011

H..HJ45

 1
Common parts
91611-60816
94110-40800
94612-10800
Linked diagrams
1302
1701
1709
