HJ45LP-B (1972)

Toyota Land Cruiser

Production Apr 1972 - Jan 1975
Engine H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ4#,HJ45

Click highlighted areas on diagram

diagram 27700 83420 83520 83540 83540 84461 85440 85917 86530 9017906158 9165140612 9165140616 9165640616 9165640816
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-60080

F,H..FJ4#,55,HJ45

 1
27700-40010

F,H..FJ4#,55,HJ45

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20010

FJ4#,HJ45

 1
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-55010

FJ4#,55,HJ45

 1
Common parts
90179-06158
91651-40612
91651-40616
91656-40616
91656-40816

(6903-8007)BJ4#,FJ4#,HJ45

Click highlighted areas on diagram

diagram 81908 81981 82600 82600 82600F 82600F 82611 82611 82612 82612A 84140 84201 84210 84210T 85915 89550 89550 89559 89620 9011706173 9020616025 9046106303 9052414001 9111140610 9111140610 9161140616 9165140612 9165140614 9165140614 9165140620 9165140620 9165640816 9411040600 9451100600 9451100600 9451100600 9451200600 9461110600
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
99118-62920

BJ4#,FJ4#,55,HJ45

20A,20A

 2
99118-62915

BJ4#,FJ4#,55,HJ45

15A,15A

 8
82600F - FUSE, FUSE BLOCK
99118-62920

BJ4#,FJ4#,55,HJ45

20A,20A

 2
99118-62915

BJ4#,FJ4#,55,HJ45

15A,15A

 8
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-59620

FJ4#,HJ45

 1
84201 - BRACKET SUB-ASSY, BACK-UP LAMP SWITCH
84095-60022

FJ40,43,45..LHD

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-30021

FJ40,43,45,55

3-SPEED,COLUMN SHIFT

 1
84210-20012

BJ4#,FJ4#,55,HJ45

4-SPEED,FLOOR SHIFT

 1
89550 - COMPUTER ASSY, EMISSION CONTROL
89550-12050

FJ4#,55,HJ45

EUR. SPEC.

 1
89550 - COMPUTER ASSY, EMISSION CONTROL
89550-12050

FJ4#,55,HJ45

EUR. SPEC.

 1
89559 - BRACKET, EMISSION CONTROL COMPUTER
89591-90302

FJ4#,55,HJ45

EUR. SPEC.

 1
Common parts
90117-06173
90206-16025
90461-06303
90524-14001
91111-40610
91611-40616
91651-40612
91651-40614
91651-40620
91656-40816
94110-40600
94511-00600
94512-00600
94611-10600

(6903-8007)BJ4#,FJ4#,HJ45

Click highlighted areas on diagram

diagram 28300 28300 28309 28371A 28610 81908 81980 81980 84095 84340 84380 84380 85999A 86650 9161140612 9161140612 9165140612 9165140616 9165640616 9165640616 9165640616 9165640616 9165640616 9165640616 9165640616 9331915008 9412040800 9412040800 9412040800 9412041000 9453100860
Part # Description Qty Price
84340 - SWITCH ASSY, STOP LAMP
84340-30013

BJ4#,FJ4#,55,HJ45

FOR SINGLE MASTER CYLINDER

 1
Common parts
91611-40612
91651-40612
91651-40616
91656-40616
93319-15008
94120-40800
94120-41000
94531-00860

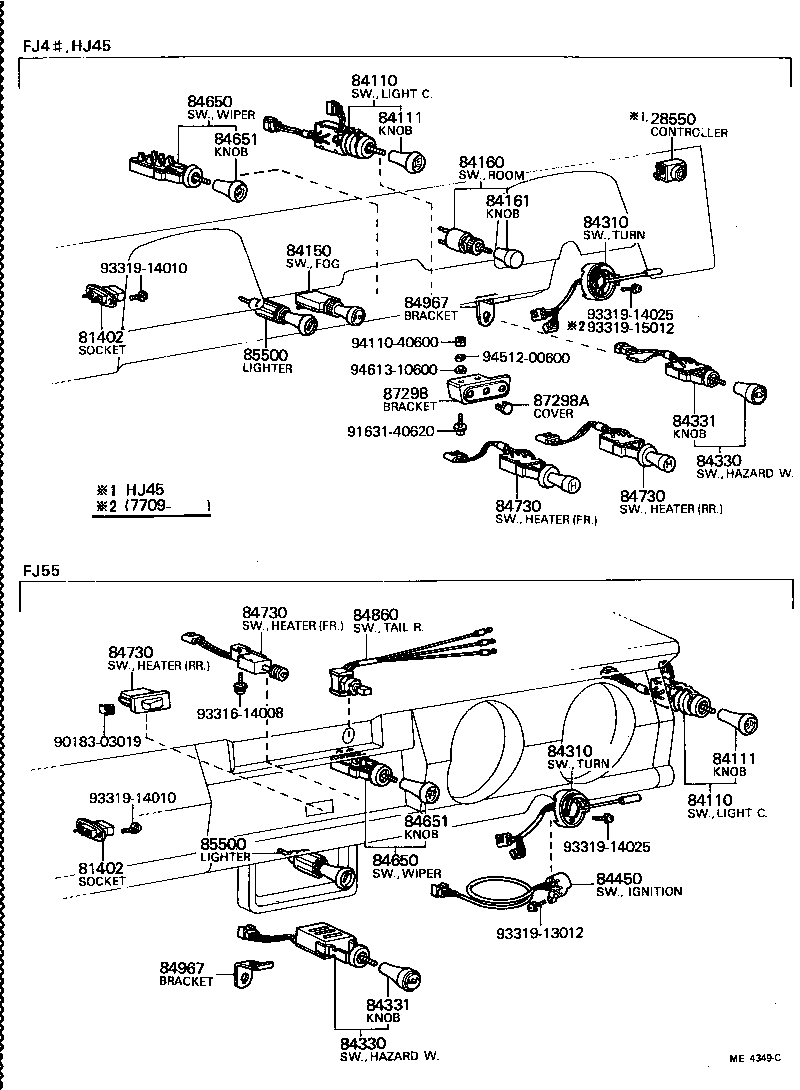

(6903-7209)

Click highlighted areas on diagram

diagram 28550 81402 81402 84110 84110 84111 84111 84150 84160 84161 84310 84310 84330 84330 84331 84331 84450 84650 84650 84651 84651 84730 84730 84730 84730 84860 84967 84967 85500 85500 87298 87298A 9018303019 9163140620 9331614008 9331913012 9331914010 9331914010 9331914025 9331914025 9331915012 9411040600 9451200600 9461310600
Part # Description Qty Price
28550 - CONTROLLER ASSY, GLOW PLUG
28550-47020

H..HJ45

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-60021

FJ4#,55,HJ45

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-60021

FJ4#,55,HJ45

 1
84150 - SWITCH ASSY, FOG LAMP
84160-55021

BJ4#,FJ4#,HJ45

 1
84160-60020

FJ4#,HJ45

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-60030

FJ4#,55,HJ45

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-60030

FJ4#,55,HJ45

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-20031

BJ4#,FJ4#,55,HJ45

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-20031

BJ4#,FJ4#,55,HJ45

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-60051

FJ4#,55,HJ45

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-60051

FJ4#,55,HJ45

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-60021

FJ4#,55,HJ45

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-60021

FJ4#,55,HJ45

 1
84730 - SWITCH ASSY, HEATER BLOWER
87290-60031

FJ4#,HJ45

FRONT

 1
84730 - SWITCH ASSY, HEATER BLOWER
87290-60031

FJ4#,HJ45

FRONT

 1
84730 - SWITCH ASSY, HEATER BLOWER
87290-60031

FJ4#,HJ45

FRONT

 1
84730 - SWITCH ASSY, HEATER BLOWER
87290-60031

FJ4#,HJ45

FRONT

 1
Common parts
90183-03019
91631-40620
93316-14008
93319-13012
93319-14010
93319-14025
93319-15012
94110-40600
94512-00600
94613-10600

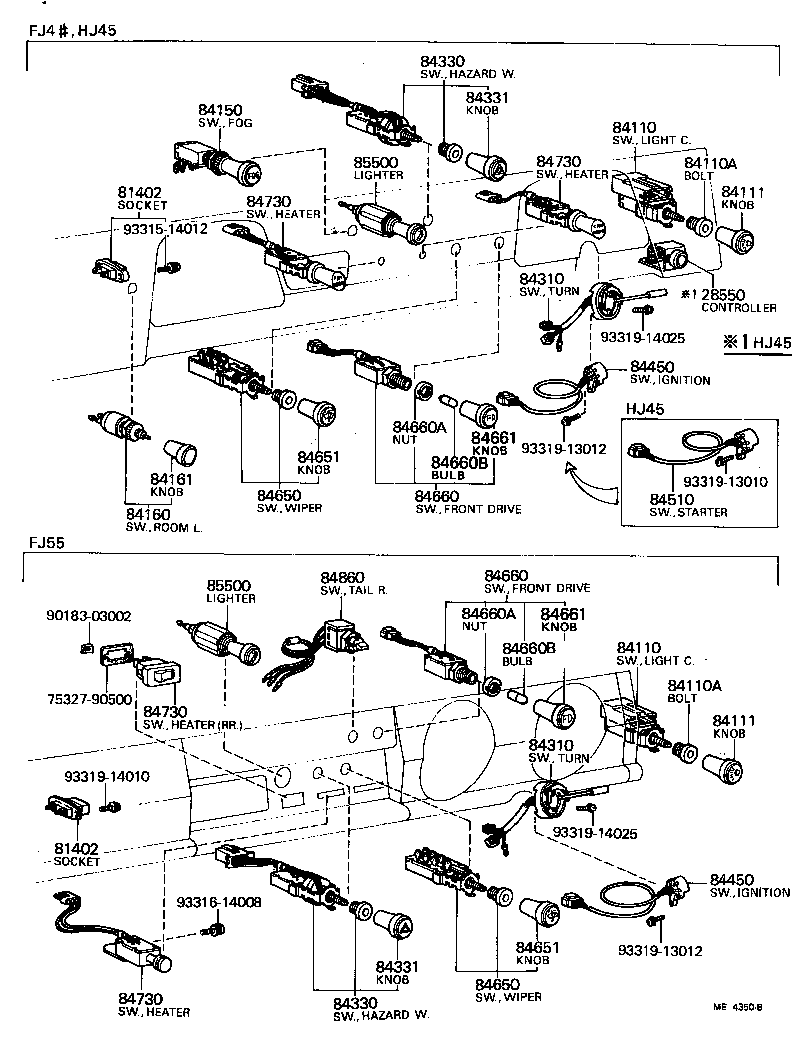

(7209-7309)

Click highlighted areas on diagram

diagram 28550 7532790500 81402 81402 84110 84110 84110A 84110A 84111 84111 84150 84160 84161 84310 84310 84330 84330 84331 84331 84450 84450 84510 84650 84650 84651 84651 84660 84660 84660A 84660A 84660B 84660B 84661 84661 84730 84730 84730 84730 84860 85500 85500 9018303002 9331514012 9331614008 9331913010 9331913012 9331913012 9331914010 9331914025 9331914025
Part # Description Qty Price
28550 - CONTROLLER ASSY, GLOW PLUG
28550-47020

H..HJ45

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-60021

FJ4#,55,HJ45

 1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-60021

FJ4#,55,HJ45

 1
84150 - SWITCH ASSY, FOG LAMP
84160-55021

BJ4#,FJ4#,HJ45

 1
84160-60020

FJ4#,HJ45

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-60030

FJ4#,55,HJ45

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-60030

FJ4#,55,HJ45

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-20031

BJ4#,FJ4#,55,HJ45

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-20031

BJ4#,FJ4#,55,HJ45

 1
84510 - SWITCH ASSY, STARTER
84510-36051

BJ4#,HJ45

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-60051

FJ4#,55,HJ45

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84650-60051

FJ4#,55,HJ45

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-60021

FJ4#,55,HJ45

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-60021

FJ4#,55,HJ45

 1
84730 - SWITCH ASSY, HEATER BLOWER
87290-60031

FJ4#,HJ45

FRONT

 1
84730 - SWITCH ASSY, HEATER BLOWER
87290-60031

FJ4#,HJ45

FRONT

 1
84730 - SWITCH ASSY, HEATER BLOWER
87290-60031

FJ4#,HJ45

FRONT

 1
84730 - SWITCH ASSY, HEATER BLOWER
87290-60031

FJ4#,HJ45

FRONT

 1
Common parts
75327-90500
90183-03002
93315-14012
93316-14008
93319-13010
93319-13012
93319-14010
93319-14025

(6903-8007)BJ4#,FJ4#,HJ45

Click highlighted areas on diagram

diagram 1215710010 82910 82940 82951 82954 83320 83361 83390 84001 84210 84220 84620 9011908157 9036010003 9161140616 9165140816 9331914008 9331914010 9331914010 9411040600 9411040800 9411540400 9451100800 9461110800
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-35020

FJ4#,HJ45

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20020

FJ4#,HJ45

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-30021

FJ40,43,45,55

3-SPEED,COLUMN SHIFT

 1
84210-20012

BJ4#,FJ4#,55,HJ45

4-SPEED,FLOOR SHIFT

 1
84620 - SWITCH ASSY, FRONT DRIVE INDICATOR
84610-30020

BJ4#,FJ40,43,45,55

 1
Common parts
12157-10010
90119-08157
90360-10003
91611-40616
91651-40816
93319-14008
93319-14010
94110-40600
94110-40800
94115-40400
94511-00800
94611-10800
