8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

HDJ80R-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jul 1994

Engine 1HDT

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

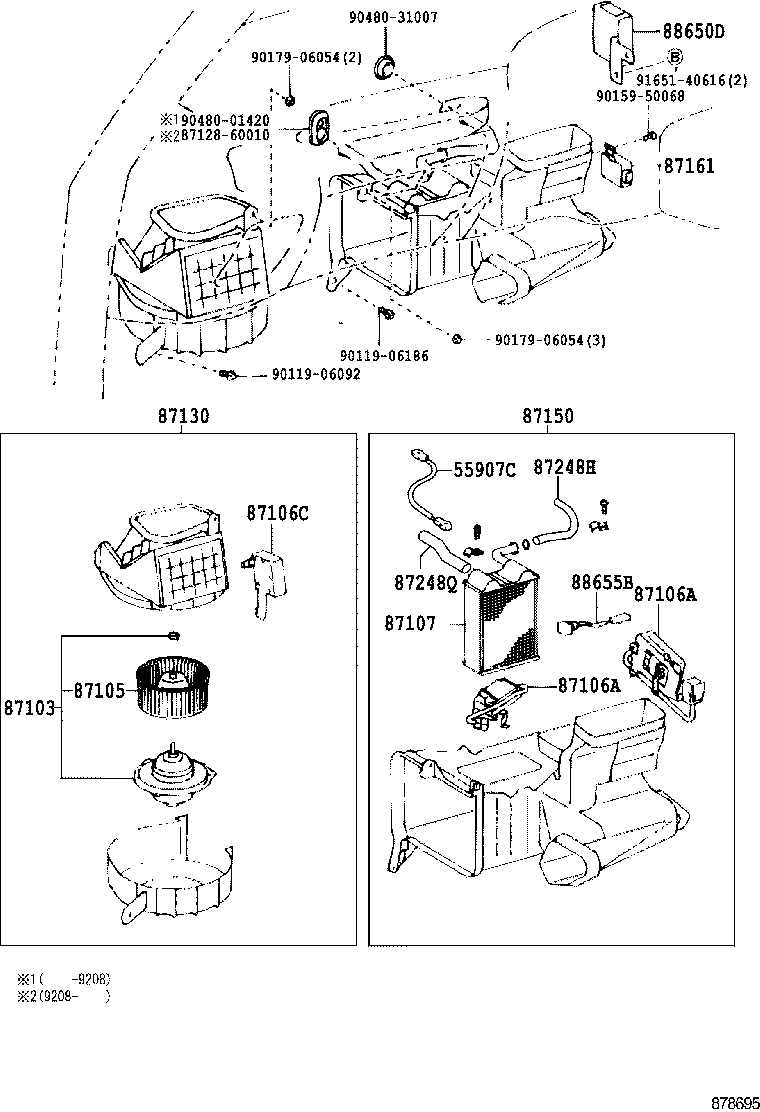

ILLUST NO. 1 OF 2(9001- )RHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-60120	FZJ80,HDJ80..RHD	01/1990 - 03/1997	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20100	FZJ80,HDJ80..RHD	01/1990 - 01/1998	1
87106A - SERVO SUB-ASSY, DAMPER
87106-60030	FZJ80,HDJ80..RHD MODE	01/1990 - 01/1998	1
87106-60050	FZJ80,HDJ80..RHD AIR MIX	01/1990 - 01/1998	1
87106A - SERVO SUB-ASSY, DAMPER
87106-60030	FZJ80,HDJ80..RHD MODE	01/1990 - 01/1998	1
87106-60050	FZJ80,HDJ80..RHD AIR MIX	01/1990 - 01/1998	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-60010	FZJ80,HDJ80..RHD	01/1990 - 01/1998	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-60120	HDJ80..RHD COLD SPEC	01/1990 - 08/1991	1
87107-60180	HDJ80..RHD COLD SPEC	01/1992 - 07/1994	1
87107-60120	HDJ80..RHD COLD SPEC	08/1991 - 01/1992	1
87107-60110	HDJ80..RHD	01/1990 - 01/1992	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-60220	FZJ80,HDJ80..RHD	01/1990 - 01/1998	1
87150 - RADIATOR ASSY, HEATER
87150-60350	HDJ80..RHD	01/1992 - 07/1994	1
87150-60160	HDJ80..RHD COLD SPEC	01/1990 - 08/1991	1
87150-60160	HDJ80..RHD COLD SPEC	08/1991 - 01/1992	1
87150-60150	HDJ80..RHD	01/1990 - 01/1992	1
87150-60360	HDJ80..RHD COLD SPEC	01/1992 - 07/1994	1
87161 - AMPLIFIER, HEATER SERVO MOTOR
87161-60010	FZJ80,HDJ80..RHD	01/1990 - 01/1998	1
87248H - PIPE, HEATER WATER INLET
87248-60410	FZJ80,HDJ80..RHD	01/1990 - 05/1996	1
88650D - AMPLIFIER ASSY
88650-60091	HDJ80..RHD	03/1990 - 08/1992	1
88650-60090	HDJ80..RHD	01/1990 - 03/1990	1
88655B - SWITCH, WATER TEMPERATURE
88790-60030	FJ80,FZJ80,HDJ80..VX	01/1990 - 08/1996	1
Common parts
87128-60010
90119-06092
90119-06186
90159-50068
90179-06054
90480-01420
90480-31007
91651-40616

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-60250	FJ80,HDJ80..VX	08/1991 - 01/1992	1
87104-60250	FJ80,HDJ80,HZJ80	01/1990 - 08/1991	1
87104-60250	HDJ80..VX	01/1992 - 08/1992	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002	FJ80,HDJ80..VX	08/1991 - 01/1992	1
87105-87002	HDJ80..VX	01/1992 - 08/1992	1
87105-87002	FJ80,HDJ80,HZJ80	01/1990 - 08/1991	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-60160	FJ80,HDJ80,HZJ80	01/1990 - 08/1991	1
87107-60160	FJ80,HDJ80..VX	08/1991 - 01/1992	1
87107-60160	HDJ80..VX	01/1992 - 08/1992	1
87110 - HEATER ASSY
87110-60110	FJ80,HDJ80..VX	08/1991 - 01/1992	1
87110-60110	FJ80,HDJ80,HZJ80	01/1990 - 08/1991	1
87110-60110	HDJ80..VX	01/1992 - 08/1992	1
87138R - RESISTOR, REAR HEATER BLOWER
87138-90K02	HDJ80..VX	01/1992 - 08/1992	1
87138-90K02	FJ80,HDJ80,HZJ80	01/1990 - 08/1991	1
87138-90K02	FJ80,HDJ80..VX	08/1991 - 01/1992	1
Common parts
90119-06092
90179-06054
