HDJ80R-GNMEXW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jul 1994
Engine
1HDT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

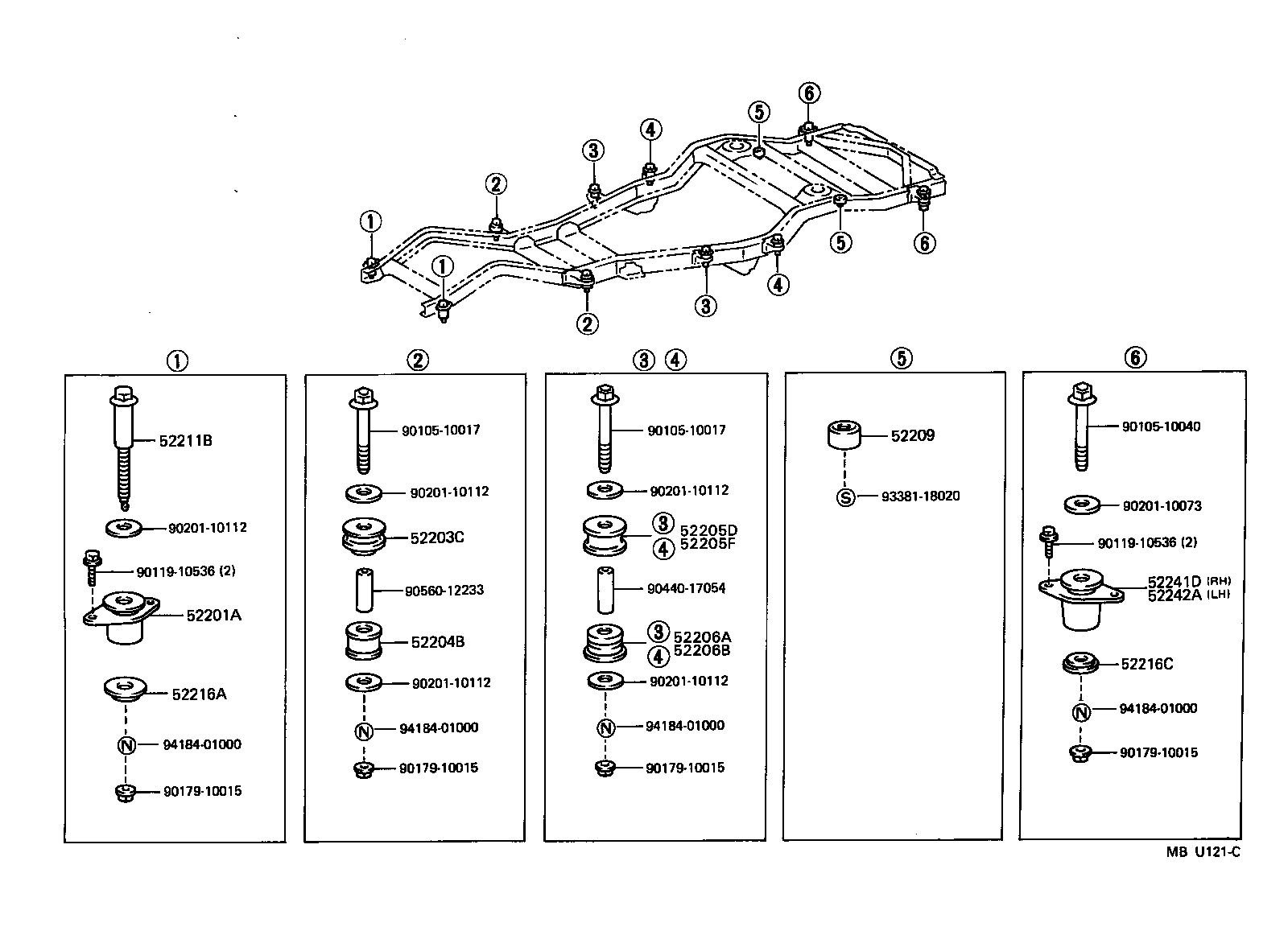

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-60020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 52203C - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER | ||||
| 52203-60041 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-60060 |
FJ80,HDJ80,HZJ80 RH |
1 | ||
| 52204-60041 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 52204-60042 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52205-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 52205F - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER | ||||
| 52205-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 52206A - CUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER | ||||
| 52206-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 52206B - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER | ||||
| 52206-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 52209 - CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER | ||||
| 52209-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-10139 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-35010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 52216C - STOPPER, CAB MOUNTING CUSHION | ||||
| 90561-10014 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 52241D - CUSHION, CAB REAR MOUNTING, RH | ||||
| 52241-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 52242A - CUSHION, CAB REAR MOUNTING, LH | ||||
| 52242-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90105-10017 | ||||
| 90105-10040 | ||||
| 90119-10536 | ||||
| 90179-10015 | ||||
| 90201-10073 | ||||
| 90201-10112 | ||||
| 90440-17054 | ||||
| 90560-12233 | ||||
| 93381-18020 | ||||
| 94184-01000 | ||||
