HDJ80R-GNMEXW (1990)
Toyota Land Cruiser
(9001- )

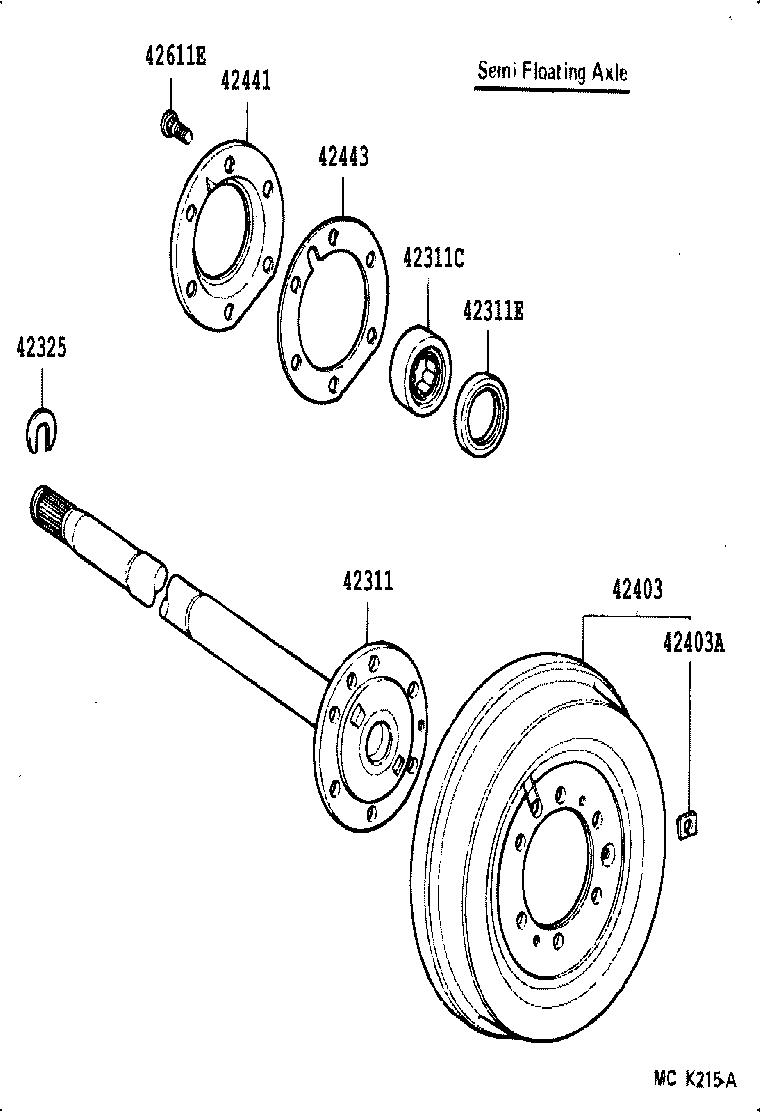

SEMI FLOATING AXLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42312-60090 |
HDJ80..MTM W(*RDL & *FFA),LH |
1 | ||
| 42311-60110 |
HDJ80..MTM W(*RDL & *FFA),RH |
1 | ||
| 42311-60110 |
HDJ80..MTM W(*RDL & *FFA),RH |
1 | ||
| 42312-60090 |
HDJ80..MTM W(*RDL & *FFA),LH |
1 | ||
| 42311-60110 |
HDJ80..MTM W(*RDL & *FFA),RH |
1 | ||
| 42311-60100 |
FJ80,HDJ80,HZJ80 W(*FFA),RH |
1 | ||
| 42311-60090 |
FJ80,HDJ80,HZJ80 RH |
1 | ||
| 42312-60080 |
FJ80,HDJ80,HZJ80 LH |
1 | ||
| 42312-60090 |
HDJ80..MTM W(*RDL & *FFA),LH |
1 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90368-49084 |
HDJ80..MTM W(*FFA) |
2 | ||
| 90368-49084 |
HDJ80..MTM W(*FFA) |
2 | ||
| 90365-47013 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 90368-49084 |
HDJ80..MTM W(*FFA) |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90310-35001 |
HDJ80..MTM W(*RDL & *FFA) |
2 | ||
| 90310-35001 |
HDJ80..MTM W(*RDL & *FFA) |
2 | ||
| 90311-47001 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 90310-35001 |
HDJ80..MTM W(*RDL & *FFA) |
2 | ||
| 42325 - LOCK, REAR AXLE SHAFT | ||||
| 42325-55010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-60140 |
FJ80,HDJ80,HZJ80 W(FULL FLOATING) |
2 | ||
| 42431-60070 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01118 |
HDJ80..MTM 20G,W(*FFA) |
1 | ||
| 90937-01117 |
HDJ80..MTM 10G,W(*FFA) |
1 | ||
| 90937-01119 |
HDJ80..MTM 30G,W(*FFA) |
1 | ||
| 90937-01196 |
HDJ80..MTM 50G,W(*FFA) |
1 | ||
| 90937-01119 |
FJ80,HDJ80,HZJ80 30G |
1 | ||
| 90937-01195 |
HDJ80..MTM 40G,W(*FFA) |
1 | ||
| 90937-01197 |
HDJ80..MTM 60G,W(*FFA) |
1 | ||
| 90937-01118 |
FJ80,HDJ80,HZJ80 20G |
1 | ||
| 90937-01413 |
FJ80,HDJ80,HZJ80 70G,W(*FFA) |
1 | ||
| 90937-01195 |
FJ80,HDJ80,HZJ80 40G |
1 | ||
| 90937-01117 |
FJ80,HDJ80,HZJ80 10G |
1 | ||
| 90937-01415 |
FJ80,HDJ80,HZJ80 90G,W(*FFA) |
1 | ||
| 90937-01417 |
FJ80,HDJ80,HZJ80 110G,W(*FFA) |
1 | ||
| 90937-01196 |
FJ80,HDJ80,HZJ80 50G |
1 | ||
| 90937-01118 |
HDJ80..MTM 20G,W(*FFA) |
1 | ||
| 90937-01418 |
FJ80,HDJ80,HZJ80 120G,W(*FFA) |
1 | ||
| 90937-01119 |
HDJ80..MTM 30G,W(*FFA) |
1 | ||
| 90937-01117 |
HDJ80..MTM 10G,W(*FFA) |
1 | ||
| 90937-01416 |
FJ80,HDJ80,HZJ80 100G,W(*FFA) |
1 | ||
| 90937-01414 |
FJ80,HDJ80,HZJ80 80G,W(*FFA) |
1 | ||
| 90937-01195 |
HDJ80..MTM 40G,W(*FFA) |
1 | ||
| 90937-01197 |
FJ80,HDJ80,HZJ80 60G |
1 | ||
| 90937-01197 |
HDJ80..MTM 60G,W(*FFA) |
1 | ||
| 90937-01196 |
HDJ80..MTM 50G,W(*FFA) |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-30010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 42441-30010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-55020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 42443-55020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02052 |
FJ80,FZJ80,HDJ80,HZJ80 |
6 | ||
(9001- )

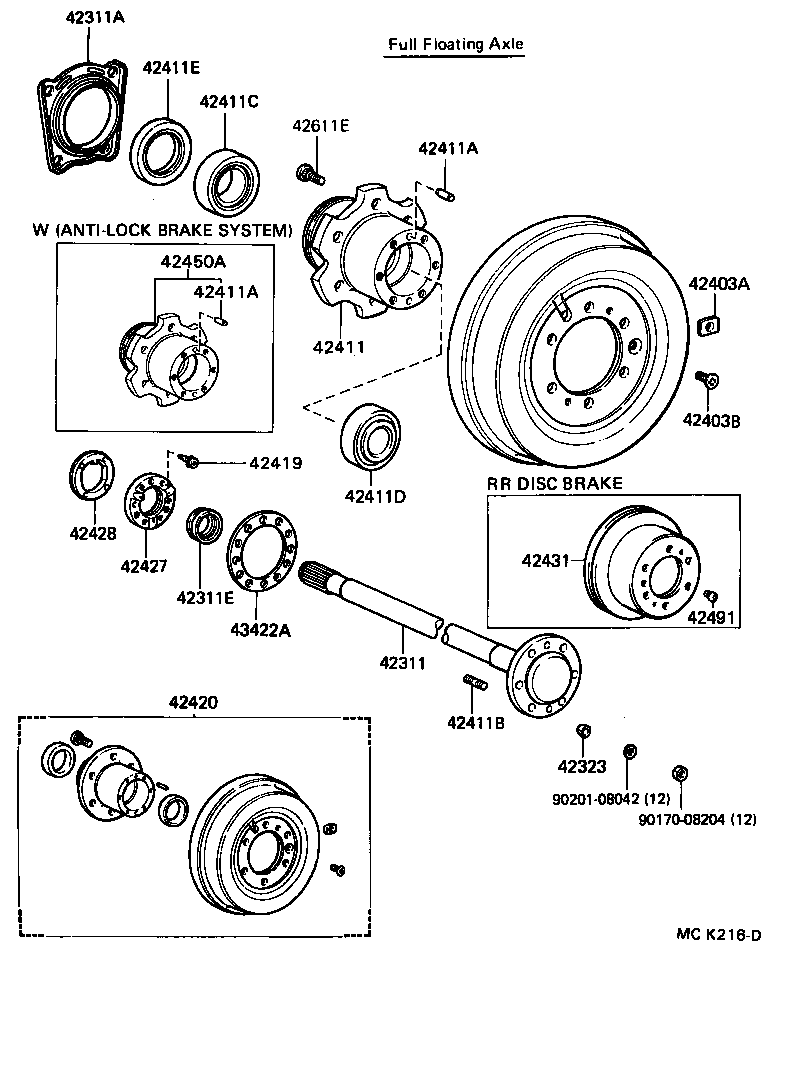

FULL FLOATING AXLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42312-60090 |
HDJ80..MTM W(*RDL & *FFA),LH |
1 | ||
| 42311-60110 |
HDJ80..MTM W(*RDL & *FFA),RH |
1 | ||
| 42311-60110 |
HDJ80..MTM W(*RDL & *FFA),RH |
1 | ||
| 42312-60090 |
HDJ80..MTM W(*RDL & *FFA),LH |
1 | ||
| 42311-60110 |
HDJ80..MTM W(*RDL & *FFA),RH |
1 | ||
| 42311-60100 |
FJ80,HDJ80,HZJ80 W(*FFA),RH |
1 | ||
| 42311-60090 |
FJ80,HDJ80,HZJ80 RH |
1 | ||
| 42312-60080 |
FJ80,HDJ80,HZJ80 LH |
1 | ||
| 42312-60090 |
HDJ80..MTM W(*RDL & *FFA),LH |
1 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90310-35001 |
HDJ80..MTM W(*RDL & *FFA) |
2 | ||
| 90310-35001 |
HDJ80..MTM W(*RDL & *FFA) |
2 | ||
| 90311-47001 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 90310-35001 |
HDJ80..MTM W(*RDL & *FFA) |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
12 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01118 |
HDJ80..MTM 20G,W(*FFA) |
1 | ||
| 90937-01117 |
HDJ80..MTM 10G,W(*FFA) |
1 | ||
| 90937-01119 |
HDJ80..MTM 30G,W(*FFA) |
1 | ||
| 90937-01196 |
HDJ80..MTM 50G,W(*FFA) |
1 | ||
| 90937-01119 |
FJ80,HDJ80,HZJ80 30G |
1 | ||
| 90937-01195 |
HDJ80..MTM 40G,W(*FFA) |
1 | ||
| 90937-01197 |
HDJ80..MTM 60G,W(*FFA) |
1 | ||
| 90937-01118 |
FJ80,HDJ80,HZJ80 20G |
1 | ||
| 90937-01413 |
FJ80,HDJ80,HZJ80 70G,W(*FFA) |
1 | ||
| 90937-01195 |
FJ80,HDJ80,HZJ80 40G |
1 | ||
| 90937-01117 |
FJ80,HDJ80,HZJ80 10G |
1 | ||
| 90937-01415 |
FJ80,HDJ80,HZJ80 90G,W(*FFA) |
1 | ||
| 90937-01417 |
FJ80,HDJ80,HZJ80 110G,W(*FFA) |
1 | ||
| 90937-01196 |
FJ80,HDJ80,HZJ80 50G |
1 | ||
| 90937-01118 |
HDJ80..MTM 20G,W(*FFA) |
1 | ||
| 90937-01418 |
FJ80,HDJ80,HZJ80 120G,W(*FFA) |
1 | ||
| 90937-01119 |
HDJ80..MTM 30G,W(*FFA) |
1 | ||
| 90937-01117 |
HDJ80..MTM 10G,W(*FFA) |
1 | ||
| 90937-01416 |
FJ80,HDJ80,HZJ80 100G,W(*FFA) |
1 | ||
| 90937-01414 |
FJ80,HDJ80,HZJ80 80G,W(*FFA) |
1 | ||
| 90937-01195 |
HDJ80..MTM 40G,W(*FFA) |
1 | ||
| 90937-01197 |
FJ80,HDJ80,HZJ80 60G |
1 | ||
| 90937-01197 |
HDJ80..MTM 60G,W(*FFA) |
1 | ||
| 90937-01196 |
HDJ80..MTM 50G,W(*FFA) |
1 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10003 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 42411 - HUB, REAR AXLE | ||||
| 42411-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 42411-60030 |
FZJ80,HDJ80 W(*66) |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-07057 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-07057 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-08325 |
FJ80,FZJ80,HDJ80,HZJ80 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-49084 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-45087 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-62002 |
HDJ80..RHD..MTM W(LSD) |
2 | ||
| 90311-62001 |
HDJ80..MTM W(*RDL) |
2 | ||
| 90311-62002 |
HDJ80..MTM W(LSD) |
2 | ||
| 90311-62001 |
HDJ80..MTM W(*RDL) |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-60130 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-60011 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-60080 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02052 |
FJ80,FZJ80,HDJ80,HZJ80 |
6 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60050 |
FJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
