HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(9001-9501)HDJ80,HZJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-35030 |
HDJ80,HZJ80..LHD |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-35020 |
HDJ80,HZJ80..LHD |
1 | ||
| 88411-2B080 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT |
1 | ||
| 88411-35030 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT |
1 | ||
| 88411-22310 |
HDJ80,HZJ80..LHD |
1 | ||
| 88411-2B080 |
HDJ80,HZJ80 SINGLE DEALER OPT |
1 | ||
| 88411-2B080 |
HDJ80,HZJ80..LHD |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60340 |
HDJ80,HZJ80..LHD |
1 | ||
| 88320-60560 |
HDJ80,HZJ80..LHD |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
HDJ80,HZJ80..LHD |
1 | ||
| 88335-14020 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
HDJ80,HZJ80 SINGLE DEALER OPT |
1 | ||
| 88403-16011 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT |
1 | ||
| 88403-30290 |
HDJ80,HZJ80..LHD |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-60310 |
HDJ80,HZJ80..LHD |
1 | ||
| 88410-35120 |
HDJ80,HZJ80..LHD |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60150 |
HDJ80,HZJ80..LHD |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-60100 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT |
1 | ||
| 88444-60100 |
HDJ80,HZJ80 SINGLE AIR CONDITIONER |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60030 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 88446-60030 |
HDJ80,HZJ80..LHD |
1 | ||
| 88446-60030 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
HDJ80,HZJ80..LHD |
1 | ||
| 88440-60040 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT |
1 | ||
| 88440-60040 |
HDJ80,HZJ80..LHD SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88899-60080 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-10253 | ||||
| 91511-B1025 | ||||

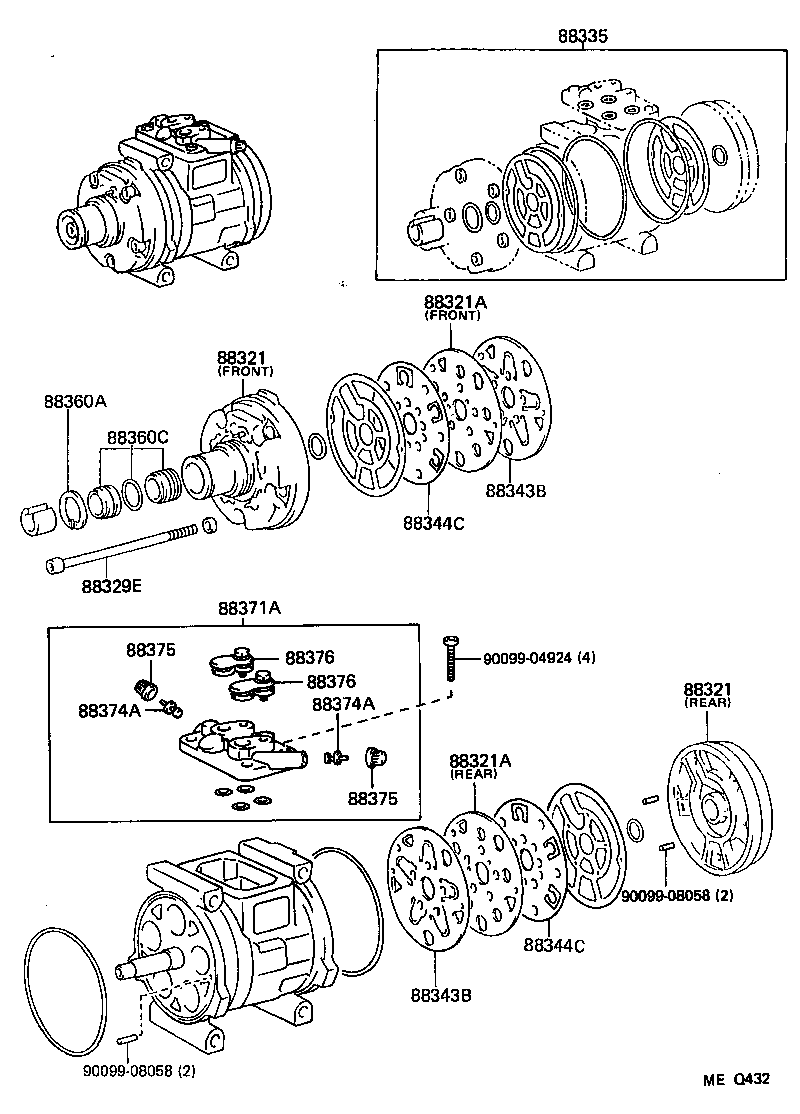

ILLUST NO. 2 OF 2(9001- )HDJ80,HZJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
FJ80,HDJ80,HZJ80..LHD REAR |
1 | ||
| 88321-14021 |
FJ80,HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88321-14021 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88322-14020 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88322-32040 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88321-32010 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
FJ80,HDJ80,HZJ80..LHD REAR |
1 | ||
| 88321-14021 |
FJ80,HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88321-14021 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88322-14020 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88322-32040 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88321-32010 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14030 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT,REAR |
1 | ||
| 88306-14020 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88305-14020 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88341-14040 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT,FRONT |
1 | ||
| 88342-14020 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88341-14020 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88342-22010 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88341-22010 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88305-14020 |
HDJ80,HZJ80 SINGLE DEALER OPT,FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14030 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT,REAR |
1 | ||
| 88306-14020 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88305-14020 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88341-14040 |
HDJ80,HZJ80..LHD SINGLE DEALER OPT,FRONT |
1 | ||
| 88342-14020 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88341-14020 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88342-22010 |
HDJ80,HZJ80..LHD REAR |
1 | ||
| 88341-22010 |
HDJ80,HZJ80..LHD FRONT |
1 | ||
| 88305-14020 |
HDJ80,HZJ80 SINGLE DEALER OPT,FRONT |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04370 |
HDJ80,HZJ80 |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
HDJ80,HZJ80..LHD |
1 | ||
| 88335-14010 |
HDJ80,HZJ80 SINGLE DEALER OPT |
1 | ||
| 88335-14010 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 88335-2B010 |
HDJ80,HZJ80..LHD |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
HDJ80,HZJ80..LHD |
2 | ||
| 88343-14020 |
FJ80,HDJ80,HZJ80..LHD |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
HDJ80,HZJ80..LHD |
2 | ||
| 88343-14020 |
FJ80,HDJ80,HZJ80..LHD |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14020 |
HDJ80,HZJ80..LHD |
2 | ||
| 88344-14022 |
HZJ80..MTM;HDJ80..LHD..VX SINGLE DEALER OPT |
1 | ||
| 88344-22010 |
HDJ80,HZJ80..LHD |
2 | ||
| 88344-14022 |
HDJ80,HZJ80 SINGLE DEALER OPT |
2 | ||
| 88344-14022 |
HDJ80,HZJ80..LHD |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14020 |
HDJ80,HZJ80..LHD |
2 | ||
| 88344-14022 |
HZJ80..MTM;HDJ80..LHD..VX SINGLE DEALER OPT |
1 | ||
| 88344-22010 |
HDJ80,HZJ80..LHD |
2 | ||
| 88344-14022 |
HDJ80,HZJ80 SINGLE DEALER OPT |
2 | ||
| 88344-14022 |
HDJ80,HZJ80..LHD |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 90096-90022 |
HDJ80,HZJ80..LHD |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 88360-14030 |
HDJ80,HZJ80..LHD |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-60210 |
HDJ80,HZJ80..LHD |
1 | ||
| 88371-60210 |
HDJ80,HZJ80 SINGLE DEALER OPT |
1 | ||
| 88371-60300 |
HDJ80,HZJ80..LHD |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
FJ80,HDJ80,HZJ80..LHD |
2 | ||
| 88374-12020 |
HDJ80,HZJ80..LHD |
2 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
FJ80,HDJ80,HZJ80..LHD |
2 | ||
| 88374-12020 |
HDJ80,HZJ80..LHD |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
FJ80,HDJ80,HZJ80..LHD DISCHARGE |
1 | ||
| 88375-30270 |
HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88375-30270 |
FJ80,HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88375-20010 |
HDJ80,HZJ80..LHD DISCHARGE |
1 | ||
| 88375-20010 |
HDJ80,HZJ80 DIS CHARGE,DISCHARGE |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
FJ80,HDJ80,HZJ80..LHD DISCHARGE |
1 | ||
| 88375-30270 |
HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88375-30270 |
FJ80,HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88375-20010 |
HDJ80,HZJ80..LHD DISCHARGE |
1 | ||
| 88375-20010 |
HDJ80,HZJ80 DIS CHARGE,DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
FJ80,HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88376-22010 |
HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88376-22020 |
FJ80,HDJ80,HZJ80..LHD DISCHARGE |
1 | ||
| 88376-22020 |
HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88376-22010 |
HDJ80,HZJ80 DIS CHARGE,DISCHARGE |
1 | ||
| 88376-22020 |
HDJ80,HZJ80..LHD DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
FJ80,HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88376-22010 |
HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88376-22020 |
FJ80,HDJ80,HZJ80..LHD DISCHARGE |
1 | ||
| 88376-22020 |
HDJ80,HZJ80..LHD SUCTION |
1 | ||
| 88376-22010 |
HDJ80,HZJ80 DIS CHARGE,DISCHARGE |
1 | ||
| 88376-22020 |
HDJ80,HZJ80..LHD DISCHARGE |
1 | ||
| Common parts | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
