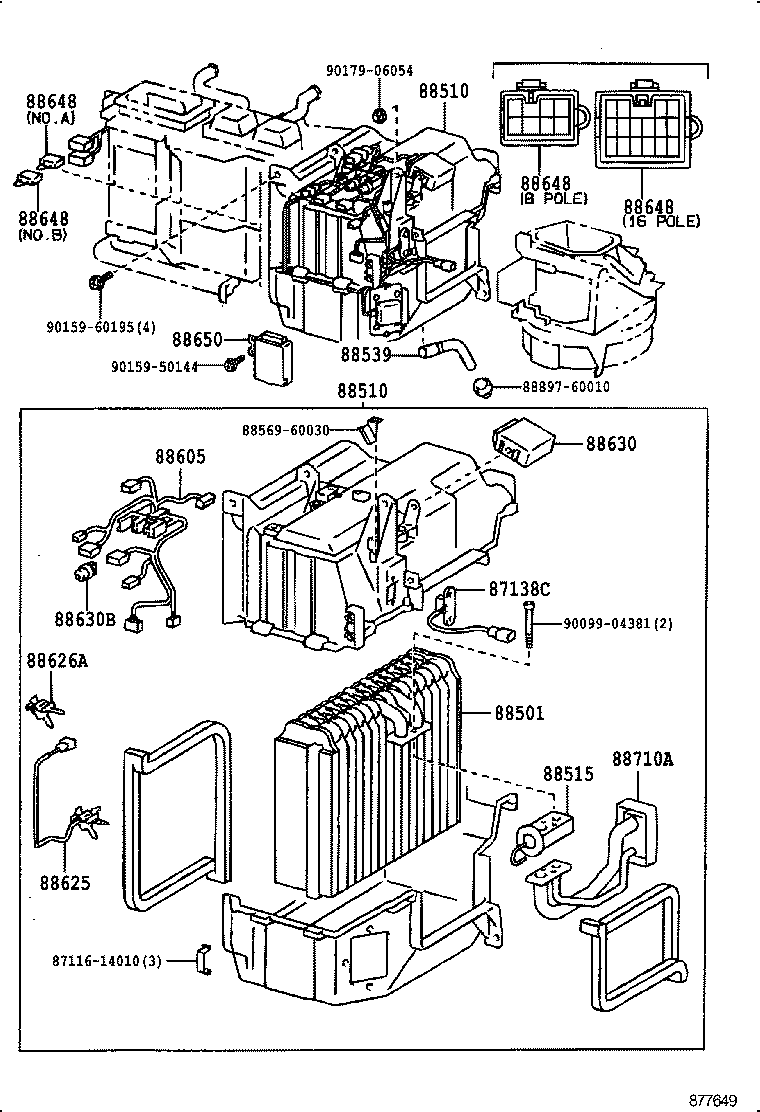

Toyota Land cruiser HDJ80 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-60220	FJ80,FZJ80,HDJ80,HZJ80..LHD	01/1992 - 01/1995	1
87138-60220	HDJ80,HZJ80..LHD	01/1990 - 01/1992	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60030	HDJ80..LHD..ATM..VX	01/1990 - 08/1992	1
88501-60100	HDJ80,HZJ80..LHD	05/1993 - 05/1994	1
88501-60101	HDJ80,HZJ80..LHD	05/1994 - 01/1995	1
88501-60030	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88510 - UNIT ASSY, COOLER
88510-60410	HDJ80..LHD..ATM..VX AUTO AIR CONDITIONER	01/1990 - 08/1992	1
88510-60550	FZJ80,HDJ80,HZJ80..LHD DEALER OPT	05/1993 - 01/1995	1
88510-60460	FJ80,FZJ80,HDJ80,HZJ80..LHD DEALER OPT	01/1990 - 05/1993	1
88510-60410	FZJ80,HDJ80..LHD..VX MAKER OPT	08/1992 - 05/1993	1
88510 - UNIT ASSY, COOLER
88510-60410	HDJ80..LHD..ATM..VX AUTO AIR CONDITIONER	01/1990 - 08/1992	1
88510-60550	FZJ80,HDJ80,HZJ80..LHD DEALER OPT	05/1993 - 01/1995	1
88510-60460	FJ80,FZJ80,HDJ80,HZJ80..LHD DEALER OPT	01/1990 - 05/1993	1
88510-60410	FZJ80,HDJ80..LHD..VX MAKER OPT	08/1992 - 05/1993	1
88515 - VALVE, COOLER EXPANSION
88515-14062	HDJ80..LHD..ATM..VX	01/1990 - 08/1992	1
88515-14062	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88515-20100	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-60080	HDJ80,HZJ80..LHD SINGLE AIR CONDITIONER	01/1990 - 01/1995	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60610	FJ80,FZJ80,HDJ80..LHD..VX SINGLE DEALER OPT	01/1990 - 01/1998	1
88605-60510	HDJ80..LHD..ATM..VX	01/1990 - 08/1992	1
88625 - THERMISTOR, COOLER, NO.1
88625-60050	HDJ80,HZJ80..LHD	08/1992 - 01/1995	1
88625-60050	HDJ80..LHD..ATM..VX	02/1992 - 08/1992	1
88626-60010	HDJ80..LHD..ATM..VX W(BOOST VENTILAT0R) OR W(FR+RR HEATER & SINGLE AIR CONDITIONER	01/1990 - 02/1992	1
88625-60050	FJ80,HDJ80,HZJ80..LHD SINGLE DEALER OPT	01/1990 - 02/1992	1
88626A - HOLDER, THERMISTOR
88626-28010	HDJ80,HZJ80	08/1992 - 01/1995	1
88630 - RELAY ASSY, COOLER
88630-20020	FZJ80,HDJ80..VX	08/1992 - 02/1994	1
88630-20020	HDJ80..VX NO.2	01/1990 - 08/1992	1
88630B - RELAY ASSY, COOLER
90987-03001	HDJ80,HZJ80..LHD	01/1990 - 01/1992	1
90987-03001	FJ80,FZJ80,HDJ80,HZJ80..LHD	01/1992 - 01/1995	1
88648 - WIRING, COOLER, NO.1
88648-60030	HDJ80..LHD..VX 8 POLE	01/1990 - 01/1992	1
88648-60020	HDJ80..LHD..VX 16 POLE	01/1990 - 01/1992	1
88648 - WIRING, COOLER, NO.1
88648-60030	HDJ80..LHD..VX 8 POLE	01/1990 - 01/1992	1
88648-60020	HDJ80..LHD..VX 16 POLE	01/1990 - 01/1992	1
88648 - WIRING, COOLER, NO.1
88648-60030	HDJ80..LHD..VX 8 POLE	01/1990 - 01/1992	1
88648-60020	HDJ80..LHD..VX 16 POLE	01/1990 - 01/1992	1
88648 - WIRING, COOLER, NO.1
88648-60030	HDJ80..LHD..VX 8 POLE	01/1990 - 01/1992	1
88648-60020	HDJ80..LHD..VX 16 POLE	01/1990 - 01/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-60060	FJ80,HDJ80,HZJ80..LHD MANUAL AIR CONDITIONER	01/1990 - 01/1992	1
88650-60060	HDJ80,HZJ80..LHD MANUAL AIR CONDITIONER	01/1992 - 01/1995	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-60230	FJ80,HDJ80,HZJ80..LHD	01/1990 - 12/1991	1
88710-60230	HDJ80,HZJ80..LHD	12/1991 - 08/1992	1
88710-60480	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88710-60230	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
Common parts
87116-14010
88569-60030
88897-60010
90099-04381
90159-50144
90159-60195
90179-06054

HDJ80L-GNPEXW (1990)

(9001- )LHD
